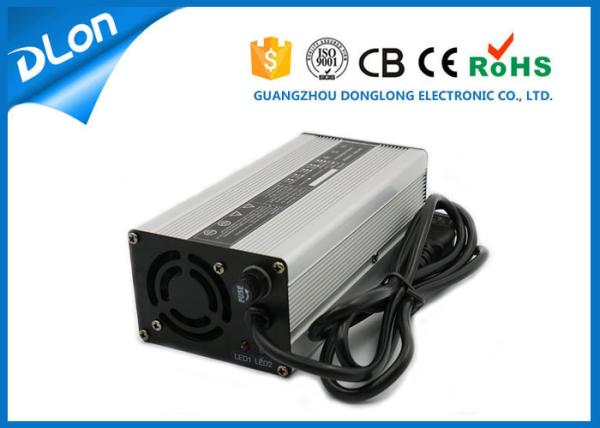

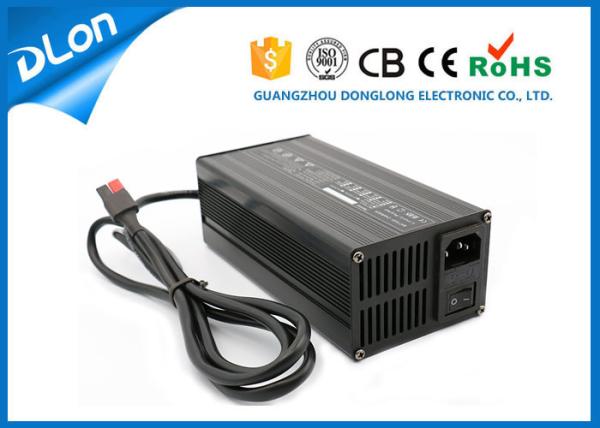

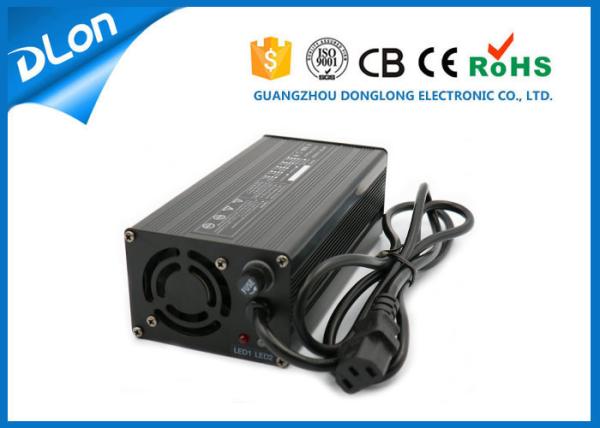

Automatic smart 4A 72v 20ah li-ion lifepo4 battery charger for electric scooter

Brief Description :

72V 20ah li ion lifepo4 battery charger is automatic smart charger for electric scooter or other electric tools, It is 0.2c , so 20ah is 4amp . The 72v li ion lifepo4 battery charger with 2 led indicator to show charging status. high efficiency and high saturation. Easy to use and convenience to take. Safety and multi protection. That will be good for prolonging your batteries' lives.

Feature :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 360 W

4. Charge mode : 2 stage CC CV mode for lifepo4 / li ion battery charger

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

Advantage :

1. full automatic transition of cc cv and cut-off (cc cv 2 stage charger)

2. Precise limit of voltage& current, guarantee fully charged and avoid over charger

3. Protections : short circuit, over voltage, over-temperature, reverse polarity protections, Dc output isolated from AC input

4. High Efficient : > 85% PFC :0.96 Eco-friendly

5. Two led indicators LED1 Red ( power on ), LED 2 Red/Green ( charging/full )

6. Safety and high quality, Advantage high frequency switching mode power supply technology

The 360w battery charger specification :

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

For more information about 72v 20ah li ion lifepo4 battery charger or other battery charger 12v 24v 36v 48v 60v 72v , welcome to contact us !
