72v 20a battery charger lipo / lifepo4 battery charger factory wholesale

Brief description :

72v 20a battery charger is automatic smart charger for lifepo4 , AGM ,GEL , Lead acid batteries 100ah, it is 0.2c so equal with 20amp. The 72v 20a battery charger can be used on electric car , electric vehicle , electric legal street , electric forklift, electric cruise car etc. The 72v battery charger with LED display show voltage and current, The current can be adjustment from 1amp to 20amp .

the 72 volt battery charger with multi-protection and led indicator, high efficiency and safety, that is good good for prolonging your batteries' lives !

Feature :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 1500W

4. Charge mode : 3 stage CC CV float mode for lead acid battery charger , 2 stage for lifepo4 battery charger

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

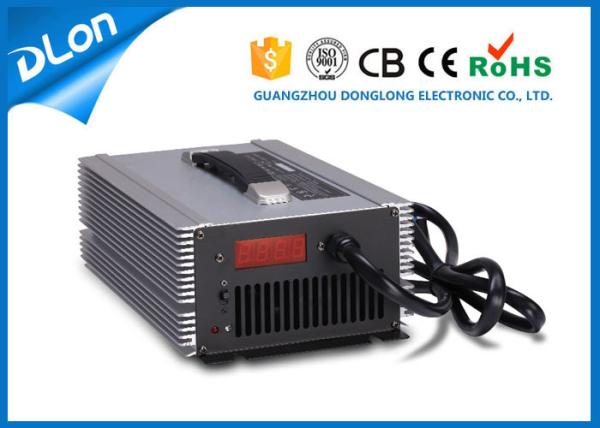

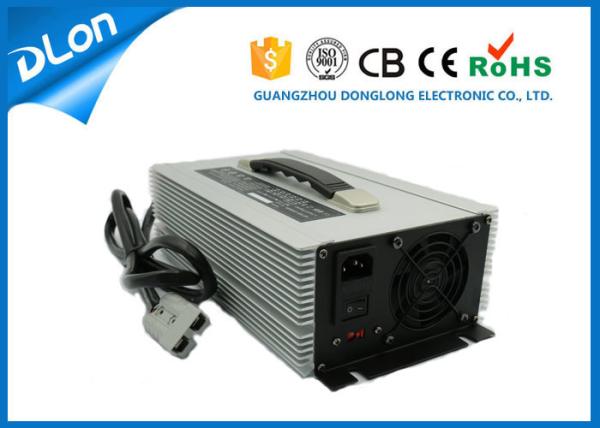

The 1500w 72v 20a battery charger pictures as follows :

The 1500w 12v 24v 36v 48v 60v 72v battery charger specification :

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Advantage :

1. full automatic transition of cc cv and float/ cut-off (cc cv 2 or 3 stage charger)

2. Precise limit of voltage& current, guarantee fully charged and avoid over charger

3. Protections : short circuit, over voltage, over-temperature, reverse polarity protections, Dc output isolated from AC input

4. High Efficient : > 85% PFC :0.96 Eco-friendly

5. Two led indicators LED1 Red ( power on ), LED 2 Red/Green ( charging/full )

6. Safety and high quality, Advantage high frequency switching mode power supply technology

7. LED display show current and voltage , convenience to know amp & voltage.

Charging Procedure :

1. First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
2. Then city power plug to socket , the indicator is red, charger will be into the charging state .
3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
4. When fully charged, disconnect the city power first, then disconnect the battery cable.

Package & Delivery

1. Package : one piece one neutral box , 2 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

For more information about our 72v 20 battery charger or other DL1500W battery chargers 12v 24v 36v 48v 60v 72v , welcome to contact us !
