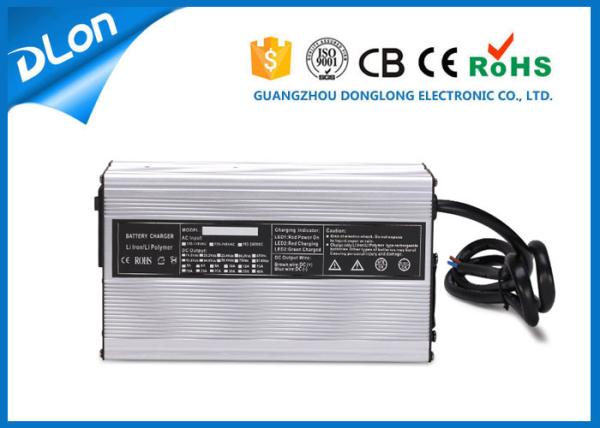

Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Portable and durable 600W high power li-ion battery charger li-polymer battery charger
Specifications
Brand Name :
DLON
Model Number :
DL600-24V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$60 ~ $70
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
210*120*70mm
Weight :
2.5kg
Input Voltage :
85VAC-250VAC
Max wattage :
600W
Ambient temperature :
-20 °C to +50°C
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Material :
Aluminum alloy shell
Description

Portable and durable 600W high power li-ion battery charger li-polymer battery charger

Brief description :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 600 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : DC jack, XLR, JST, Cigar Lighter, Alligator Clips etc

The 3-stage mode charging :

First stage ( constant current ) : The charger will supply constant current for the battery

Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant

voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.

Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will

cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.

The specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-MnO2 LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL600W-12V 14.7V 16.8V 14.6V 25A 5.0 1.25 2.5 210*120*70
DL600W-24V 29.4V 29.4V 29.2V 18A 3.6 0.9
DL600W-36V 44.1V 42.0V 43.8V 12A 2.4 0.6
DL600W-48V 58.8V 54.6V 58.4V 10A 2.0 0.5
DL600W-60V 73.5V 67.2V 73.0V 8A 1.6 0.4
DL600W-72V 88.2V 84V 87.6V 6A 1.2 0.3


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

Portable and durable 600W high power li-ion battery charger li-polymer battery chargerPortable and durable 600W high power li-ion battery charger li-polymer battery chargerPortable and durable 600W high power li-ion battery charger li-polymer battery chargerPortable and durable 600W high power li-ion battery charger li-polymer battery charger

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

Portable and durable 600W high power li-ion battery charger li-polymer battery charger

Portable and durable 600W high power li-ion battery charger li-polymer battery charger

Portable and durable 600W high power li-ion battery charger li-polymer battery charger

Portable and durable 600W high power li-ion battery charger li-polymer battery charger
