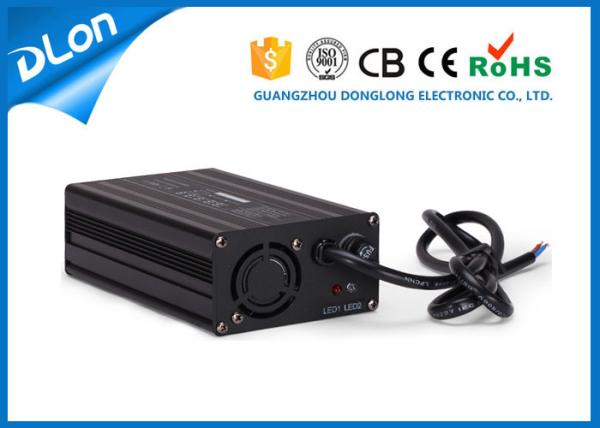

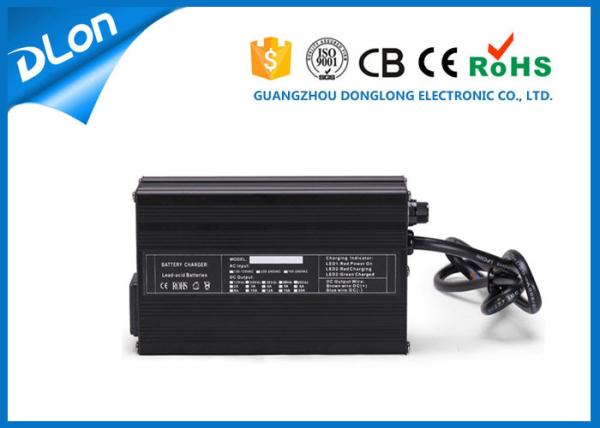

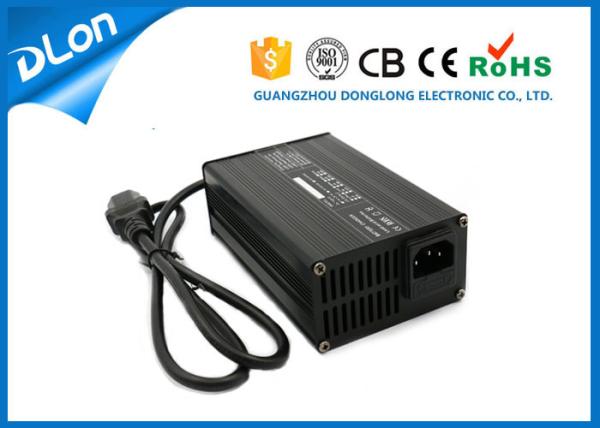

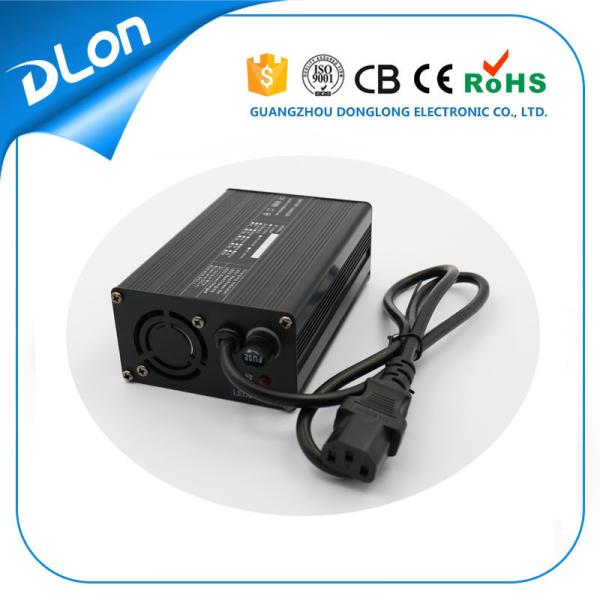

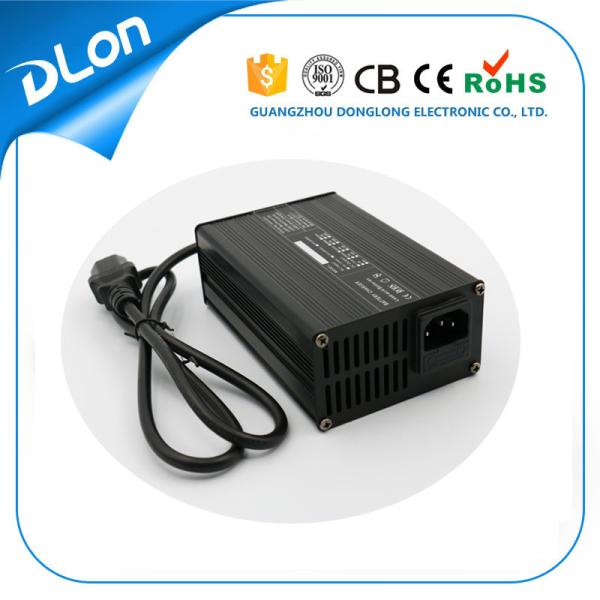

120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
120W lead acid battery charge 6A 12V Battery charger for electric bike
Specifications
Brand Name :
DLON
Model Number :
DL120-12V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$15.0 ~ $20.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

120W lead acid battery charge 6A 12V Battery charge for electric bike

Brief description :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

The 120W battery charger specification :

Nominal

Output Voltage

CV

CC

Transition / Cut-off Current

Net Weight

Size

Lead Acid

Li-MnO2

LiFePO4

A

Lead Acid (A)

Li(A)

(kg)

(mm)

DL120-12V

14.7V

16.8V

14.6V

6A

1.2

0.3

0.9

135*90*50

DL120-24V

29.4V

29.4V

29.2V

3A

0.8

0.2

DL120-36V

44.1V

42.0V

43.8V

2.5A

0.6

0.15

DL120-48V

58.8V

54.6V

58.4V

2A

0.4

0.10

Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

120W lead acid battery charge 6A 12V Battery charger for electric bike120W lead acid battery charge 6A 12V Battery charger for electric bike120W lead acid battery charge 6A 12V Battery charger for electric bike120W lead acid battery charge 6A 12V Battery charger for electric bike

120W lead acid battery charge 6A 12V Battery charger for electric bike120W lead acid battery charge 6A 12V Battery charger for electric bike120W lead acid battery charge 6A 12V Battery charger for electric bike

For more information about battery charger or other items, don't hesitate to contact me !!
