Specifications
Brand Name :
DLON
Model Number :
DL120-48V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
50 pcs
Price :
$15.0 ~ $20.00
Supply Ability :
10000 pcs per month
Packaging Details :
box and carton, 12 pcs/ carton
Size :
135*90*50mm
Weight :
0.9 Kg
Input Voltage :
85VAC-250VAC
Max wattage :
120W
Ambient temperature :
-20 °C to +50°C
Use :
charging for lead acid battery
Protection :
SCP,OVP,OCP,OTP
Application range :
scooter,E-bicycle,E-motorcycle,tourism bus,floor washer,golf cart etc
Warranty :
18 months
Description

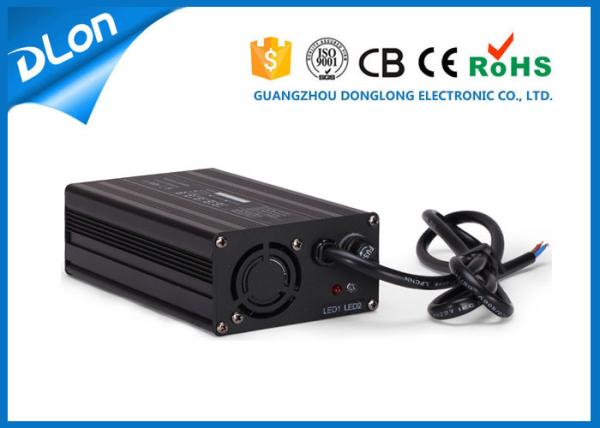

58.4V 2A Lithium ion Battery Charger for Electric bicycle/scooter/Trikes

Brief description :

1. Aluminium case , light weight

2. Input voltage ; DC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 120 W

4. Charge mode : 3 stage ( CC CV float mode )

5. Charging : High saturation and efficiency

The 120W battery charger specification :

Nominal

Output Voltage		 CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-ion LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL120-12V 14.7V 16.8V 14.6V 6A 1.2 0.3 0.9 135*90*50
DL120-24V 29.4V 29.4V 29.2V 4A 0.8 0.2
DL120-36V 44.1V 42.0V 43.8V 3A 0.6 0.15
DL120-48V 58.8V 54.6V 58.4V 2A 0.4 0.1


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

58.4V 2A Lithium ion Battery Charger for Electric bicycle/scooter/Segway/Trikes58.4V 2A Lithium ion Battery Charger for Electric bicycle/scooter/Segway/Trikes58.4V 2A Lithium ion Battery Charger for Electric bicycle/scooter/Segway/Trikes58.4V 2A Lithium ion Battery Charger for Electric bicycle/scooter/Segway/Trikes

Package & Delivery

1. Package : one piece one neutral box , 12 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

58.4V 2A Lithium ion Battery Charger for Electric bicycle/scooter/Segway/Trikes

58.4V 2A Lithium ion Battery Charger for Electric bicycle/scooter/Segway/Trikes

For more information about battery charger or other items, don't hesitate to contact me !!
