Specifications
Brand Name :
DLON
Model Number :
DL900-36V
Certification :
CE, RoHS
Place of Origin :
Guangzhou China
MOQ :
24 pcs
Price :
$89 ~ $99
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
10000 pcs per month
Delivery Time :
7 working days
Packaging Details :
box and carton, 4 pcs/ carton
Size :
230*135*70mm
Weight :
3.5kg
Input Voltage :
85VAC-250VAC
Max wattage :
900W
Ambient temperature :
-20 °C to +50°C
Protection :
SCP,OVP,OCP,OTP
Application range :
electric golf cart / electric vehicle / electric utility golf cart / farm golf cart / policy electric car
Warranty :
18 months
voltage¤t :
36v 18a
Color :
Black or silver
Batteries :
lithium / lifepo4 / lead acid batteries
batteries ah :
90ah to 180ah
Charging time :
5 hours to 10 hours
Description

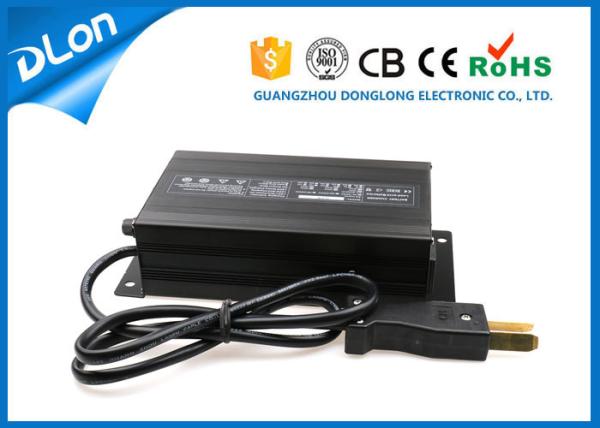

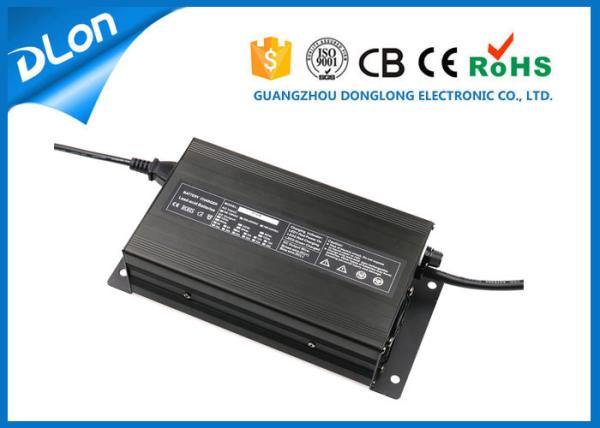

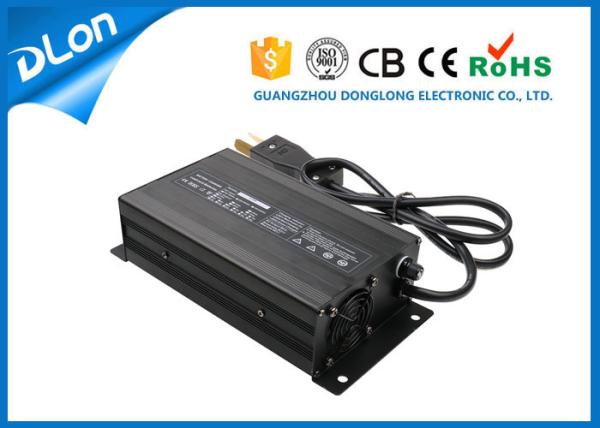

2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries

Brief introduction :

36v golf cart battery charger suitable for most of utility golf cart , electric farm cart , policy electric car , electric vehicle etc .It is durable high efficency automatic smart battery charger for lithium / lifepo4 / lead acid batteries 80ah to 180ah , over-voltage, over-temperature, short circuit , reverse polarity protection. 2 indicator , LED1 red light is power on , LED2 red light is charging , Green light is fulled charger. Easy to use and convenience to take out. It is good choose for your golf cart.

Feature :

1. Aluminium case , light weight

2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ

3. Max wattage : 900 W

4. Charge mode : 3 stage ( CC CV float mode ) for lead acid battery / 2 stage cc cv for lithium / lifepo4

5. Charging : High saturation and efficiency

6. Input plug(power cords) : EU US UK AUS Italy Plugs etc ( can be Customized)

7. Output Connector : Powerwise plug, 2-Prong crowfoot plug, Anderson connector etc

The 3-stage mode charging for lead acid batteries :

First stage ( constant current ) : The charger will supply constant current for the battery

Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.

Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.

The 900W 36V 18A battery charger specification :

Nominal

Output Voltage
CV CC Transition / Cut-off Current Net Weight Size
Lead Acid Li-ion LiFePO4 A Lead Acid (A) Li(A) (kg) (mm)
DL900W-12V 14.7V 16.8V 14.6V 40A 8.0 2.0 3.5 230*135*70
DL900W-24V 29.4V 29.4V 29.2V 25A 5.0 1.25
DL900W-36V 44.1V 42.0V 43.8V 18A 3.6 0.9
DL900W-48V 58.8V 54.6V 58.4V 15A 3.0 0.75
DL900W-60V 73.5V 67.2V 73.0V 12A 2.4 0.6
DL900W-72V 88.2V 84V 87.6V 10A 2.0 0.5


Note: Cut-off point for Li battery is 5% of CC, and it can be setted between 3-10%.

2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries

Charging Procedure :

  1. First output power charger wire ends are connected to the battery anode and cathode , the charge indicator turns green, the connection is correct, otherwise the charge in question, please check the actual situation.
  2. Then city power plug to socket , the indicator is red, charger will be into the charging state .
  3. When the indicator light turns to green, the battery is charged to 95% , If you want to reach 100% , keep charging for 1 to 2 hours before end of charge.
  4. When fully charged, disconnect the city power first, then disconnect the battery cable.

2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries

Package & Delivery

1. Package : one piece one neutral box , 4 pcs/ carton, can be customized

2. Delivery : 5 to 7 working days , big order according to actual quantity

3. Delivery port : Guangzhou port

4. Payment term : T/T or Western Union

5. Delivery way : by sea / by air / by express or as your requirement

2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries

2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries

2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries

2 crowfoot connector 36v golf cart battery charger 36v 18a for lead acid / lithium / lifepo4 batteries

For more information about 36v golf cart battery charger 36v 18a or other ezgo yamaha club car battery charger for golf cart , welcome to contact us !
