Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys

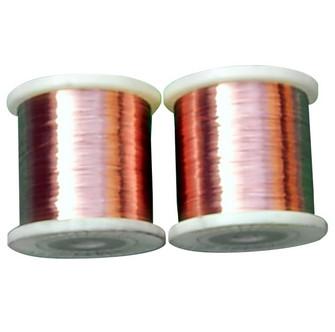

Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys
Specifications
Brand Name :
DLX
Model Number :
CuNi8
Place of Origin :
China Jiangsu
MOQ :
5
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 tons per month
Delivery Time :
7-20 days
Packaging Details :
Spool package with Carton box, Coil package with polybag
Material :
Nickel Copper
Nickel(Min) :
8%
Resistivity :
0.12
Tensile Strength :
270 MPA
Density :
8.9 g/cm3
Application :
Heating, Resistivity
Condition :
Hard / Soft
Sureface :
Bright
Maximum Temperature :
250℃
Melting Point :
1097℃
Certification :
CE,ROHS
Description

Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys


Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys

  • CuNi Series

Copper nickel alloy has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable.

  • Copper Nickel alloy performance tables
Properties/ Material Resistivity Max.working temperature Tensile strength Melting point Density TCR EMF vs Cu
( 200C μΩ.m) ( 0C ) ( Mpa ) ( 0C ) ( g/cm3 ) x10-6 / 0C (μV/ 0C)
(20~600 0C) (0~100 0C)
NC003 0.03 200 210 1085 8.9 <100 -8
(CuNi1)
NC005 0.05 200 220 1090 8.9 <120 -12
(CuNi2)
NC010 0.1 220 250 1095 8.9 <60 -18
(CuNi6)
NC012 0.12 250 270 1097 8.9 <57 -22
(CuNi8)
NC015 0.15 250 290 1100 8.9 <50 -25
(CuNi10)
NC020 0.2 300 310 1115 8.9 <30 -28
(CuNi14)
NC025 0.25 300 340 1135 8.9 <25 -32
(CuNi19)
NC030 0.3 300 350 1150 8.9 <16 -34
(CuNi23)
NC035 0.35 350 400 1170 8.9 <10 -37
(CuNi30)
NC040 0.4 350 400 1180 8.9 0 -39
(CuNi34)
NC050 0.5 400 420 1200 8.9 <-6 -43
(CuNi44)
  • The Form we could offer
Size Range
Wire
dia 0.03-7.5mm
 Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys
dia 8.0-12.0mm
 Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys
Ribbon
(0.05-0.35)*(0.5-6.0)mm
 Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys
Strip
(0.50-2.5)*(5-180)mm
 Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys
Rod
8-50mm
 Soft 270 MPA 12mm Heating CuNi8 Nickel Based Alloys
