Specifications
Brand Name :
DLX
Model Number :
Ni30Cr20
Place of Origin :
China Jiangsu
MOQ :
5
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500 tons per month
Delivery Time :
7-20 days
Packaging Details :
Spool package with Carton box, Coil package with polybag
Material :
Nickel, Chromium
Nickel(Min) :
30%
Resistivity :
1.04+/-0.05
Tensile Strength :
637MPA
Elongtation :
≥20%
Application :
Heating, Resistivity
Condition :
Hard / Soft
Sureface :
Bright, Oxided, Acide
Name :
Resistance heating flat wire, ribbon
Certification :
CE,ROHS
Description

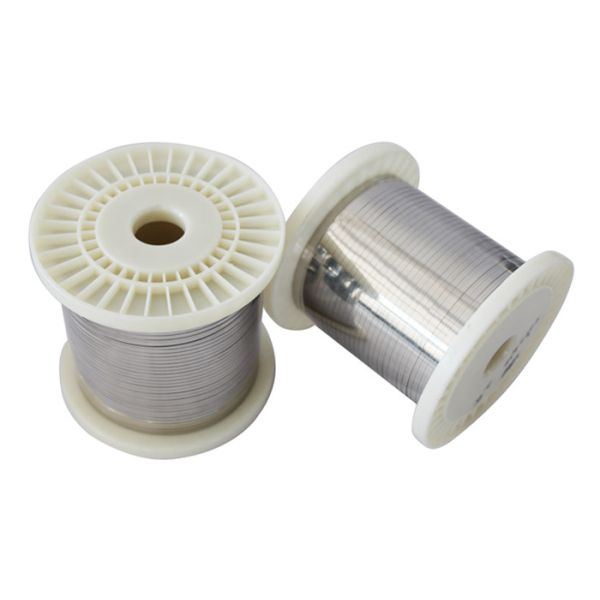

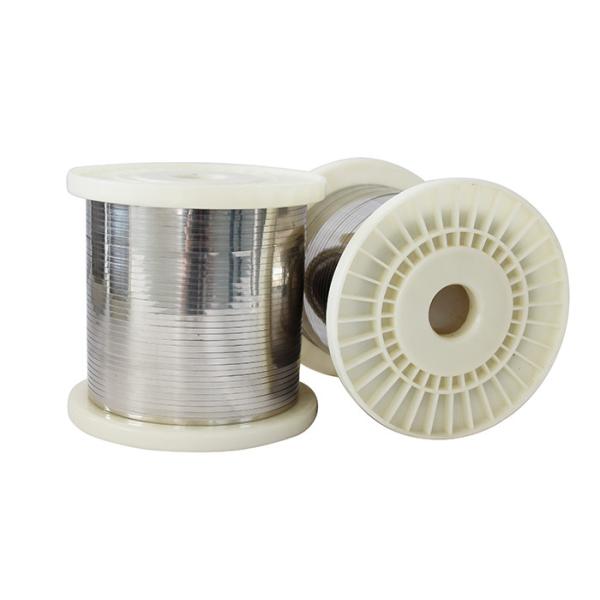

0.1*3mm Resistance Heaters Ni30Cr20 Flat Wire Ribbon For Sale


0.1*3mm Resistance Heaters Ni30Cr20 Flat Wire Ribbon For Sale


  • NiCr Series

Ni30Cr20 With Common Name:Ni30Cr20,Nikrothal 30, N3, HAI-NiCr 30, Resistohm 30,30-20 Ni-Cr,Nikrothal 3.It is a kind of nickel-chromium alloy. The max temperature applications up to 1100°C. Ni30Cr20 is used for a wide range of electric heating elements in domestic appliances.

Typical applications: hot plates, heavy-duty rheostats, storage heaters, convection heaters, fan heaters, heating cables, electric blankets and pads, car seats, resistors, etc.

Common Name: OhmAlloy104B, Ni30Cr20,Nikrothal 30, N3, HAI-NiCr 30, Resistohm 30,30-20 Ni-Cr,Nikrothal 3

Ni30Cr20 Nickel-Chromium Nickel alloy resistance heating flat wire.


  • Ni30Cr20 Nickel-chromium alloy performance tables
Performance material Cr10Ni90 Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Composition Ni 90 Rest Rest 55.061.0 34.037.0 30.034.0
Cr 10 20.023.0 28.031.0 15.018.0 18.021.0 18.021.0
Fe ≤1.0 ≤1.0 Rest Rest Rest
Maximum temperature 1300 1200 1250 1150 1100 1100
Meltiing point 1400 1400 1380 1390 1390 1390
Density g/cm3 8.7 8.4 8.1 8.2 7.9 7.9
Resistivity 1.09±0.05 1.18±0.05 1.12±0.05 1.00±0.05 1.04±0.05
μΩ·m,20
Elongation at rupture ≥20 ≥20 ≥20 ≥20 ≥20 ≥20
Specific heat 0.44 0.461 0.494 0.5 0.5
J/g.
Thermal conductivity 60.3 45.2 45.2 43.8 43.8
KJ/m.h
Coefficient of lines expansion 18 17 17 19 19
a×10-6/
(201000℃)
Micrographic structure Austenite Austenite Austenite Austenite Austenite
Magnetic properties Nonmagnetic Nonmagnetic Nonmagnetic Weak magnetic Weak magnetic


  • Ni30Cr20 The Form we could offer
Size Range Wire Ribbon Strip Rod
dia 0.03-7.5mm dia 8.0-12.0mm (0.05-0.35)*(0.5-6.0)mm (0.50-2.5)*(5-180)mm 8-50mm

0.1*3mm Resistance Heaters Ni30Cr20 Flat Wire Ribbon For Sale0.1*3mm Resistance Heaters Ni30Cr20 Flat Wire Ribbon For Sale0.1*3mm Resistance Heaters Ni30Cr20 Flat Wire Ribbon For Sale

CHANGZHOU DLX ALLOY COMPANY was establish in 2016,our factory established in 2002 and has got ISO9001 International Quality Management System Certificate and SGS Certificate.Our factory is becoming a high-tech company,We are professional in researching and producing special alloy material.The production process include melting,drawing,heat treatment,finishing and testing.We offer super alloy,welding wire,corrosion resistance alloy,precision alloy,FeCrAl alloy,NiCr alloy,CuNi alloy,in the form of wire,strip,ribbon,bar,tube,plate and etc.The administrative principle of our company is "intensifying inner supervision, complying with technical process and quality control, continuously adopting new technology to ensure the product quality". We employ some senior engineers to instruct technology, apply new technology and research new products. Our operation principle is "Quality first, Customer first". All the staff of our company would like to provide high quality and reasonably priced products for clients at home and abroad, and to make your products more competitive.
