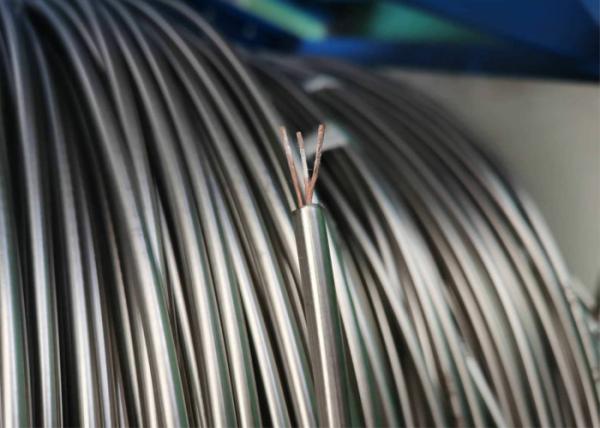

BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
Specifications
Brand Name :
DLX
Model Number :
Type B MI Thermocouple cable
Place of Origin :
China
MOQ :
500
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100000 meters per month
Delivery Time :
5-21 days
Packaging Details :
Spool package with Carton box, Coil package with polybag
Certification :
CE,ROHS
Product name :
MI Thermocouple Wire
Color :
white, Red, Yellow and etc
Certificate :
ISO9001
Grade :
BP/BN, Extension Grade BPX/BNX
Positive :
Platinum Rhodium
Negative :
Platinum Rhodium
Description

BN Type B 0.5mm MI INCL800 Mineral Insulated Cable

  • Type B MI Thermocouple CABLE

According to the extension wire standard (GB / 4989-94), models of compensation wires are divided into four types:
SC, WC, RC, BC (The initial letter of each type correspond with their graduations. The letter “C” refers to the compensation wire

Within certain range of temperature, a pair of insulating wires used in the applicable thermocouple which has the same feature is called compensation wire. When correctly connected with the applicable thermocouple, it will extend the reference end of thermocouple to a place away from heat or with constant temperature.

Advantages:
1, improve the mechanical and physical properties of the measuring lines of thermocouple.
2, reduce the cost of measuring lines

  • Thermocouple Wire
Code Wires component of the thermocouple
+Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum

  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044

  • Size range

Dia(mm): 0.5 to 12.7 mm.

  • Parameter
Out Sheath(mm) Core wire Dia.(mm) Sheath Material Length(m)
Our Dia. WallThickness K,N,E,J,T type S,R,B types K,N types E,J,T types S,R type B type
0.5 0.05-0.1 0.08-0.12 ---

SS304

SS321

SS316

SS310

INCL600

SS304

SS321

SS316

INCL600

INCL800

INCL600

INCL800

 500
1 0.1-0.2 0.15-0.2 --- 300
1.5 0.15-0.25 0.23-0.3 --- 200
1.6 0.16-0.26 0.26-0.36 --- 200
2 0.25-0.35 0.4-0.5 0.25-0.3 180
3 0.38-0.48 0.5-0.6 0.30-0.4 80
3.2 0.48-0.58 0.58-0.68 0.30-0.4 75
4 0.52-0.62 0.6-0.7 0.35-0.4 70
4.8 0.73-0.83 0.75-0.85 0.4-0.45 40
5 0.78-0.88 0.80-0.90 0.4-0.45 40
6 0.98-1.08 0.90-1.1 0.45-0.5 30
6.4 1.05-1.15 1.02-1.12 0.45-0.5 30
8 1.30-1.44 1.30-1.40 0.45-0.5 20
12.7 1.75-1.90 1.92-2.05 --- 10

  • Type and Sheath table

Product name code type sheath material out Dia.(mm) Temperature
Ni Cr-Ni-Si KK K SS304 0.5-1.0 400
SS321 1.5-3.2 600
SS316 4.0-8.0 800
0.5-1.0 500
SS310 1.5-3.2 800
INCL600 4.0-6.4 900
8.0-12.7 1000
NICROBELL 4.0-6.4 900
8.0-12.7 1200
Ni Cr Si-Ni Si NK N SS304 0.5-1.0 400
SS321 1.5-3.2 600
SS316 4.0-8.0 800
0.5-1.0 500
SS310 1.5-3.2 800
INCL600 4.0-6.4 900
8.0-12.7 1000
NICRPBELL 4.0-6.4 900
8.0-12.7 1200
Ni Cr-Constantan EK E SS304 0.5-1.0 400
SS321 1.5-3.2 500
SS316 4.0-8.0 800
Fe-Constantan JK J SS304 1.0 300
SS321 1.5-3.2 500
SS316 1.0-8.0 800
Cu-Constantan TK T SS304 -200-100
SS321 100-200
SS316 100-350

BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated Cable
BN Type B 0.5mm MI INCL800 Mineral Insulated CableBN Type B 0.5mm MI INCL800 Mineral Insulated Cable
