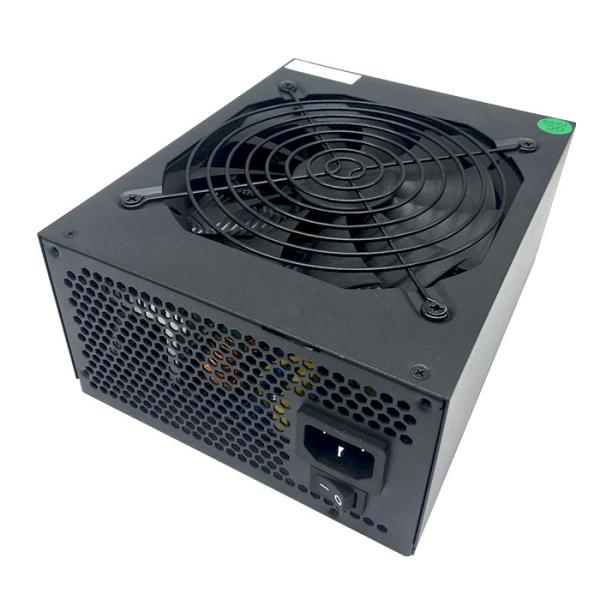

1600W 1800w Modular Power Supply For 6 GPU Rig Machine

Features:

- 100% brand new and high quality.

- 1600W ultra-high power, conversion efficiency of 90+ Gold.

- Can bring 6 graphics card actual graphics interface is 12.

- Compatible with 370/470/380/480/580/1060/1070/1080.

- ATX 12V version 2.31 EPS12V, support all latest processors from Intel and AMD.

- New 4th Gen CPU technologies supported.

- SLI (Scalable Link Interface) Ready, Quad SLI.

- Multi GPU technologies supported.

- Supported for Intel and AMD.

- 140mm large fan design for optimal system cooling and maximizing performance

- Excellent stability.

- Matte black color coating.

- Mesh cable sleeve for easy cable management.

- Ball bearing fan and grill.

- Short circuit and over voltage protection.

- High energy efficiency, more than 90%.

Specifications:

Power selection type: 160-240V (Remember!)

Name: 1600W Modular Power Supply

Power supply standard: ATX 12V 2.3

Total power: 1600W

Input voltage: 200-240V wide range

Input current: 20 / 10A

Frequency range: 50Hz-60Hz

Max Output Current (DC Output: + 3.3V): 15A (Combuned Power: 110W)

Max Output Current (DC Output: + 5V): 15A (Combuned Power: 110W)

Max Output Current (DC Output: + 12V): 124A (Combuned Power: 1480W)

Max Output Current (DC Output: + 5VSB): 3.0A (Combuned Power: 15W)

Max Output Current (DC Output: -12V): 0.5A (Combuned Power: 6W)

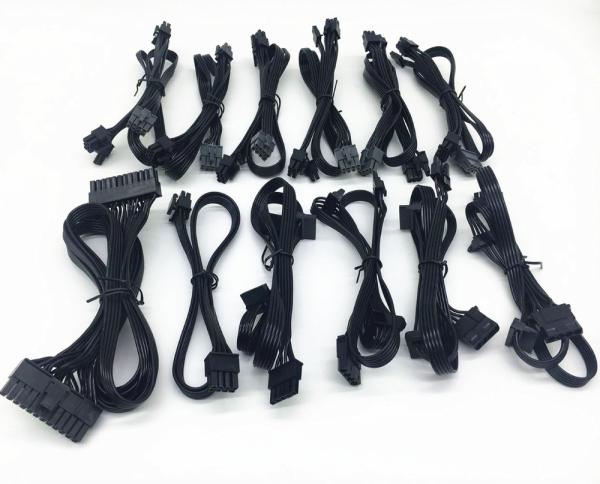

Connectors: 20pin + 4pin × 1pc; 4pin + 4pin ATX × 1pc; 6pin + 2pin PCI-E × 12pcs; 4pin SATA port × 8pcs; 4pin Peripheral port × 4pcs.

Features:

Intelligent mute design, wide range stable voltage.

Size: about 150 * 185 * 85mm

Product Weight: 3.00KG

Quality Certification: CCC \ CE \ TUV \ FCC \ CB \ ROHS \ EAC \ 90PLUS

Note:

Choose the 110V or 200-240V type. Please choose the suitable power according to the local voltage, otherwise it may burn the circuit easily. This is very important!!!
