3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
Specifications
Brand Name :
DockFender
Model Number :
DF-YRF3.3*6.5
Certification :
ISO17357-1:2014, PIANC2002
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
EUR500-800 One Piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
900 PCS Per Month
Delivery Time :
8 Work Days
Packaging Details :
Pallet, Wooden Case, or as required
Product Name :
3.3*6.5M Yokohama Fenders ISO 17357-1:2014 Certified Safety Valve For STS
Standard :
ISO17357-1:2014, CB/T 3948-2001
Techonlogy :
Explosion Proof, Overall Winding, Anti-Aging
Hardness :
60±10 Shore A
Elongation :
≥400
Quality :
High Quality
Lifespan :
15-20 Years
Application :
Used for ship and dock
Description

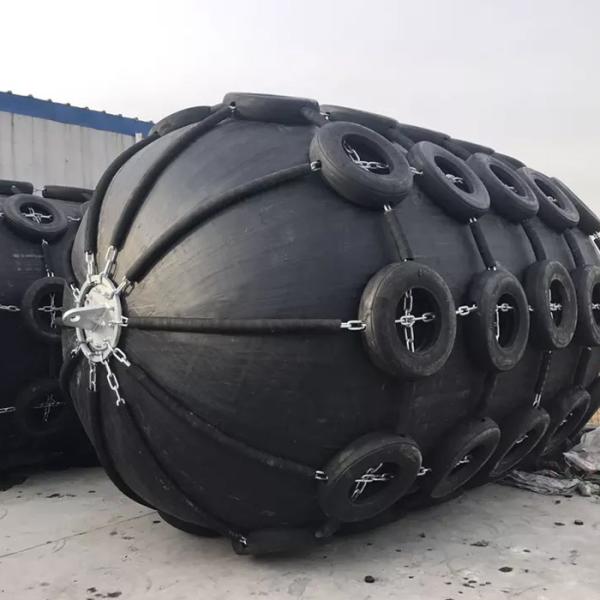

3.3*6.5M Yokohama Fenders ISO 17357-1:2014 Certified Safety Valve For STS

Description

Yokohama Fender also called pneumatic fender, rubber fender, yokohama fender, made by rubber multi layers of rubber-dipped tyre fabric, is a leading anti-collision device for marine application in the world today. Marine fenders have become an ideal ship protection medium against collision among ship-to-ship (STS), ship to quay (STQ) and ship-to-berthing (STB), they are widely used for large tankers, vessels, docks, harbor wharfs and ocean platforms.

The Yokohama Fender or Inflatable Rubber Fender or Pneumatic Fender, uses compressed air as a buffer medium to absorb the impact energy of the ship, so that the ship has more flexibility and softness when docked, so as to achieve the effect of preventing collision and collision.

Specifications

Place of Origin China
Brand Name DockFender
Model Number DF-YF3.3D
Processing Service Moulding
Material Natural Rubber
Product Name 3.3*6.5M Yokohama Fenders ISO 17357-1:2014 Certified Safety Valve For STS
Application Industrial, Marine, Dock, STS
Color Black or as required
Size Customer's Requirements
MOQ 1 Piece
Advantage Long Working Life
Package Plastic Bag Packing + Pallet
Payment Term T/T, L/C

Diameter x Length
[mm]		 50kPa
Performance Data		 80kPa
Performance Data
Hull Pressure
at GEA
/ kN / m2		 Reaction Force
/ kN		 Energy Absorption
/ kNm		 Hull Pressure
at GEA
/ kN / m2		 Reaction Force
/ kN		 Energy Absorption
/ kNm
1000 x 1500 122 182 32 160 239 45
1000 x 2000 132 257 45 174 338 63
1200 x 2000 126 297 63 166 390 88
1350 x 2500 130 427 102 170 561 142
1500 x 3000 153 579 153 174 761 214
1700 x 3000 128 639 191 168 840 267
2000 x 3500 128 875 308 168 1150 430
2500 x 4000 137 1381 663 180 1815 925
2500 x 5500 148 2019 943 195 2653 1317
3300 x 4500 130 1884 1175 171 2476 1640
3300 x 6500 146 3015 1814 191 3961 2532
3300 x 10600 158 5257 3067 208 6907 4281
4500 x 9000 146 5747 4752 192 7551 6633
* Other size can be produced follow client's requirements.

Features

1. High energy absorption with a low reaction force.

2. Light weight, portable and floatable, can be installed and replaced easily.

3. Heavy duty and long service life-over 30 years.

4. Supplied as sling type (body only) or with chain and tire net for protection of the fender body.

5. Suitable for locations with large and small tidal differences.

Applications

● High-protection netting with aircraft tires.

● Complete STS mooring package - ropes, wires and hardware.

● Two-year operational spare part package.

● Class certification (ABS).

● Service agreement including safety valve testing and re-certification.

Advantages

◆ Fully compliant with ISO 17357-1:2014.

◆ Original factory, competitive price.

◆ Best discount to save project budget.

◆ Third party strict inspection + In-house performance test.

◆ With excellent oil resistance, heat resistance, anti-aging properties.

3.3*6.5M Pneumatic Rubber Fender ISO 17357-1:2014 Certified Safety Valve For STS
