Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
Specifications
Brand Name :
DockFender
Model Number :
DF-CL800H
Certification :
PIANC, DNV, ABS, BV, LR
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
USD350 to USD2000 One Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1800 PCS Per Month
Delivery Time :
5-6 Work Days
Packaging Details :
Pallet, Wooden Case
Product Name :
Marine Ship Dock Rubber Fender Cell Fenders CL800H For Dock and Jetty
Material :
High Performance Natural Rubber
Height :
400 to 3000 mm
Accessories :
Front Panel, Face Pad, Chain, etc
Warranty :
3 Years
Usage :
Ship, Dock, Jetty, Port, Wharf
Packing :
Standard Packing
Description

Marine Ship Dock Rubber Fender Cell Fenders CL800H For Dock and Jetty

Description

Cell Fenders are mostly installed for docks where Reaction force is an important criteria. Among all types of fenders, cell fenders offer minimum reaction per ton-meter energy absorbed. The very geometrical shape gives it sturdiness, shear resistance, compact structure and the capacity to absorb effectively and buckles

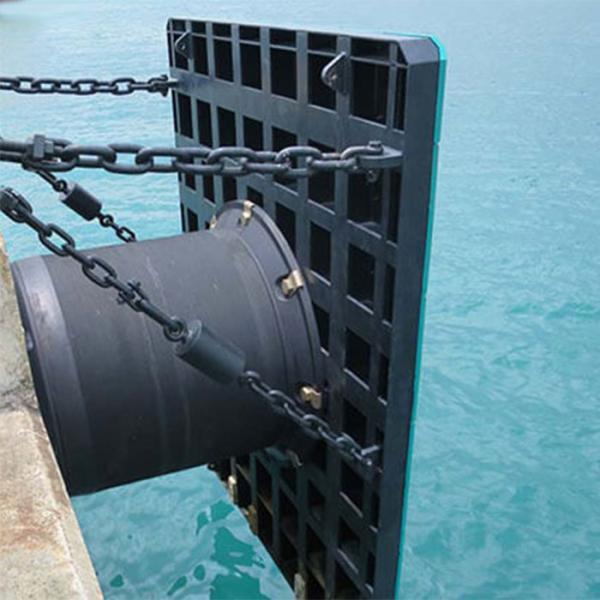

radically. Cell Fenders are the most durable rubber fenders available and are currently the largest molded fenders made. In order to distribute the reaction force, cell fenders are typically supplied with large fender panels, which keep the hull pressure low. Our cell type rubber fender is installed on docks to absorb the collision energy between ship and dock at the time of berthing.

Specifications

Product Name Marine Ship Dock Rubber Fender Cell Fenders CL800H For Dock and Jetty
Brand Name DockFender
Model Number DF-500H
Material High Performance Natural Rubber
Height 200mm-1000mm
Length 1000-3500L
Accessory Front Panel, Face Panel, Bolt, Nut, Foot Rod, Foot Board
Warranty 3 Years
After-sale Service Free Spare Parts
Quality Certification ISO9001, PIANC
Safety Standard ABS, BV, SGS
Color Customers' Requirements
Application Port, Dock, Quay, etc

Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty

Type (mm) H ØD1 ØD2 h holes n-Ød
DF-CL400H 400 550 650 25 4 Ø30
DF-CL500H 500 550 650 25 4 Ø32
DF-CL630H 630 700 840 30 4 Ø39
DF-CL800H 800 900 1050 30 6 Ø40
DF-CL1000H 1000 1100 1300 35 6 Ø47
DF-CL1150H 1150 1300 1500 40 6 Ø50
DF-CL1250H 1250 1450 1650 45 6 Ø53
DF-CL1450H 1450 1650 1850 47 6 Ø61
DF-CL1600H 1600 1800 2000 50 8 Ø61
DF-CL1700H 1700 1900 2100 55 8 Ø66
DF-CL2000H 2000 2000 2200 55 8 Ø74
DF-CL2250H 2250 2300 2550 60 10 Ø74
DF-CL2500H 2500 2700 2950 70 10 Ø90
DF-CL3000H 3000 3150 3350 75 12 Ø90

Features

1. High performance, reasonable structure.

2. Strong, well-proven design.

3. Ideal for low hull pressure systems.

4. Can support large panels.

5. Strong, well-proven design.

Applications

● Oil and LNG Facilities

● Bulk Terminals

● Offshore Platforms

● Container Berths

● RoRo and Cruise Terminals

● Multi-user Berths

● Ideal for ships with low hull pressure headroom

Pre-built-in Accessories

◆ Bolt made of Q235 hot-dip galvanised material /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

◆ Washer made of Q235 hot-dip galvanised material, 1Cr18Ni9Ti

◆ Pre-built-in nut made of Q235 hot-dip galvanised 1Cr18Ni9Ti/SUS304/SUS316

◆ Foot rod: Q235

◆ Foot board: Q235

Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty

Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty

Marine Cell Ship Rubber Fender Height 3000mm CL800H For Dock And Jetty
