PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing
Specifications
Brand Name :
DockFender
Model Number :
DF-HOF1000
Certification :
PIANC, ABS, DNV, LR
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
USD520 to USD1520 One Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2600 PCS Per Month
Delivery Time :
5-7 Work Days
Packaging Details :
Wooden Pallet
Product Name :
PIANC Marine Dock Rubber Fender Hyper Omega Fender Durable Berthing Bumper
Part :
Bumper
Application :
Dock, Port
Material :
NR
Warranty :
3 Years
Processing Service :
Moulding
Size :
Customized Size
Description

PIANC Marine Dock Rubber Fender Hyper Omega Fender Durable Berthing Bumper

Description

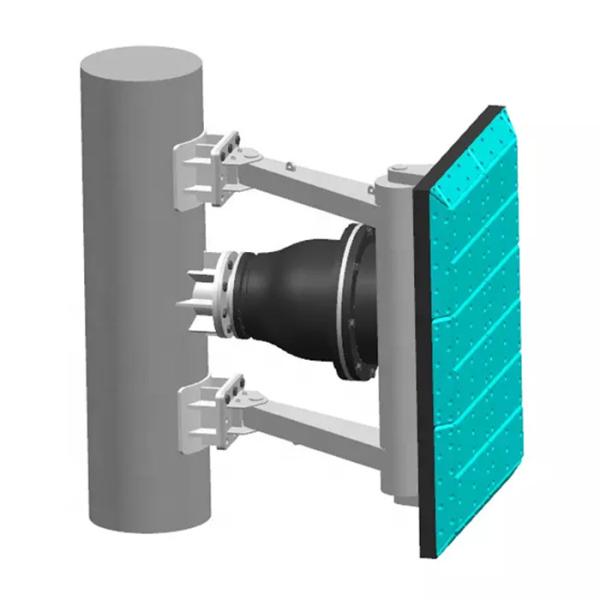

Hyper omega fenders are an improved version of cell type fender recently introduced and recommended for all type of applications including high tidal variation sites. This advanced feature of lesser heights of fenders improves material handling capabilities of vessel cranes which reduces overall cost of the project. Due to the geometrical shape of the fenders it can deflect more and it can absorption, can be achieved by using two identical cone fenders in a back to back arrangement. In order to distribute the reaction force, hyper omega fenders are typically supplied with large fender panels, which keep the hull pressure low. Hyper omega fenders have good energy absorption to reaction force ratio; Integrated and fully-embedded fender flanges make assembly & installation simple; Good shear force resistance due to the large diameter of the fender flanges; Large fender footprint with good force distribution could lead to relative light panel construction, hyper omega rubber fender adopts tapered rubber with a steel frame at the head.

Specifications

Place of Origin China
Brand Name DockFender Group
Model Number DF-HOF1000
Product Name PIANC Marine Dock Rubber Fender Hyper Omega Fender Durable Berthing Bumper
Material High Performance Natural Rubber
Warranty 3 Years
After-sale Service Free Spare Parts
QC PIANC, DNV
Safety Standard ISO9001
Accessories Bolt, Nut, Washer
Color Customers' Requirements
Height 500-1800 mm
Application Port, Dock, Boat

PIANC Marine Dock Fenders And Bumpers Hyper Omega Durable Berthing

H ΦD ΦA ΦF ΦB S T Fixings
350 570 510 330 275 27-32 22 4 x M20
400 600 540 340 260 30-40 22 4 x M24
500 750 675 425 325 30-40 22 4 x M24
600 900 810 510 390 30-40 27 6 x M30
700 1050 945 595 455 37-47 27 6 x M30
800 1200 1080 680 520 40-52 27 6 x M36
860 1290 1160 730 560 40-52 30 6 x M36
900 1350 1215 765 585 40-52 33 6 x M36
950 1425 1282 810 618 40-52 34 6 x M36
1000 1500 1350 850 650 50-65 35 6 x M42
1100 1650 1485 935 715 50-65 40 6 x M42
1150 1725 1550 980 750 50-65 40 6 x M42
1200 1800 1620 1020 780 50-65 42 8 x M42
1250 1875 1690 1060 810 50-65 44 8 x M42
1300 1950 1755 1105 845 65-80 46 8 x M48
U00 2100 1890 1190 980 65-80 49 8 x M48
1450 2175 1960 1232 1035 65-80 51 8 x M48
1500 2250 2025 1275 1090 65-80 51 8 x M48
1600 2400 2160 1360 1200 65-80 58 8 x M48
1800 2700 2430 1530 1350 80-100 62 10 x M56
2000 3000 2700 1700 1500 80-100 62 10 x M56

Features

1. Well proven design

2. High efficiency

3. Wide range of sizes

4. Good angular performance

5. PIANC tested and certified

6. Standard and intermediate rubber grades

Applications

● Monopiles

● High tidal zones

● LNG and tanker terminals

● RoRo and fast ferry berths

● Naval facilities

Rubber Properties

Rubber compounds are designed for long life in marine environments. All fenders are made using high quality natural and/or synthetic rubber compounds, formulated for high performance and reliability.

Rubber compounds include additives to resist the effects of ozone and ultra-violet light. The vulcanisation process is strictly controlled to ensure a homogenous product with excellent physical properties and rubber to metal bond strengths.

  • Marine grade compounds
  • Natural and/or synthetic
  • Resists ozone and UV
  • Excellent bond strengths
  • Fully homogeneous
  • Fully recyclable

Our moulded rubber fender compounds also comply to ASTM D 2000 callouts:

3BA 720 A14 B13 C12 EA14 F17

3BA 620 A14 B13 C12 EA14 F17

Physical Properties Unit Test Method Value Test
Tensile strength MPa ISO 37 ≥16 Yes
Elongation at break % ISO 37 ≥350 Yes
Tear strength N/mm ISO 34–1(Graves) ≥70 Yes
Hardness HA ISO 868 ≤78 Yes
Change in Tensile Strength

%

ISO 188

≤20

Yes
Aged for 96h at 70°C
Change in Elongation at Break

%

ISO 188

≤20

Yes
Aged for 96h at 70°C
Change in Hardness

HA

ISO 868

≤6

Yes
Aged for 96h at 70°C
Compression Set % ISO 815 ≤30 Yes
Ozone resistance

–

ISO 1431–1

No cracks

 Yes
50pphm at 20% strain, 40°C,100h
Volume Change in Oil (ASTM Oil 1) % ISO 1817 ≤10 Optional*
Volume Change in Seawater

%

ISO 1817

–5to+10

Optional*
36g NaCl/litre; 28days, 95°C
Abrasion Resistance mm³ ISO 4649 ≤100 Optional*
Bond Strength N/mm² ISO 814 ≥7 Optional*
DynamicFatigue*(15000 cycles) - ISO 132 Grade 0–1 Optional*
Low Temperature Resistance - ISO 812 Pass Optional*
