Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Specifications
Brand Name :
DockFender
Model Number :
DF-D400H
Certification :
ABS, SGS, DNV
Place of Origin :
China
MOQ :
1 Piece
Price :
USD190-2590 Per Piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
2900 Pcs Per Month
Delivery Time :
5-7 Work Days
Packaging Details :
Wooden Pallet, Wooden Case
Product Name :
Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Material :
Anti Aging Natural Rubber
Color :
Black & Customer's Requirement
Usage :
Industrial Mooring Shock Absorber
Accessories :
Nut, bolt, washer, etc
Package :
Plastic Bag Packing + Pallets
Description

Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock

Description

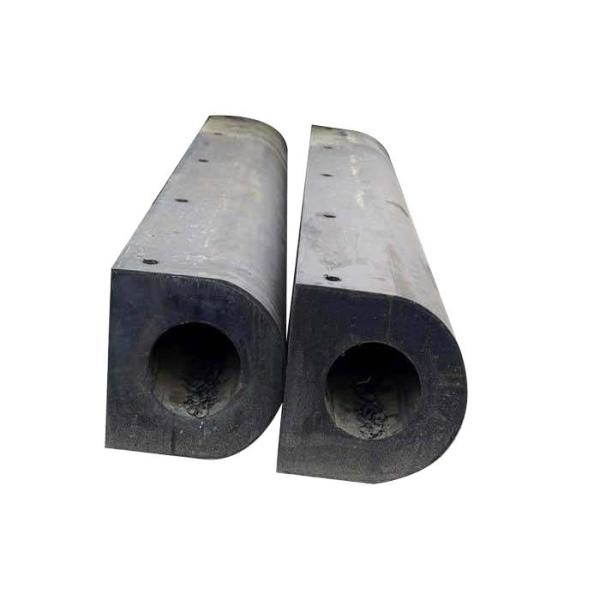

There are three types of D type rubber fenders. One is with a cylindrical bore inside, which is known as DO type rubber fender, one is with a “D” shaped bore inside, which is known as DD type rubber fender, and the last one is with a solid bore, therefore, it is known as solid d type rubber fender. Both DO type and DD type share the same flat rear face which makes them easy to install between parallel flat bars and bolt fixings. They can be supplied in long sections with maximum length restricted only by transport and handling limitations, they can be cut to length, angle cut at the end drilled or pre-carved as required for each application.

Specifications

Place of Origin China
Brand Name DockFender
Model Number DF-D400H
Product Name Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock
Color Black/grey/blue, etc
Material Rubber
Age Range 15-20 Years
Size Customized
Usage Dock Port Wharf Boat Ship
Surface Matte/Smooth
Packing Pallet or Wooden Case
Keywords D Type Rubber Fender / Extruded Fender

Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock

A B C D E F H K
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
70 30 15 30 45 80 90 - 130 200 - 300
100 45 15 30 50 100 90 - 130 200 - 300
125 60 20 40 60 125 110 - 150 250 - 300
150 75 20 40 75 150 110 - 150 250 - 300
150 80 25 50 100 200 130 - 180 300 - 400
200 100 25 50 100 200 130 - 180 300 - 400
200 100 30 60 125 250 140 - 200 350 - 450
250 125 30 60 125 250 140 - 200 350 - 450
300 150 30 60 150 300 140 - 200 350 - 450
350 175 35 75 175 350 140 - 200 350 - 450
380 190 35 75 190 380 140 - 200 350 - 450
300 150 35 75 175 400 140 - 200 350 - 450
400 200 35 75 200 400 140 - 200 350 - 450
500 250 45 90 250 500 160 - 230 400 - 500
*Note: Other sizes can be customized according to the requirements.

Oil Resistant D Type Fenders D400H Eco Friendly Natural Rubber For Mooring Boat Dock

A B C D E F G H K
[mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
100 25 10 30 15 100 50 90 - 130 200 - 300
150 30 12 65 20 150 75 110 - 150 250 - 350
200 45 15 75 25 200 100 130 - 180 300 - 400
250 50 20 100 30 250 125 140 - 200 350 - 450
300 60 25 125 30 300 150 140 - 200 350 - 450
350 70 25 150 35 350 175 140 - 200 350 - 450
400 80 30 175 35 400 200 140 - 200 350 - 450
400 80 30 200 35 400 200 140 - 200 350 - 450
500 100 30 250 35 500 250 140 - 200 350 - 450

Features

1. Maintenance free product

2. Easy to install, safety operation

3. Long service life device

4. Customizable

Applications

● Parking Garages

● Loading Docks

● Building walls, Concrete Piers

● Freight Trucks and Trains

● Building Interiors

Rubber Properties

PROPERTIES TEST STANDARD VALUES
Compound - NR / SBR
Density (Specific Gravity) DIN 53505 1200 kg/m3
Tensile Strength DIN 53504 ≥16 MPa
Elongation at Break DIN 53504 ≥350%
Tear Resistance (23°C) DIN 53507 ≥80 N/cm
Abrasion Resistance DIN 53516 ≤100mm3
Compression Set (24hrs @ 70°C) DIN 53517 ≤40%
Ozone Resistance (ppm 20% 72hrs @ 40°C) ISO 143/1 No cracking visible by eye
Change In Hardness DIN 53504 ≤5°
Change In Tensile Strength DIN 53504 ≥80%
Change In Elongation at Break DIN 53504 ≥80%
Minimum Temperature - -30°C
Maximum Temperature - +70°C

Advantages

1. Quality

DockFender D type fenders always maintain high quality. We insist on using 100% natural rubber, coupled with a special angle design, so that our D type rubber fenders can be more durable and perform better.

2. Service

DockFender adheres to the principle of customer first. Our professional customer service team can not only provide you with the most professional product recommendations, but also help you customize project solutions.

3. After-sales Service

DockFender 's fixed D type fenders can be guaranteed for 36 months. As long as you use it normally, we can guarantee replacement for any product quality problems during the warranty period.

4. Customize

All products of DockFender can be specially customized according to customer requirements, let us know your needs!

Material of main accessories

1. Bolt: Q235 hot-dip galvanised /1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

2. Washer: Q235 hot-dip galvanised.

3. Pre-built-in nut: 1Cr13(2Cr13)1Cr18Ni9Ti/SUS304/SUS316

4. Foot rod and board: Q235
