Specifications
Brand Name :
DockFender
Model Number :
DF-CTN4.5*9.0M
Certification :
ISO17357-1:2014
Place of Origin :
China
MOQ :
1 Piece
Price :
USD560 to 5900 One Piece
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
1370 Pcs Per Month
Delivery Time :
6 Work Days
Packaging Details :
Wooden Pallets, Wooden Cases
Product Name :
Pneumatic Fenders 50kPa 4.5M ISO17357 Guide Natural Rubber Tyre Chain Net
Material :
Top-Level Natural Rubber
Standard :
PIANC2002, ISO17357-1:2014
Part :
STS Fender
Certificate :
ABS, RS, BV, LR, DNV
Advantage :
Customized, Original Factory
Warranty :
36 Months
Application :
Boat Ship Dock Jetty Wharf Port
Description

Pneumatic Fenders 50kPa 4.5M ISO17357 Guide Natural Rubber Tyre Chain Net

Description

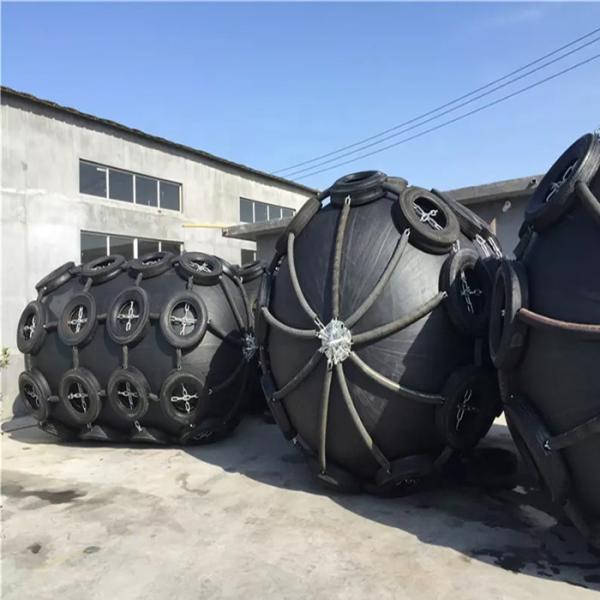

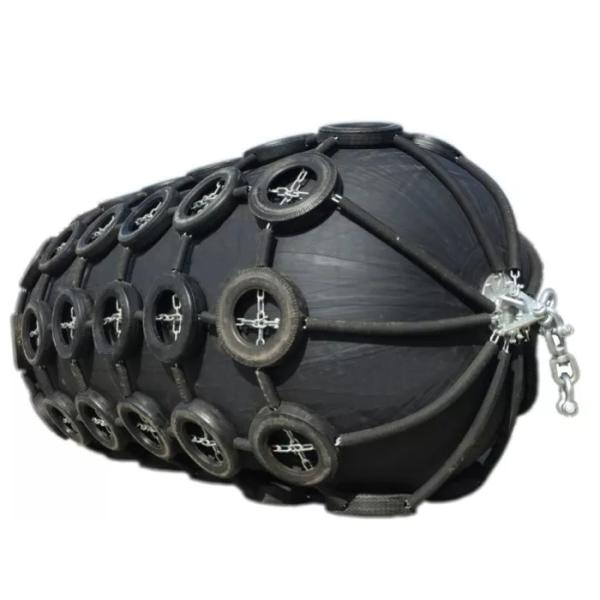

The Pneumatic fenders delivered from stock are provided with DockFender Heavy-Duty protection netting made out of certified chains and airplane tires. The netting protects the fender against damage during towing and other kinds of handling and also expands the lifetime of the fender as a result of the protection of the fender body during operations.

Pneumatic fenders are a leading anti-collision device for marine applications in the world today. Pneumatic rubber fender serves as a critical protective medium against collision when ship-to ship (STS) transfer operations and ship-to-dock (STD) berthing and mooring operations. Pneumatic fenders have the advantages of massive energy absorption with low unit surface pressure act upon the ship. These Pneumatic fenders are specifically made for protection in maneuvering ships without collision.

Product Name Pneumatic Fenders 50kPa 4.5M ISO17357 Guide Natural Rubber Tyre Chain Net
Brand Name DockFender
Model Number DF-YRF4.5M
Material High Performance Natural Rubber
Standard ISO17357-1:2014, PIANC2002
Shape Horizontal
Package Plastic Bag+Pallet
Initial Pressure 50kPa & 80kPa
Testing Pressure 250 kPa
Energy Absorption 64-6633 kNm
Reaction Force 6-7551 kN
Color Customers' Requirements
Application Port, Dock, Quay, etc


Specifications

Normal Size

Inner Pressure: 50Kpa

60% deflection

Inner Pressure: 80Kpa

60% deflection
Diameter Length Reaction Force Energy Absorption Hull Absorption Reaction Force Energy Absorption Hull Absorption
mm mm kN kNm kPa kN kNm kPa
500 1000 64 6 132 85 8 174
600 1000 74 8 126 98 11 166
700 1500 137 17 135 180 24 177
1000 1500 182 32 122 239 45 160
1000 2000 257 45 132 338 63 174
1200 2000 297 63 126 390 88 166
1350 2500 427 102 130 561 142 170
1500 3000 579 152 132 731 214 174
1700 3000 639 191 128 840 267 168
2000 3500 875 308 128 1150 430 168
2500 4000 1381 663 137 1815 925 180
2500 5500 2019 943 148 2653 1317 195
3300 4500 1884 1175 130 2476 1640 171
3300 6500 3015 1814 146 3961 2532 191
3300 10600 5121 3090 171 6612 4294 220
4500 7000 4660 3816 186 5866 4945 233
4500 9000 5747 4752 146 7551 6633 192
4500 12000 7984 6473 154 10490 9037 202

Features

1. The energy absorption does not decrease at inclined compression up to 15 degrees.

2. The reaction force increases slowly and does not increase sharply even under excess load conditions.

3. Adequately reinforced using strong tire cord against the combined force during ship berthing and mooring operations. Supported by water on which it floats, making simple installation possible on the wharf and anchor mast.

Available in a variety of sizes.

4. Supplied as sling type (body only) or with chain and tire net for protection of the fender body

5. Suitable for locations with large and small tidal differences

Applications

● Ship-to-ship transfer operations

● Ship-to-ship services

● Offshore platform defense

● Ship berthing at the dock

● Hang on the ship hull

Advantages

◆ Compliance with ISO17357-1:2014 standard

◆​ Low reaction force and hull pressure

◆​ More safety and reliability

◆​ Most cost competitive system

◆​ Lower mooring forces

◆​ Advantage against shearing force

◆​ Adaptable to the tide

◆​ Simple and low-cost installation

◆ ​Low maintenance cost

◆​ Various optional fitting
