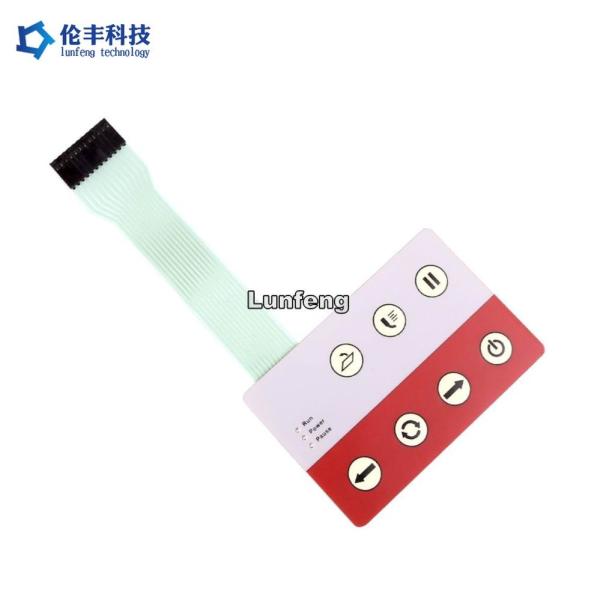

FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
Specifications
Brand Name :
Lunfeng
Model Number :
LFZDX052
Certification :
ISO9001:2015
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500000 Piece/Pieces per Month
Delivery Time :
7-25 working days, To be negotiated
Packaging Details :
First put into a polybag, then paked into a carton. According to clients' special requirements.
Product name :
FPC Circuit Flat Membrane Switch, Membrane Touch Control Panel For Coffee Machine
ColorS :
Pantone/ RAL color, white, red, black, yellow
Material :
PET, Polyester(PET),
Rear adhesive :
3M adhesive 3M467 3M468
Feature :
No metal domes, matte surface, silver circuit
Connector :
2.54mm Pitch black connector
Key :
flat keys, flat buttons
Type :
with Leds, NO LCD window
Description

FPC Circuit Flat Membrane Switch, Membrane Touch Control Panel For Coffee Machine

Flexible Membrane Switches Include:

Flex membrane switch

Copper flex membrane switches

Rigid membrane switch includes:

PCB membrane switches

Silicone rubber membrane switch

For more information, please look at the blog post titled: user interface products for withstanding harsh environments

Visit our product gallery to learn more about the various constructions and product features we can offer, and learn how Lunfeng can customize your membrane switch assembly to meet and exceed your unique application requirements


Applications:

  • home appliances and device
  • Security Protection systems with Cipher Code
  • Various industry control keypad panel
  • consumer electronics and 3C item
  • Thrapy medical system and device
  • Various automtic machine control keypad
  • Telecommunication Equipment
  • Medical Equipment
  • Industrial Equipment
  • Household Equipment
  • Remote Controller
  • Control system

Our Advantage:

  • We Focus in membrane switch and related items.
  • Strong R&D capability
  • Stable in quality
  • Competitive price
  • Short Lead time for samples and Mass production
  • Whole solution design available

Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch

0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm

0.5mm, 1.0mm,1.27mm, 2.54mm

1. Electrical Properties Membrane Switch
Electrical Level: 35V(DC), 100mA,1W
Contact Resistance: 10Ω~500 Ω
Insulation Resistance: 100MΩ/100V
Dielectrics Voltage-resistance: 250VRms(50~60Hz 1min)
Chattering Time: ≤ 5ms
Life Time: Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding: R>1,180
2. Mechanical Properties
Operating Force: Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke: Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm
3. Environmental and Storage Conditions
Operation Temperature: -40°C ~ +80°C
Storage Temperature: -40°C ~ +80°C
Humidity: 40°C, 90%~95%, 240 hours


FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...

FPC Circuit Flat Membrane Touch Control Panel For Coffee Machine
