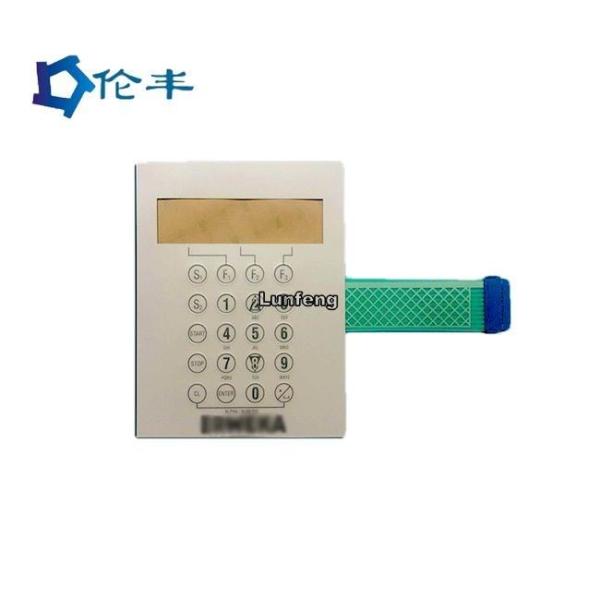

3M467 Waterproof Membrane Keypad LCD RAL Embossing Membrane Switch
3M467 Waterproof Membrane Keypad LCD RAL Embossing Membrane Switch
3M467 Waterproof Membrane Keypad LCD RAL Embossing Membrane Switch
3M467 Waterproof Membrane Keypad LCD RAL Embossing Membrane Switch
Specifications
Brand Name :
Lunfeng
Model Number :
LFMS07
Certification :
ISO9001:2015
Place of Origin :
Shenzhen, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
500000 Piece/Pieces per Month
Delivery Time :
7-25 working days, To be negotiated
Packaging Details :
First put into a polybag, then paked into a carton. According to clients' special requirements.
Product name :
Waterproof Membrane Switch with LCD and embossed keypad
Colors :
Pantone/ RAL color, gray, black
Feature :
LCD window, LED, shielding layer
Key option :
tactile pillow embossing button
Color :
RAL, Pantone
Material :
PET overlay
Rear adhesive :
3M467
Printing :
Screen Printing, UV Coating
Application :
etc,home appliance
Keywords :
membrane keypad, cheap custom Membrane switch Keypad
Description

Waterproof Membrane Switch with LCD and embossed keypad

High-performance Membrane Keypad

1. Beautiful appearance, rich and bright in color, design can be arbitrary.

The products can fully reflect the individual style of the product itself and designer.


2. Panel can wash, good protection of durable color, characters, logos and other panel contents without injury.


3. Small size, light weight, thin thickness, good tactility, abrasion resistant, installation and connection convenience.


4. Tightness is good, moisture-proof, dust-proof, waterproof, anti-oil, anti-corrosion and erosion of harmful gases proof, acid and alkali proof, quakeproof.


5. Low cost, high lifespan, membrane switches design and manufacture are using the keyboard as a whole way, whether on the material or mold charges, the costs are lowest, the life expectancy of different types of membrane switch is more than 100 million times.


6. Easy to operate, intuitive, safe and reliable, In-house 100% functionally tested, components are guaranteed without any intermittent problem.


7. Customized specification is available and keys can make different shapes.


Our Advantage:

We Focus in membrane switch and related items.
Strong R&D capability
Stable in quality
Competitive price
Short Lead time for samples and Mass production
Whole solution design available

Applications:

* home appliances and device
* Security Protection systems with Cipher Code
* Various industry control keypad panel
* consumer electronics and 3C item
* Thrapy medical system and device
* Various automtic machine control keypad
* Telecommunication Equipment
* Medical Equipment
* Industrial Equipment
* Household Equipment
* Remote Controller
* Control system

Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch 0.5mm (not suggested), 1.0mm, 1.27mm, 2.54mm 0.5mm, 1.0mm, 1.27mm, 2.54mm


1.Electrical Properties

Membrane Switch

Electrical Level:

35V(DC), 100mA,1W

Contact Resistance:

10Ω~500 Ω

Insulation Resistance:

100MΩ/100V

Dielectrics Voltage-resistance:

250VRms(50~60Hz 1min)

Chattering Time:

≤ 5ms

Life Time:

Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000

Tail Folding:

R>1,180

2.Mechanical Properties

Operating Force:

Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)

Switch Stroke:

Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm

3.Environmental and Storage Conditions

Operation Temperature:

-40°C ~ +80°C

Storage Temperature:

-40°C ~ +80°C

Humidity:

40°C, 90%~95%, 240 hours


FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
