Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m
Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m
Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m
Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m
Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m
Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m
Specifications
Brand Name :
Kai Yuan
Model Number :
MSC-MBBR
Certification :
AAOAO+MBBR Micro-Power Sewage Treatment Device
Place of Origin :
China
MOQ :
1 set
Price :
RMB4000~6000/t
Payment Terms :
50% prepaid, 50% paid before shipment
Supply Ability :
10 sets per month
Delivery Time :
30 days, negotiable
Packaging Details :
export packing
Material :
Special Steel
Cost Input :
low
Processing Efficiency :
High
Model :
MSC-MBBR-60
Daily Treatment Water :
Below 500T
Size :
7.3×2.7×2.9m
Weight :
7T
Water Quality :
level A
Core component warranty period :
1 Year
Voltage :
380 volts
Power :
1.38 kW
Application :
Various sewage
Technology :
MSC-MBBR
Applicable Industry :
hotels, restaurant ,village ,farmn rdentirea ,hospital ,schesioo, Urbalal a, Supermarket ,the mall, gas ,High-speed service area, Scenic spot ,factory, and many more.
Video factory inspection :
able to provide
type of sales :
New products in 2021
Product core components :
Biofilm filler carrier, aeration (agitator) system, effluent retention filter screen system, air lift sludge return system, etc.
Service system :
Video technical support, on-site installation, commissioning and training, online support
colour :
green
Control :
automatic
Advantage :
40 years of sewage treatment equipment manufacturer
Description

New, Efficient And Integrated Domestic Sewage Treatment Equipment Wastewater Treatment Plant

Product Description
MSC-MBBR distributed sewage treatment integrated device (hereinafter referred to as “MSC-MBBR”) is for the problem of distributed sewage treatment in School, Gas station, tourist attractions, Hospital, Slaughterhouse, Village, Residential area, Office building, Farming industry, Office and military, Hotel , Commercial,etc. On the basis of introducing, digesting and absorbing foreign advanced technologies, a new type of high-efficiency integrated sewage treatment equipment has been developed through technological optimization and combination.


Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m


Process Comparison
Commonly used processes for decentralized sewage treatment

Index

Crafts

 Footprint(m2/m3) Construction costs(Yuan/m3) Operating costs(Yuan/m3) Applicability Operation and Maintenance Water stability Sludge production Remarks
A/O or A2/O process 1.5～2 3000～5000 0.4～1.0 It is suitable for areas with general economic conditions and general effluent quality requirements. The process operation link is more complicated and requires certain operation management experience. Easier to repair. Poor impact resistance and general water stability More
Rotating biological contactors 2～3 2500～4000 0.5～1.4 Suitable for locations with general economic conditions and general effluent quality requirements, far away from residential areas The process is simple, and the operation and management are more convenient. Weak water adaptability More
MBR 1.2～2 7000～15000 1.2～2.0 Suitable for areas with better economic conditions and high water quality requirements A higher level of self-control is required, and the membrane modules need to be flushed and replaced regularly. Strong water quality adaptability, good effluent stability Less
Biological treatment + constructed wetland ≥10 4500～6000 0.3～0.6 It is suitable for areas with abundant land resources, low influent pollution load or need for further advanced treatment of effluent. Small craft operational aspects, operation and management more convenient. Wetland plants require professional maintenance. Average effluent stability Less
MSC-MBBR 0.4～0.8 4000～6000 0.35～0.6 It is suitable for areas with general economic conditions and general effluent quality requirements. Simple operation and maintenance, equipment to run automatically, without someone on duty. Strong adaptability to water quantity and quality, stable water output. Less Recommend

Comparison and Selection of Distributed Wastewater Treatment Process
1. The MSC-MBBR process has the outstanding advantages of small footprint, good effluent stability, strong impact load resistance, convenient management and maintenance, and low operating cost. It conforms to the decentralized sewage treatment "less construction investment, good treatment effect, and low operating cost" Requirements.
2. MSC-MBBR is simple to operate and maintain, can implement remote monitoring and control, and realize cluster networking, which can realize unified operation, hierarchical supervision, unified management, and division of labor.
3. MSC-MBBR is suitable for the upgrading and transformation of treatment stations that are not up to standard. Suspended fillers are added to the old biological reaction tank, a screen is set at the outlet, and the sludge return mode is slightly adjusted, and it can be transformed into MSC-MBBR. The transformation is the same as the new construction process, and it also facilitates unified operation and unified management.


Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m

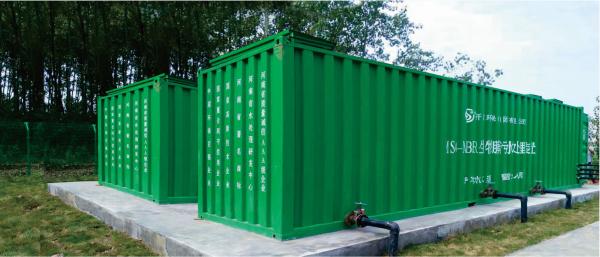

Our Projects
In 2019, our company undertook the integration project of rural sewage treatment in Quanjiao County in PPP mode.
Including the construction and operation of sewage treatment facilities in 5 central villages (with an implementation scale of 190 tons/day), and the transformation and operation of 23 beautiful village sewage treatment facilities, with a total scale (2810 tons/day).
Mainly use three specifications of MSC-MBBR equipment of 75 tons/day, 150 tons/day and 250 tons/day, a total of 38 MSC-MBBR equipment, with a total processing capacity of 3000 tons/day.

Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m
Slaughterhouse Integrated Waste Water Treatment Machine 1.38kW 7.3×2.7×2.9m

Implementation Effect
meet the discharge requirements, "Urban Wastewater Treatment Plant Pollutant Discharge Standard" GB18918-2002 standard, township resident reaches level A. Central villages and village-level residential areas reach level B. The MSC-MBBR equipment realizes an eco-environmental protection and integrated process route.
