Hospital Wastewater Treatment Plant,Buried Domestic Wastewater Treatment Equipment

Product Description

High quality underground human domestic package wastewater treatment is an underground plant which adopts the advanced Biological technology and the company’s scientific research and engineering practice result, it can efficiently remove nitrogen and phosphorus .
The device is characterized by the stable performance, effective treatment, economical investment, automatic operation, convenience of maintenance and small occupying space. There is no need for construction, neither heating and heat preservation.The surface can be used as green land or square land.It also can be placed on ground based on client's requirement.

As the most efficient sewage treatment device, it is widely used in treating the sewage in the area of senior hotels, village districts and residential districts, etc. The water after treatment would meet the national emission standards. The water after be treated can be used to irrigation.

Process Characteristics

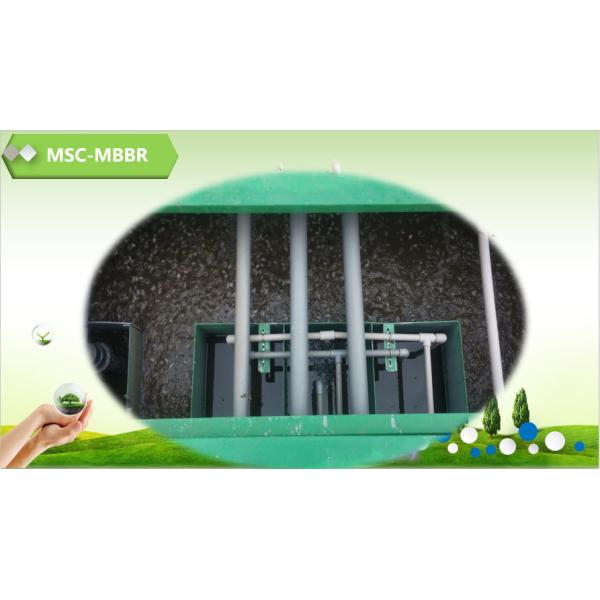

1. MSC-MBBR is to make up for MBBR's poor dephosphorization effect. Kaiyuan Group combined MBBR with the denitrification and dephosphorization effect process and improved the combined process.

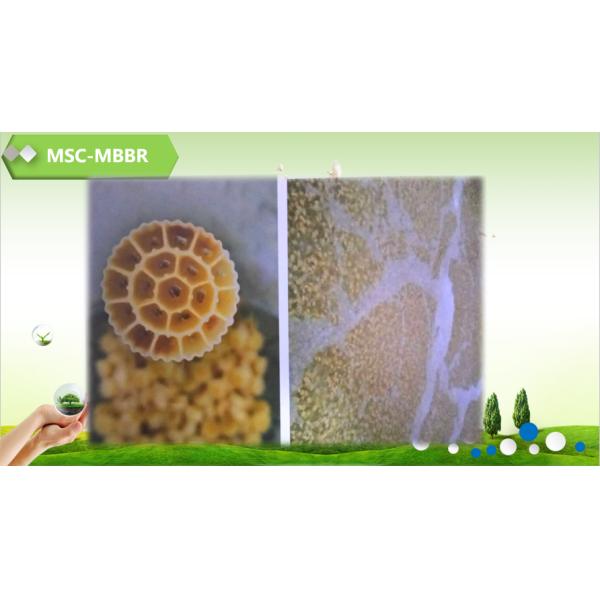

Suspended fillers are added to the aerobic tank to increase biomass and biological species, thereby improving treatment efficiency.
2. Since the density of the filler is close to that of water, it is in a state of complete mixing with water during aeration, and the environment for microbial growth is gas, liquid, and solid. The collision and shearing effect of the carrier in the water makes the air bubbles smaller and increases the oxygen utilization rate. In addition, each carrier has different biological species inside and outside, with some anaerobes or facultative bacteria growing inside, and aerobic bacteria outside, so each carrier is a micro-reactor, so that nitrification and denitrification reactions exist simultaneously , Thereby improving the treatment effect.

Suitable for comparison of domestic sewage treatment processes in hospitals, hotels, hotels and scenic spots

Product Advantages

The MSC-MBBR process has comprehensive advantages in the following aspects:

1. Intelligent and precise aeration, air lift sludge return control;

2. Application of sludge gas stripping backflow technology, more energy-saving;

3. The noise in the boundary area is less than 40dB, and there is no peculiar smell;

4. Energy consumption 0.3-0.5kWh/m3 sewage;

5. Occupying 0.4-0.8m2/m3 sewage;

6. The equipment runs automatically without special personnel on duty;

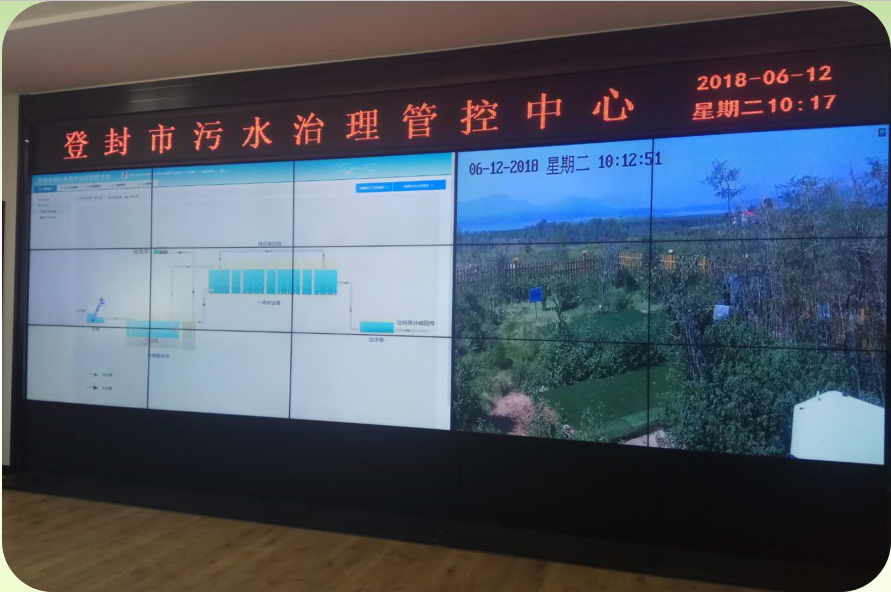

7. It can implement remote monitoring and control, and realize cluster networking and remote central monitoring; 8. The equipment can be integrated and modularized, which greatly shortens the construction week. Factory standardized prefabrication, quality is more guaranteed;

9. Suspended packing and double-layer ball packing have large biomass, easy to hang film, no balling, no blockage.

10. The main material of the equipment box adopts special steel plate for container, which has good anti-corrosion effect of weather-resistant steel, second only to stainless steel in anti-corrosion, and comparable to stainless steel after anti-corrosion, and has a long service life;

Application scope

Hotel,restaurant,community etc domestic sewage treatment recycle
Industrial and mining enterprises,remote village,sentry ,tourist area etc domestic sewage recycle.
Each kind of industrial sewage (similar to domestic sewage) :such as hospital sewage,pharmaceutical sewage ,washing sewage,food sewage etc

Our Projects

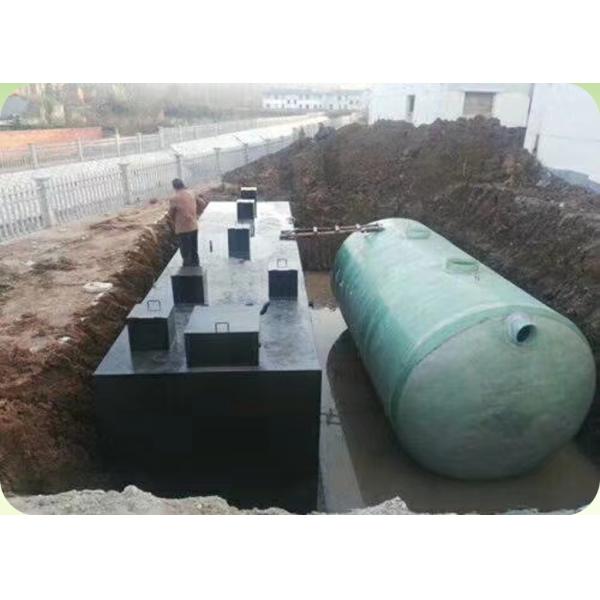

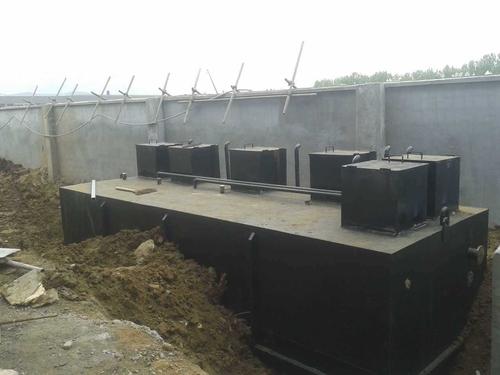

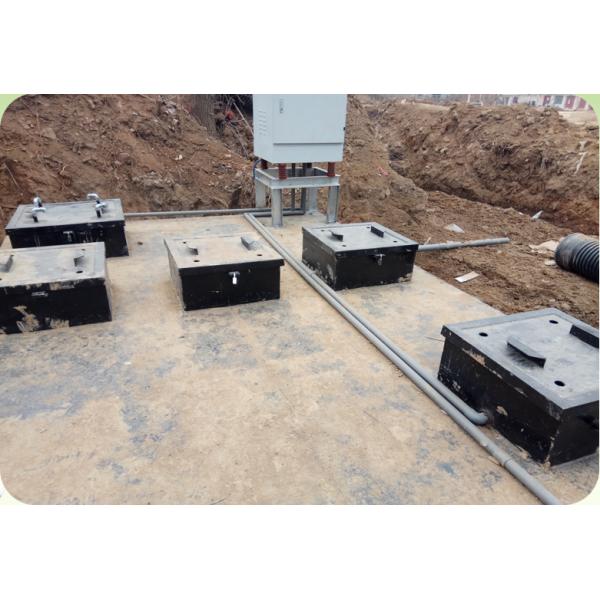

Dengfeng City, Henan Province (Buried)

1. The villages and towns in Dengfeng City did not have newly built sewage treatment facilities, but the new rural sewage treatment terminal equipment was built due to the urging of the Zhengzhou Municipal Government;

2. The implementation villages are located in mountainous areas, some villages are scattered, and the sewage treatment scale is small (5 tons, 10 tons, 20 tons);

3. All use underground installation form;

4. Use carbon steel anti-corrosion structure;

5. There are no flush toilets in the local area, and the sewage concentration is high;

6. The process is required to have the characteristics of high efficiency and stability, high processing efficiency, and strong impact load resistance;

7. Facilitate unified management and establish a long-term operation and management mechanism.
