Domestic Sewage Treatment Plant, MBBR Portable Sewage Treatment Equipment, Used For Sewage Treatment In Gas Stations, Hi

Product Core Components

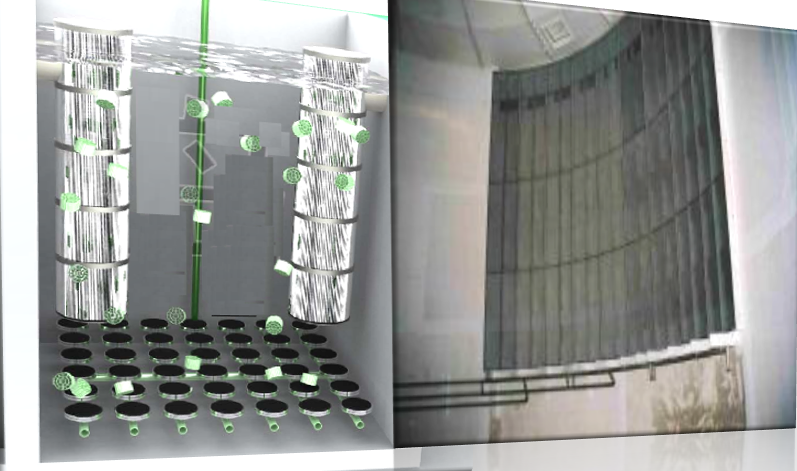

1. Aeration (agitator) system: The aeration system adopts a porous pipe system with small and medium pores. The air distribution is uniform, and the air volume can be adjusted and controlled, so as to ensure the irregular movement of the biological filler in the reactor, and continuously block and break the rising bubbles. In the anaerobic reaction tank, a banana blade-shaped submersible mixer is used. Under uniform and slow stirring, the biological filler and the water body produce a swirling water flow state. To achieve the ideal flow state of uniform mixing, while protecting the biological filler from damage during the mixing process.

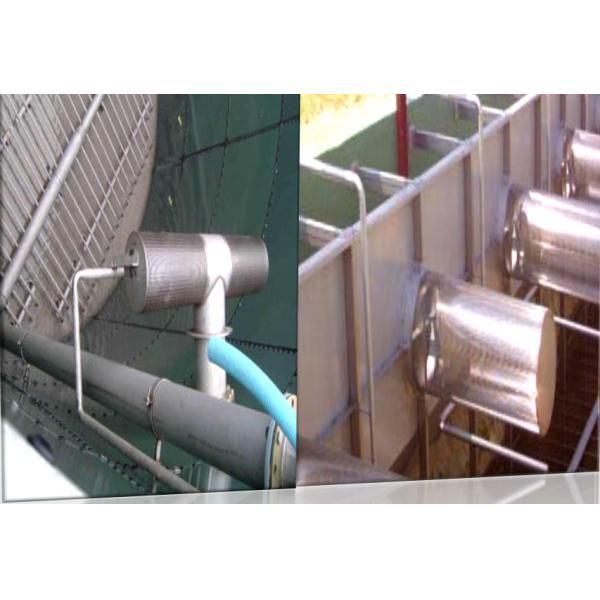

2. Effluent interception system: The effluent interception net keeps the biological filler in the biological pond while maintaining the well-designed flow pattern in the reactor. The form, pore size, and installation position of the interception net are different due to different biological fillers, and the outlet area depends on the unit outflow load of different pore sizes. The interception net device has a porous flat plate or a winding welded tube type (vertical or horizontal direction)

MSC-MBBR and MBR process comparison

Process content	Tablet MBR	Hollow fiber MBR	MSC-MBBR
Treatment mechanism	Activated sludge method + membrane separation	Activated sludge method + membrane separation	Carrier fluidized bed biofilm technology, activated sludge method + biofilm
Inlet fine grille	3mm, large flux, less equipment	1mm, small flux, more equipment	5mm, large flux, less equipment
Concentration of sludge in treatment	10000-15000mg/L	6000-8000 mg/L	4000-8000mg/L
Differential pressure across the membrane	Small, can rely on gravity flow, low energy consumption	Large, cannot rely on gravity flow, high energy consumption	No need for membrane separation, very low energy consumption
Cleaning air volume	Small, low energy consumption	Large, high energy consumption	No clogging, no need to backwash
Maintenance convenience	Convenient, single film can be repaired	Inconvenient, replace the whole group	Simple operation and maintenance, only need to strengthen the biofilm management on the filler

Product advantages

1. MSC-MBBR integrated sewage treatment equipment integrates biochemical, sedimentation, disinfection and other functional units, which can realize high-efficiency, low-consumption and modular treatment of sewage. It is an industrialized product with equipment, standardization and automation.
2. Intelligent and precise aeration backflow control, remote monitoring and control can be implemented, and cluster networking can be realized;
3. The noise in the boundary area is less than 45 dB, and there is no peculiar smell;
4. Low energy consumption, 0.3-0.5kWh/m3 sewage, no need to add chemicals;
5. The integrated equipment runs automatically without special personnel on duty, reducing subsequent maintenance and labor costs.

Global cooperation

The company actively promotes the development of international and domestic economic and technological exchanges and cooperation, and through cooperation with foreign companies, enables companies to go out and provide better services at home and abroad.

Enterprise Honor

1. Advanced Enterprise of the Ministry of Environmental Protection
2. National key enterprise in environmental protection industry
3. National high-quality products, high-quality products of the Ministry
4. National high-tech enterprise
5. "Contract-honoring and Promise-keeping" Enterprises in Henan Province
6. President Unit of Henan Environmental Protection Industry Association
7. Famous trademark of Henan Province
8. Henan Province Quality and Integrity AAA Grade Industrial Enterprise
9. Famous brand products in Henan Province
10. Henan Science and Technology Progress Award
11. Excellent private enterprise in Henan Province
12. The Mayor of Xinyang City Quality Award
