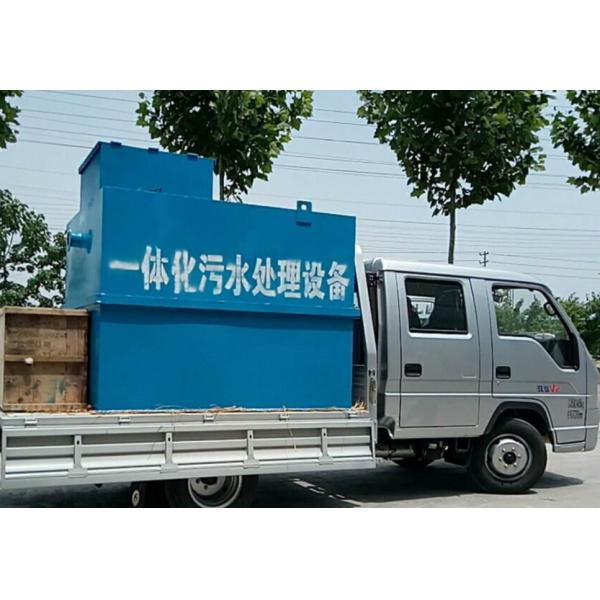

Environmental Septic Tank- Underground Sewerage Treatment Process
Product Description
The device is an underground plant which adopts the advanced Biological technology and the company’s scientific research and engineering practice result, it can effectively remove BOD5,COD and NH3-N. The device is characterized by the stable performance, effective treatment, economical investment, automatic operation, convenience of maintenance and small occupying space. There is no need for construction, neither heating and heat preservation.The surface can be used as green land or square land.
As the most efficient sewage treatment device, it is widely used in treating the sewage in the area of senior hotels, villa districts and residential districts, etc. The water after treatment would meet the national emission standards.
Product Features
1. Able to treat comprehensive wastewater from domestic systems and similar organic wastewater;
2. It adopts glass fiber reinforced plastic and stainless steel structure, has excellent characteristics such as corrosion resistance and anti-aging, and has a service life of more than 10 years;
3. The whole set of devices is simple to construct and easy to operate. All mechanical equipment is automatically controlled, and all devices can be set above or below the ground;
Product Advantages
1. Ensure the quality of the effluent, and the effluent can meet the discharge requirements of Class B or Class A
2. Save 55% of your energy consumption and reduce operating costs
3. Reduce your footprint by 48%
4. Save you more than 30% of construction costs
5. Easy management, safe and reliable operation, unattended and cloud control can be realized
6. Reduce 30% of sludge output and reduce the cost of sludge treatment and disposal
Technological Process and Features
Technological Process:
Sewage → Grille → Regulating pond → MBR Bioreactor → Discharge(reuse)
1. Temperature: 5℃~45℃, average membrane aperture 0.10 μm.
2. PH: 2~12, membrane thickness: 40μm.
3. Outlet water turbidity: <1 NTU , outlet water SS <1mg/L.
4. Membrane area: 8m2, advised gas-water ratio: 25:1~30:1.
5. Operating pressure: -0.01 ~ -0.03MPa.
Applications
1. Hotels, restaurants, nursing homes, hospitals;
2. Residential districts, villages, and market towns;
3. Stations, airports, seaports, ships;
4. Factories, mines, troops, tourist spots, scenic spots;
5. Various industrial organic wastewater similar to domestic sewage.
Product Model
| Treatment capacity (m3 / h) | 5 | 10 | 20 | 30 |
| Blower | Model | CK-80 | CK-80 | CK-80 | CK-100 |
| Power (kw) | 1.5 | 4 | 5.5 | 5.5X2 |
| | Power (kw) | 0.75 | 1.1 | 2.2 | 3 |
| Flow rate (m3 / h) | 5 | 10 | 20 | 30 |
| Lift (m) | 8 | 8 | 8 | 8 |
| Equipment size | Length × width × height (m) | 10×2.5×2.75 | 14×2.7×3 | Customized split box |
| we can design different sizes according to different water capacity (m3 / h) |
FAQ
Q:How long is your warranty?
A:One year after the arrival of the goods. During this period, any damage caused by non-human factors, we will send the damaged parts free of charge.
Q:Do you provide OEM service?
A:Yes, Any required logo is available.
Q:What certificates do you have?
A:ISO/CE/SGS.
Q: Can you meet my special requirements for my products?
A: Yes, we have a professional design team. We can provide drawings and design plan according to your requirements.
Q:What parameters do I need to provide for the inquiry?
A:Please inform the source of the sewage, water quality, flow rate, operating time, slot opening size(for the filter), total sludge (for the dewatering machine), we will choose the appropriate model and price for you.
Q:Do you offer after-sales service?
A:Yes. Engineers with more than ten years of after-sales experience will be dedicated to serve you.
