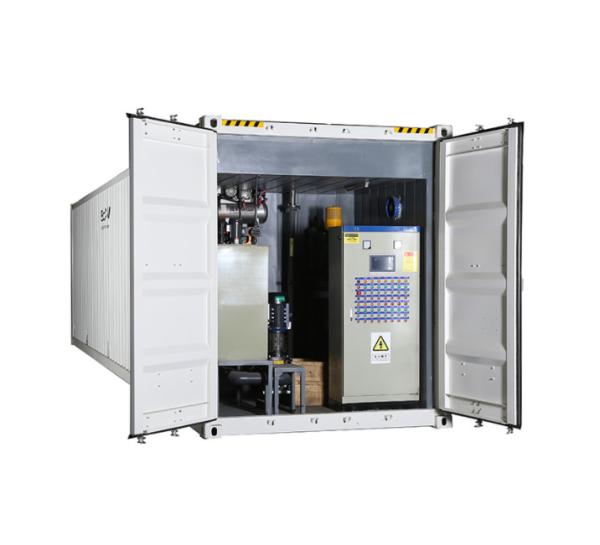

Farm Wastewater Treatment MBBR Plant/ Package MBBR Treatment Equipment

Product Description

Moving Bed Bio-film Reactor( referred to as MBBR) is a kind of new bio-film reactor has high efficiency ,strong ability to loading, high treatment efficiency, sludge age ,less residual sludge ,nitrogen and phosphorus removal effect is good, no sludge expansion, has been widely used in foreign countries; biological suspended filler is a core component od MBBR process; The development, production of high activity of suspended packing, is to ensure the effective operation of the MBBR process.

The core of the MBBR process is to realize the full fluidization of the suspended carrier filler to achieve the purpose of strengthening the treatment of pollutants. In the actual application of the MBBR process, the main factors that need to be considered are the type of the biochemical tank, the dosage of suspended fillers, the aeration system, the interception screen, and the propeller.

Features

1.lt performs better in purification efficiency and stability, BOD, COD, N and P all can be removed. lt can be placed on ground or be buried underground.the upper land can be used for lawn and plants, safe and environment friendly. Fully automatic controlling and excellent work stability with long service life.

2. It is mainly realized by the aeration system of the aerobic zone of the biochemical tank. An appropriate aeration system in the aerobic zone can ensure the fluidization effect of the biological carrier fluidized filler, ensure that the fluidized filler flows up and down and back and forth in the water body, so that the filler and sewage can be fully mixed, collided, and contacted, which is effective Complete the three-way contact, exchange, and adsorption processes of pollutants, water and gas.

3. The specific gravity of the filler is generally selected to be 0.94-0.97. During the cultivation period, a large amount of biofilm will slowly adhere to the surface of the filler. The greater the amount of adhesion, the greater the specific gravity.

4. As the most efficient sewage treatment device, it is widely used in treating the sewage in the area of senior hotels, villa districts and residential districts, etc. The water after treatment would meet the national emission standards.

Product Number

MBBR equipment advantages

1. The equipment runs automatically without special personnel on duty;

2. It can implement remote monitoring and control, and realize cluster networking and remote central monitoring; 5. The equipment can be integrated and modularized, which greatly shortens the construction week. The factory is standardized and prefabricated, and the quality is more guaranteed;

3. Suspended packing and double-layer ball packing have large biomass, easy to hang film, no balling, no clogging.

4. The main material of the equipment box adopts special steel plate for container, which has good anti-corrosion effect of weather-resistant steel, second only to stainless steel in anti-corrosion, and comparable to stainless steel after anti-corrosion, and has a long service life;

5. The equipment box adopts fully automatic robot welding to ensure the quality of the weld seam. The rust removal adopts fully automatic mechanical sandblasting, and the rust removal level is not lower than Sa2.5 to ensure durability;

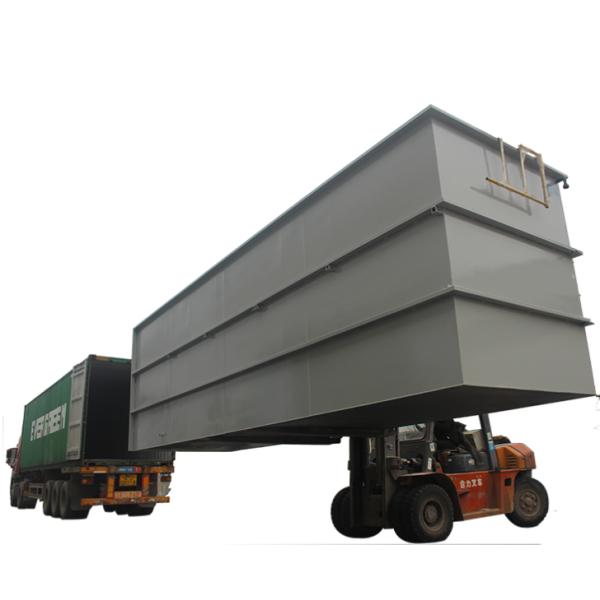

6. The equipment box adopts the form of corrugated board, which has greatly enhanced strength, light weight, and is convenient for transportation, installation and debugging;

7. The equipment in the station is automatically controlled, and the equipment in the station can be monitored remotely, and the centralized remote monitoring of multiple stations, management, laboratory testing, and technical platforms are centralized by region;

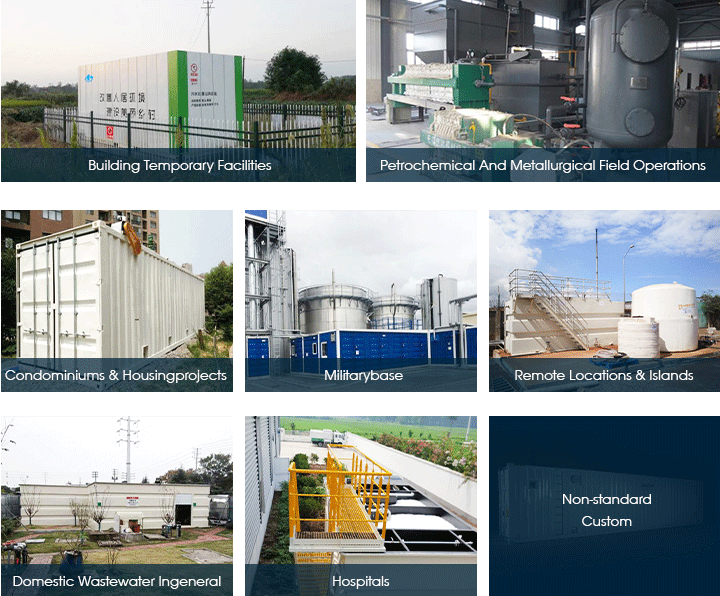

Application
