Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine
Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine
Specifications
Brand Name :
Dongfeng Electric
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T
Packaging Details :
wood box
Product name :
40000kw Bulb Hydro Turbine Generator
Bulb tubular type Rated power（KW） :
40000
Axial-extension tubular typ Rated power（KW） :
450~2700
Head :
23m
runner diameter :
670cm
rotating speed :
750.4rpm
Description

Hydroelectric Power Plant 40000kw Bulb Hydro Turbine Generator

3000KW Bulb Tubular Type Rated Power Bulb Hydro Turbine Generator

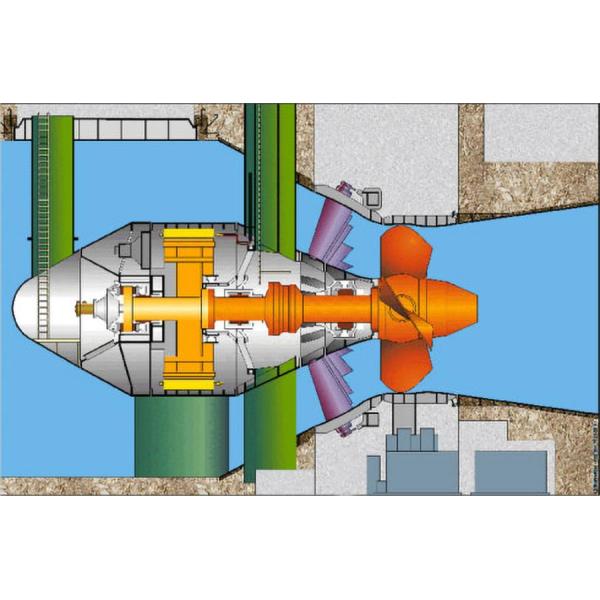

The introduction of tubular type hydro turbine

After many years of design, manufacturing and actual operations, and the cooperation with leading international companies in possessing tubular machine technologies such as Andritz Company and Hitachi Company, our company has accumulated rich experience in the unit design, manufacture and service, forming the hydro turbine unit with characteristics of Dongfeng.

The company has provided a total of more than 40 power stations with cross-flow type hydro turbine units with unit capacity of about 40MW and below, among which the largest diameter is 6.7m.

Technical parameters

Bulb tubular type Rated power(KW):3000~40000
Axial-extension tubular typ Rated power(KW):450~2700

Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine

Our typical HPP project references

Turbine Type Type Model Typical Performance
Francis Tianhuaban HPP,Yunnan HLD294-LJ-340 Max. single installed capacity 99MW
SF99-28/6800
GD3 HPP,Ethiopia HLD892-LJ-245 Max. running head Hmax=273m
SF85-14/5000
Shidi HPP , Chongqing HLA551C-LJ-475

Diameter of runner=4750mm

Max. Foundation=9900mm
SF60-56/9900
Pangduo HPP, Tibet HLD420D-LJ-318

Highest altitude 4100m

Head variation Hmax/Hmin=1.96
SF40-32/6800
Axial-flow Hongfa HPP, Guangdong ZZD505A-LH-450 Max.single installed capacity 50MW
SF50-32/6800
Srepok4 HPPVietnam ZZD471-LH-580 Max. Diameter of runner D1=5800mm
SF40-52/9000
Bulb Dafutan HPP,Hunan GZB1000-WP-670 Max.single installed capacity 40MW Max.Diameter of runner
SFWG40-70/7450
Pelton Nabang HPP, Yunan CJ1085-L-170/6×14.8
Manufacturing capacity
Hydroelectric Power 40000kw 6.7m Diameter Bulb Hydro TurbineHydroelectric Power 40000kw 6.7m Diameter Bulb Hydro TurbineHydroelectric Power 40000kw 6.7m Diameter Bulb Hydro TurbineHydroelectric Power 40000kw 6.7m Diameter Bulb Hydro Turbine
