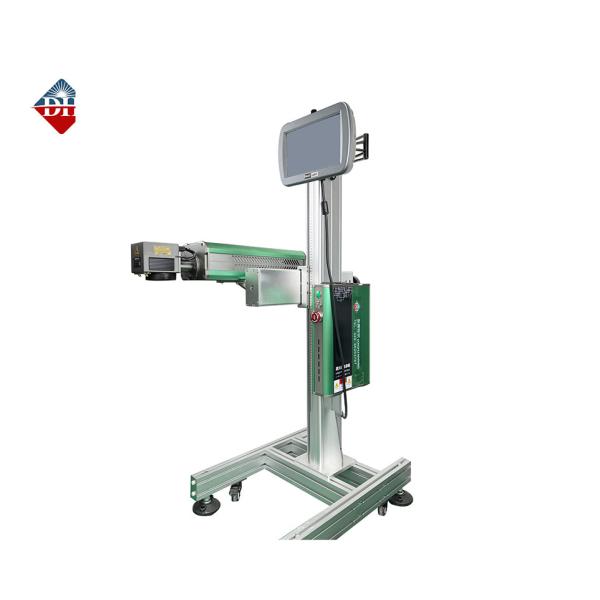

3-axis fixed-point cabinet type carbon dioxide laser marking machine
3-axis fixed-point cabinet type carbon dioxide laser marking machine
3-axis fixed-point cabinet type carbon dioxide laser marking machine
3-axis fixed-point cabinet type carbon dioxide laser marking machine
3-axis fixed-point cabinet type carbon dioxide laser marking machine
3-axis fixed-point cabinet type carbon dioxide laser marking machine
3-axis fixed-point cabinet type carbon dioxide laser marking machine
3-axis fixed-point cabinet type carbon dioxide laser marking machine
Specifications
Brand Name :
DH
Model Number :
DH3040
Certification :
CE/ISO9001
Place of Origin :
Xi'an City, Shaanxi Province, China
Payment Terms :
T/T, Western Union
MOQ :
5
Product Name :
Co2 Laser Inkjet Printer
Type :
Fixed-Point Laser Machine
laser :
carbon dioxide laser
Laser wavelength :
1064nm
Beam quality㎡ :
≤1.2
Pulse frequency :
0-25KHz
Exit beam diameter :
1.8±0.2mm
Output power stability :
±5%
Marking range :
110-300mm optional
Print depth :
0.01-0.6mm (depending on power and material)
Marking speed :
≤10000mm/s
Repeat accuracy :
±0.001mm
Minimum line width :
0.015mm
Minimum characters :
0.15mm
Laser output power :
40W/60W (optional)
Description

Fixed-Point Laser Machine

Describe

3-axis fixed-point cabinet type carbon dioxide laser marking machine
Clear effect, simple operation, and the ability to process various non-metallic materials such as leather, plastic, and glass. Compared with traditional mechanical processing methods, laser engraving has the advantages of non-contact, pollution-free, fast speed, and high accuracy. It is one of the advanced laser marking equipment.

Features

Applicable materials: non-metallic materials, bamboo and wood products, acrylic, PVC, leather, paper products, rubber products, silicone and other materials
Wide application: Donghui 3040 laser machine is widely used for marking and cutting graphics and text in clothing accessories, leather bag decorations, food and beverage packaging, wood furniture, electronic components, handicraft processing, electrical equipment, glass and stone processing and other fields.

Spefication

Technical Parameters

Laser parameters

 Laser output power 40W/60W (optional)
laser carbon dioxide laser
Laser wavelength 1064nm
Beam quality㎡ ≤1.2
Pulse frequency 0-25KHz
Exit beam diameter 1.8±0.2mm
Output power stability ±5%

Optical properties

 Marking range 110-300mm optional
Print depth 0.01-0.6mm (depending on power and material)
Marking speed ≤10000mm/s
Repeat accuracy ±0.001mm
Minimum line width 0.015mm
Minimum characters 0.15mm

Usage environment

 cooling method 40w air cooling/60w water cooling
Maximum power consumption ≤550W
Input power 240V/50Hz (can be connected to 110V)
temperature humidity 5-40℃, 30%≤RH≤85%, non-condensing

Other parameters

 operating system Windows operating system
file format All fonts/fonts in the Windows operating system font library (standard USB input)
Dimensions 80*78*145cm
equipment weight About 80kg

Printing effect

3-axis fixed-point cabinet type carbon dioxide laser marking machine3-axis fixed-point cabinet type carbon dioxide laser marking machine
