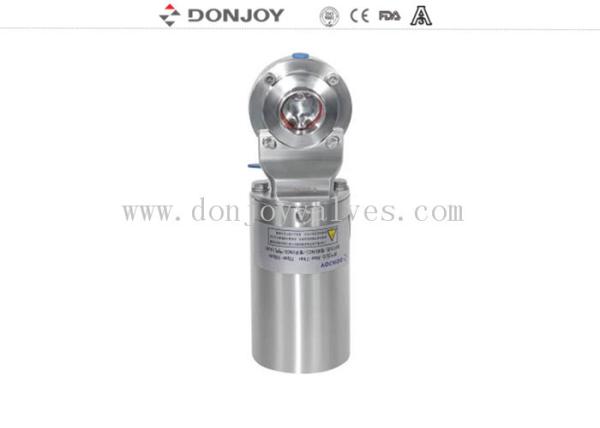

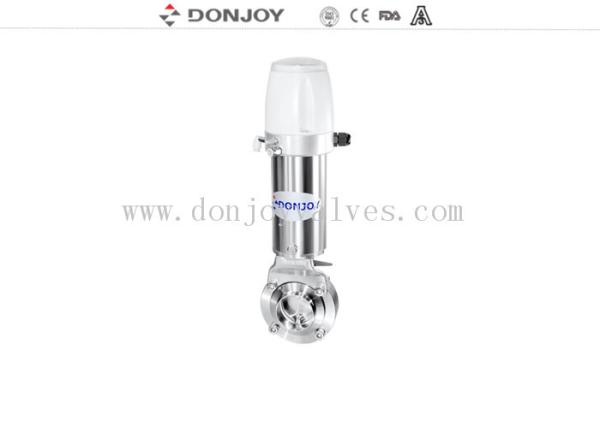

FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
Specifications
Brand Name :
DONJOY
Certification :
CE,3A,FDA
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Product Name :
Pneumatic butterfly valve with C-TOP
Materials :
304 / 316L
Size :
DN10 - DN300, 1/2" - 12"
Operation :
Actuator
Connection :
welding
Seal standard :
3A certification
Butterfly disc :
Forging
Description

FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food

specifications

Product Name:

sanitary pneumatic butterfly valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar,PN16

Max.Working Temperature:

120 degree C

Available size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp / welding / thread / special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual, Pneumatic, Electric



Handle application:

Two-position handle, three-position handle, four-position
pull handle, multi-position plastic handle and multi-position,stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Feature of structure:

Pneumatic 3pcs butterfly valve + sensor

Option:

With mini type C - TOP


Classification
Mixture proof butterfly valve;
Double seat butterfly valve;
Single-seat butterfly valve;
Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining
Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor

Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;
Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.

Packaging Details
Bubble pack for each valve.
outside packing is carton or plywood cases.
Or as per the request of customers.

Delivery details
Usually within 20 days after receiving T/T down payment.
Drawing
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food

Performance of different sealing material

FDA Stainless steel SUS304 double acting sanitary grade pneumatic clamp butterfly valves with controller for food
