Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1-4 for tank bottom union
Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1-4 for tank bottom union
Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1-4 for tank bottom union
Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1-4 for tank bottom union
Specifications
Brand Name :
DONJOY
Certification :
CE/FDA/ISO/3A
Place of Origin :
zhejaing, china
MOQ :
30PCS
Payment Terms :
T/T,L/C, Credit Card
Packaging Details :
Carton, Wooden Case
Price :
5-100USD/PC
Supply Ability :
100000
Delivery Time :
10-30 working days
Brand :
DONJOY
SIZE :
1*-4"
Connection :
Welding
Mateirals :
1.4301/304,1.4404/316L
Hs Code :
7307290000
Description

Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1"-4" for tank bottom union

Quick Detail

Hygienic aseptic connection/union

Materials: 1.4301/304,1.4404/316L

Polished: CNC

Gasket: Silione, Viton, EPDM, PTFE.

Size:1/2"-4", DN10-DN100

Standard: DIN, 3A,SMS, ISO,ISO1127

Gakset: EPDM, Silicone, NBR(FDA Certificate)

Specification

Product Name:

Hygienic aseptic connection, From 1"-4" for the tank bottom connection,

Material:

AISI304, AISI316L

Size:

1"-4"

Finish:

CNC

Connection:

Flange,Bolt

Standard:

DIN, SMS,3A,ISO,ISO1127

Certificate:

CE, ISO9001/2008, 3A

Application scope:

Dairy, food, beer, beverage, pharmacy, cosmetic, etc

Packaging Details:

Shrink wrapped - carton - pallet . Or as per the request of customers

Application

1.The connector is a connecting device with clamp connector, used for connecting to tank

equipment. the products is simple design, excellent sterile performance.

2.Quick install various instruments and valves with TC connector to tank equipment. It's

standard. Zero Dead Angles, and the repalcement of the instrument is very simple and

convenient. Connector have two different designs:

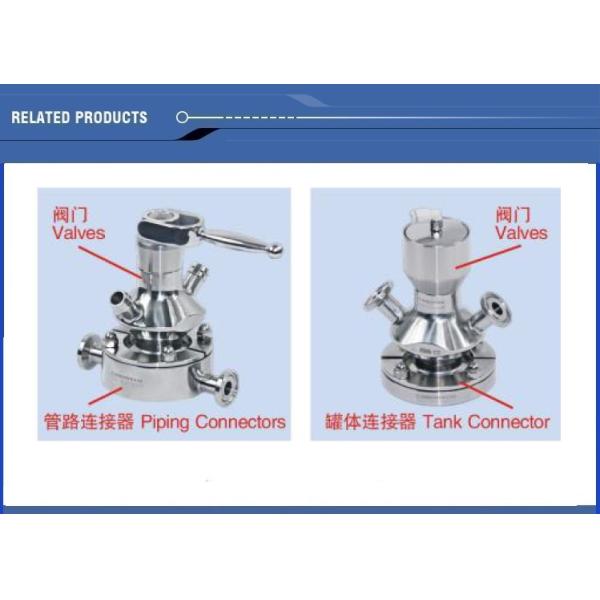

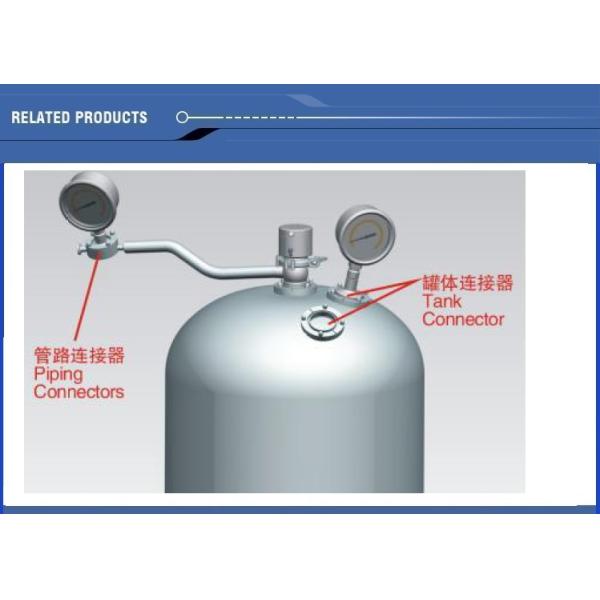

Tank connector

1/2"-4", DN10-DN100, Tank connector is mainly used for eliminating the dead angle, which

appears when veriety of valves and instruments with TC clamp connector mounted to the tank

equipments.

Piping Connectors

1/2"-4",DN10-DN100,Piping connector is mainly used to solve the dead angles which cuase by

complex pipe connections.

Payments Term

Total amount <=1000USD, 100% in advance. Total amount>=1000USD, 50% T/T in advance

,balance before shippment.

Term of conditions

EXW PRICE, FOB, CIF....

Packing

Carton, Wooden Case, Pallet.

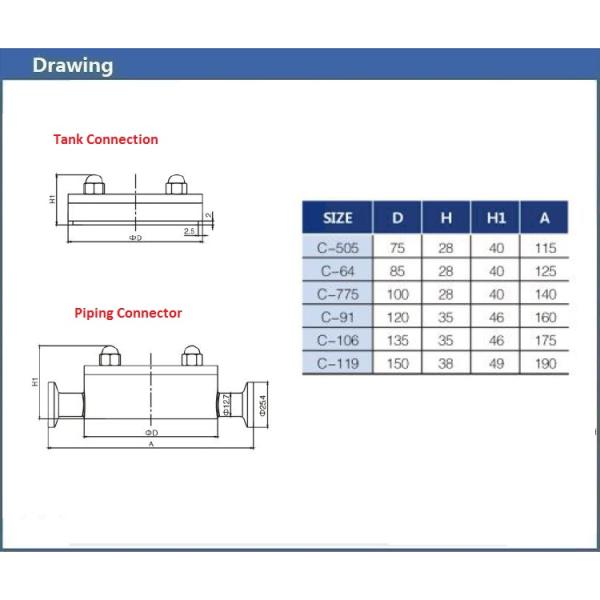

Product drawing

Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1

Product display

Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1

Hygienic Aseptic Connection Stainless Steel Sanitary Fittings From 1
