Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
Specifications
Brand Name :
DONJOY
Model Number :
NO.MINI - ZZ - K
Certification :
CE,3A,FDA
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Product Name :
Mini pneumatic diaphragm valve with plastic handwheel
Suitable temperature :
-10 to 120 degree (EPDM)
Operation :
plastic handwheel
Gasket optional :
EPDM/ SILICONE/ FPM
Surface polishing :
Ra<0.8um
Connection :
welding/clamp/flange/ thread
Description

Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel

Specifications

Product Name:

316L SS Mini Direct way Clamp Diaphragm Valve

Valve Body Material:

SS316L

Seal Material:

Single sillcone gasket/ Adhesive PTFE+EPDM/Two pieces PTFE+EPDM

MaxWorking Pressure:

8 Bar

Max.Working Temperature:

150 degree C

Availably size:

1/4”-3/4”, DN6-DN15

Availably connection:

Clamp/weld/thread/special connection

Availably standard:

3A/BPE/DIN/ISO/IDF

Operated:

Pneumatic,Manual

Availably structure:

Straight, tee, U-type, tank bottom

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

Leading design:

Dead conner ＜ 3D

Various combinations:

GMP and SAP structure

Description

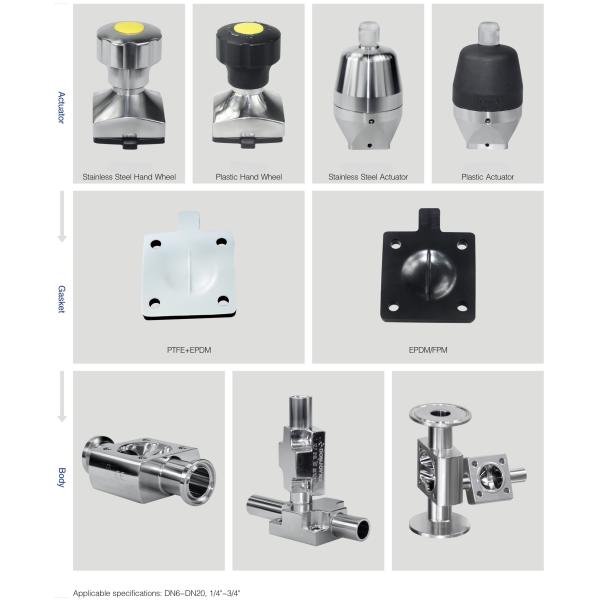

Various configuration of Diaphragm valve

1. Didaphragm valve with Pisitioner/Process Controller(IL-TOP)

2. Diaphragm valve with Control Unit(C-Top)

3. Valve position Regulator

4. Position Sensor Module

5. Plastic Handle

6. Stainless steel handle

7. Stianless steel acutor

8. Electric Diaphragm valve

9. Plastic Acutor

10. Body: Casting / Forging

Mini - type diaphragm valve - with various combination

Mini Direct way Clamp Sanitary Diaphragm Valve with plastic handwheel
