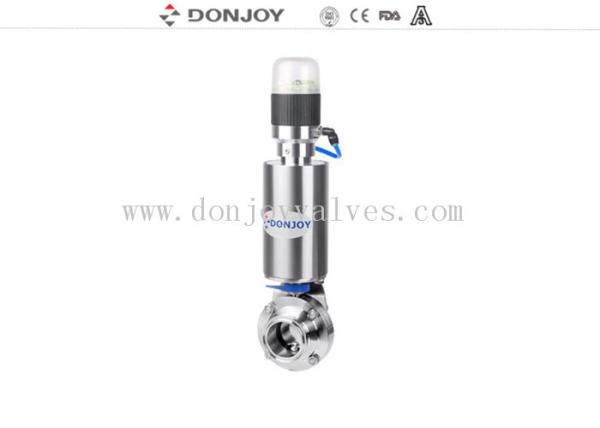

FDA Stainless steel 6 inch pneumatic butterfly valve sanitary grade for fluid control
FDA Stainless steel 6 inch pneumatic butterfly valve sanitary grade for fluid control
FDA Stainless steel 6 inch pneumatic butterfly valve sanitary grade for fluid control
FDA Stainless steel 6 inch pneumatic butterfly valve sanitary grade for fluid control
Specifications
Brand Name :
DONJOY
Model Number :
NO.
Certification :
CE,3A,FDA
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Supply Ability :
1000pcs per month
Delivery Time :
5-30 working days
Product Name :
Piston sanitary pneumatic butterfly valve with C-TOP
Materials :
304 / 316L
Size :
DN10 - DN300, 1/2" - 12"
Operation :
Actuator
Connection :
welding
Seal standard :
3A certification
Butterfly disc :
Forging
Description

FDA Stainless steel sanitary grade butterfly valves for fluid control


Specifications

Product Name:

sanitary pneumatic butterfly valve

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

5Bar

Max.Working Temperature:

120 degree C

Available size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp / welding / thread / special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual, Pneumatic, Electric

Handle application:

Two-position handle, three-position handle, four-position

pull handle, multi-position plastic handle and multi-position stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc

Feature of structure:

Pneumatic 3pcs butterfly valve + sensor

Option:

With mini type C - TOP


Classification
Mixture proof butterfly valve;
Double seat butterfly valve;
Single seat butterfly valve;


Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double-acting
Inductive position sensor
C - TOP control head
Position sensor
Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;


Connection
SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.
Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.


Drawing
FDA Stainless steel 6 inch pneumatic butterfly valve sanitary grade for fluid control

Performance of different sealing material
FDA Stainless steel 6 inch pneumatic butterfly valve sanitary grade for fluid control
