Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves
Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves
Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves
Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves
Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves
Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves
Specifications
Brand Name :
DONJOY
Model Number :
NO.
Certification :
CE,3A,FDA
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Product Name :
Butterfly valve of ball type
Materials :
301 / 304 / 316L
Size :
DN10 - DN300, 1/2" - 12"
Operation :
Electric
Connection :
welded
Feature :
With handle
Structure :
With electric actuator
Description

Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves

Specifications

Product Name:

Stainless steel sanitary level butterfly type ball valve with

electic actuator for fluid regulation

Valve Body Material:

SS304/316L

Seal Material:

EPDM (standard) FPM/SILICON/NBR, FDA177.2600

Max Working Pressure:

10Bar

Max.Working Temperature:

120 degree C

Available size:

DN10-DN300, 1/2"-12"

Available connection:

Clamp/welding/thread/special connection

Available standard:

3A/DIN/SMS/RJT/ISO/IDF

Operated:

Manual,Pneumatic, Electric

Handle application:

Two-position handle, three-position handle, four-position

pull handle, multi-position plastic handle and multi-position stainless steel handle

Control:

Smart valve positioner / C-TOP control / position sensor

Certificate:

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600, ISO

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, etc

Packaging Details:

Bubble pack for each valve. Outside packing are carton or

plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.

Material
The material connected with others: AISI 316L / 1.4404
The material in other parts: AISI 304
Seal ring: EPDM FDA 177.2600
Internal surface finish: Ra ≤ 0.8μm
External surface finish: CNC fine machining


Options
Gasket: NBR / MVQ / FPM
Pneumatic actuator of double acting
Inductive position sensor
C - TOP control head
Position sensor
Connection type: SMS, RJT, DIN, 3A, ISO, Clamped, welded and threaded etc.


Handle selection
Two-position handle;
three-position handle;
four-position pull handle;
multi-position plastic handle;
multi-position stainless steel handle;


Packaging Details
Bubble pack for each valve.
Outside packing is carton or plywood cases.
Or as per the request of customers.


Delivery details
Usually within 20 days after receiving T/T down payment.


Display

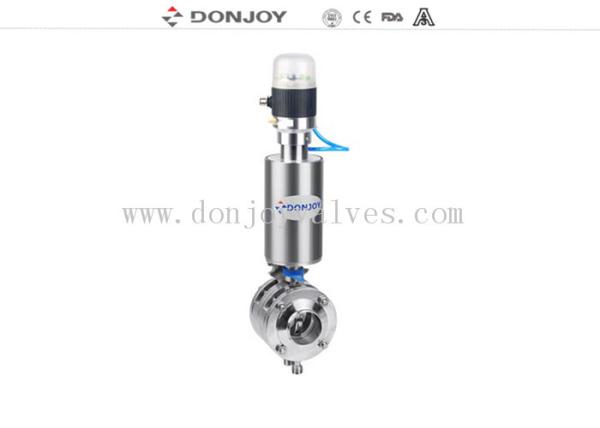

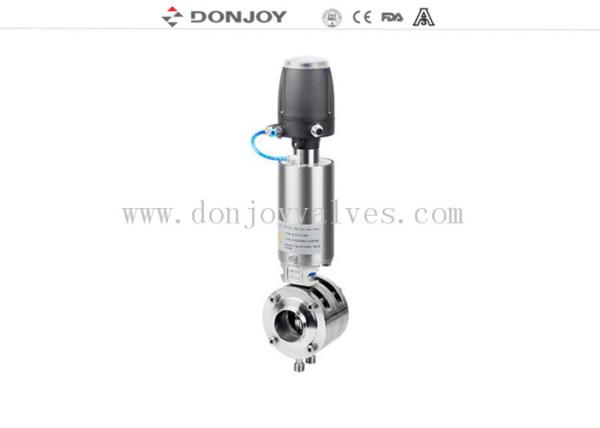

Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves

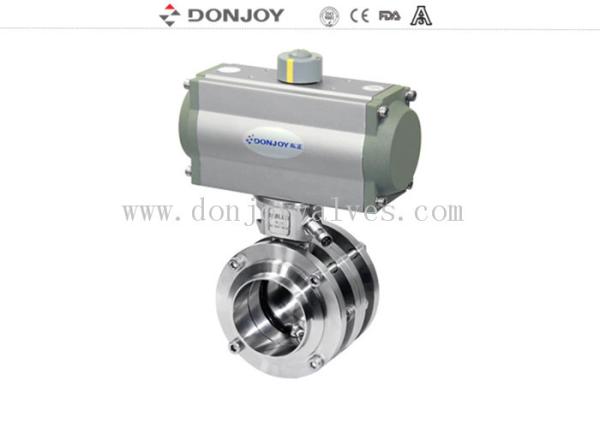

Electric actuator

Stainless Steel Sanitary Aluminum Actuator 3 Piece Flange Butterfly Valves
