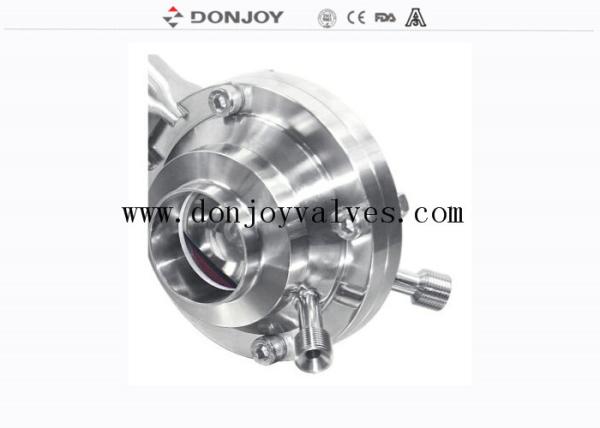

CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
Specifications
Brand Name :
DONJOY
Model Number :
NO.VQD100S1
Certification :
CE,3A,FDA
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T, LC, Credit Card
Packaging Details :
carton box
Product Name :
Ball Valve
Size Of Panel :
DN10-DN100,1/2"-4"
Operation :
Pneumatic, Control Head,Manual
Media :
304/316L
Connection :
Welded, Clamped, Thread, Flange
Description

3 INCH 1.4404 Sanitary Ball Valve manual butterfly type with pull

Manual Ball Valve,CIP Cleaning Ball, Pneumatica Butterly type ball valve, C-top Pneumatica Butterly type ball valve,Electrc ball valve, IL-Top type Ball vale, Proportinonal control Ball valve

Materials:AISI304/316L

Gasket: EPDM,

Seal:PTFE

Connection: Clamped, Thread, Welding

Standard: DIN,3A,SMS,ISO,IDF, RJT..

Polished: Ra0.8um

Outside Polished: CNC Machining

Specification

Product Name: DN50 1.4301 Sanitary Ball Valve manual butterfly type with CIP port
Valve Body Material: SS304 or SS316L
Seal Material: PTFE
Max. Working Pressure: 10Bar
Max. Working Temperature: 120 degree C
Availably size: DN25-DN100 or 1" - 4"
Availably connection: Weld,Clamp,Thread, Flange
Availably standard: DIN,SMS,3A
Ball Type: Directly
Operated: Manual,Pneumatic,Electric,control Head
Certificate: FDA,CE,3A,ISO

Applications:

Application :The butterfly-Type ball valve is installed in any to pipeline and enquipments for to controling. It is specially used in brewing industry.

Operating Principles

1. Free Maintenance

2.Portable and compact

3.Small Torquemoment

4.Drainble

5.Gasket complies with FDA 177.2600

6.Handle can be installed on the side of the valve body, no matter of the flow direction

7.Valve body can be replaced in any connections, And the length will not change.

Technical Specification

1.Max Temperature:121°C ,EPDM

2.Pressure: 10Bar

CIP Port DN50 1.4301 Manual Butterfly Sanitary Ball Valve
