DONJOY STUL-10 Mini Lobe Pump With Freqency Motor
DONJOY STUL-10 Mini Lobe Pump With Freqency Motor
DONJOY STUL-10 Mini Lobe Pump With Freqency Motor
DONJOY STUL-10 Mini Lobe Pump With Freqency Motor
Specifications
Brand Name :
DONJOY
Model Number :
STUL/R-10
Certification :
CE,3A,FDA
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, LC, Credit Card
Supply Ability :
20 sets 30 working days
Delivery Time :
10-30 working days
Packaging Details :
Wooden box
Materials :
SS316L / 1.4404
Model :
STUL/R
Driver :
Electric
Connection :
Clamped/ Male/Flange
Flow Rate :
6.5-13T/h
Item name :
Mechanical variable lobe pump
Description

DONJOY STUL-10 Mini Lobe pump with freqency motor

Specifications

Product Name:

Bare shaft Mini Lobe pump

Material:

SS304 / SS316L / 1.4301 / 1.4404

Seal Material:

SIC / SIC / VITON (Standard, FDA approval)

Max. Flow:

1.5m3/h

Max.pressure:

15bar / 217PSI

Max. working temperature:

150 C / 302 F

Max. rev:

1450 rmp

Rotor Type:

3-leaves,5 Leaves

Mechanical seal:

SIC / SiC / Viton(Standard)

Motor power:

1.5kw, 1.1KW

Feature

Movable

Voltage:

220V, 380V /440V

Motor:

ABB,SEW, SIEMENS

Surface treatment:

Inner polished

Available connection:

Clamp, Thread Butt weld, Flange

Available standard:

DIN, SMS, 3A, RJT, ISO / IDF

Application scope:

Dairy, food, beverage, pharmacy, cosmetic, etc
Delivery details: Normally within 20 days after receiving T/T down payment.

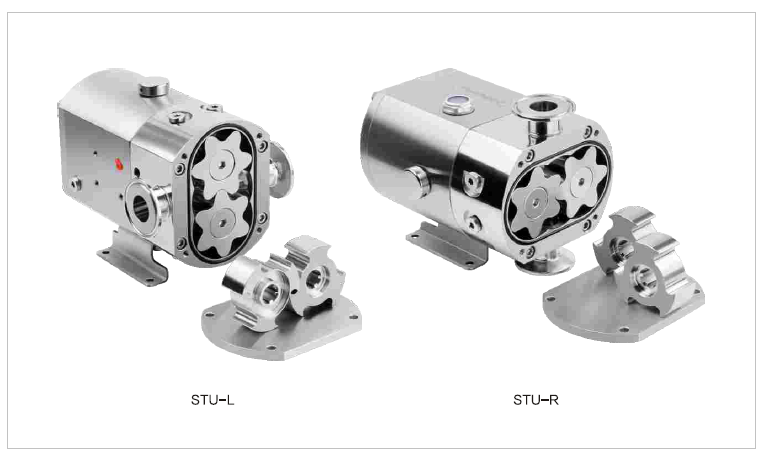

What different of STUL/R and TUL/R

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor

Applications
This pump is deal for the transfer of viscous as well as low-wiscous media in the food processing, cosmetics and pharmaceutical Industries.

Mechanical seal Option
DONJOY STUL-10 Mini Lobe Pump With Freqency Motor

Principles
1. As the lobes rotates, the space on the suciton side increasese as one lobe is distanced from another, thus creating a partial vacuum which draws the fluid in to the pump chamber.
2. As they are rotated by the shafts,each lobe is consecutively filled and the fluid is displaced to the delivery side.The small gaps between the robes and between the lobes and the walls of the pump body ensure that the spaces are duly filled.
3. The pump housing is ompletely filled and the fluid escapes through the teeth of the lobes and is forced against the walls of the spaces. Which contributes to the pump aciton

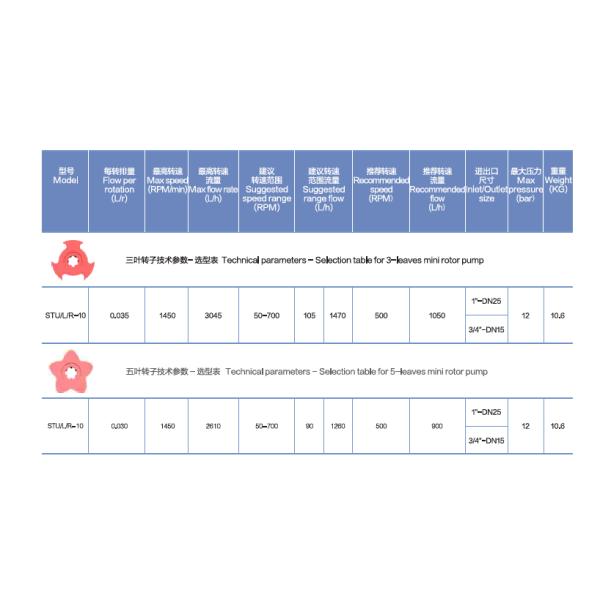

Lobe pump technical selection table

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor

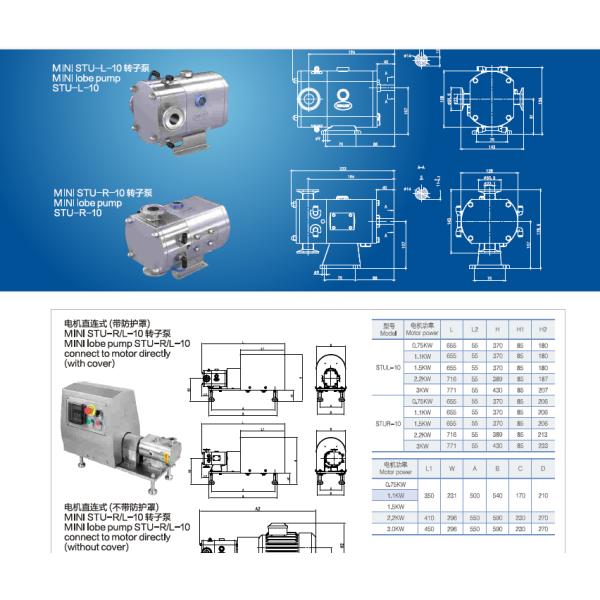

Pump connection

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor


MINI LOBE PUMP MOTOR

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor

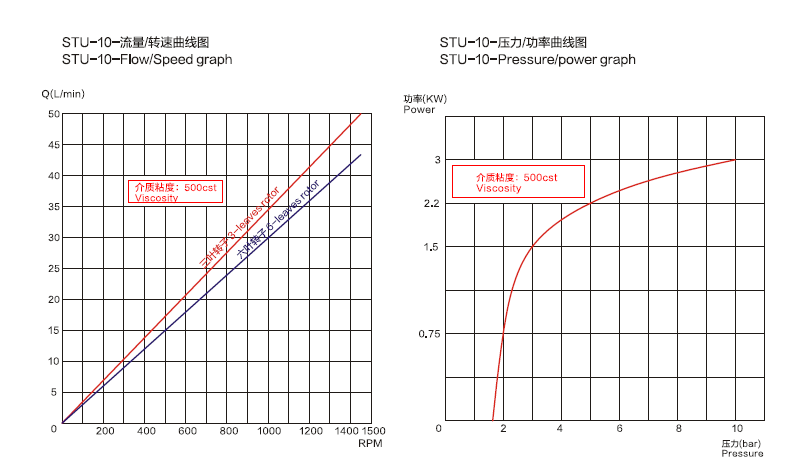

Pump Curve

DONJOY STUL-10 Mini Lobe Pump With Freqency Motor
NNEED MORE INFORMATION, PLEASE CONTACT DONJOY
