SS316L Sanitary Stainless Steel Long Type Rotary CIP Spray Ball
SS316L Sanitary Stainless Steel Long Type Rotary CIP Spray Ball
Specifications
Brand Name :
DONJOY
Certification :
CE/FDA/ISO/3A
Place of Origin :
CHINA
MOQ :
1
Price :
$10 per piece
Payment Terms :
T/T,L/C, Credit Card
Supply Ability :
3000 pcs per month
Packaging Details :
Carton, Wooden Case
Brand :
DONJOY
SIZE :
1/2"-3"
Stanadard :
DIN,3A,SMS,ISO
Connection :
Welded, Clamped,Thread,pin connection
Polished :
Mirror, Matt
Material :
Stainless steel
Description

SS316L Sanitary Stainless Steel Long typeRotary CIP Spray Ball

Quick Detail

Cleaning Ball

Type: 360 Degree, 180 Degree, 270 Degree

Connection: Clamped

Materials: SS304(1.4304),SS316L(1.4401),

Specification

Product Name:

SS316L Sanitary Stainless Steel Long typeRotary CIP Spray Ball

Material:

SUS304/316L;PTFE

Flow:

4-45m³/h

Inlet Pressure:

4-10 bar

Suggest Pressure:

6 bar

Available size:

1"-2.5"

Connection way:

thread BSP,clamp Pin, Welded

Max temperature:

95°C

Max environment temperature:

140°C

Application Scope:

Widely used in food and dairy products, Pharmaceutical, Chemical treatment, Transport equipment, Beverage

Typical application:

process containers and reactor; tank; transport irrigation equipment; fermentation; yeast breeding

Advantages:

Self-cleaning; low liquid consumption; heath design

Typical cleaning methods:

fixed installation CIP system

Packaging Details:

Bubble pack for each. Outside packing is carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.


Typical Application

1.Fixedinstallaiton CIP System

2.Process Containers and reator

3.Store tank

4.Transport tank equipment

5.Fermentation

6.Yeast Breeding

Operating Principle

1. Rotary injector is hygenic tank cleaner,with 360degree coverage in a given tank or process container, the rotary jet head is driven by flow liquid through impeller in the pressure and flow increase will increase the length of the jet and the impact to the tank or vessel surface

2. Rotary injector with unique self cleaning function, internal is completely cleaning.

SS316L Sanitary Stainless Steel Long Type Rotary CIP Spray Ball

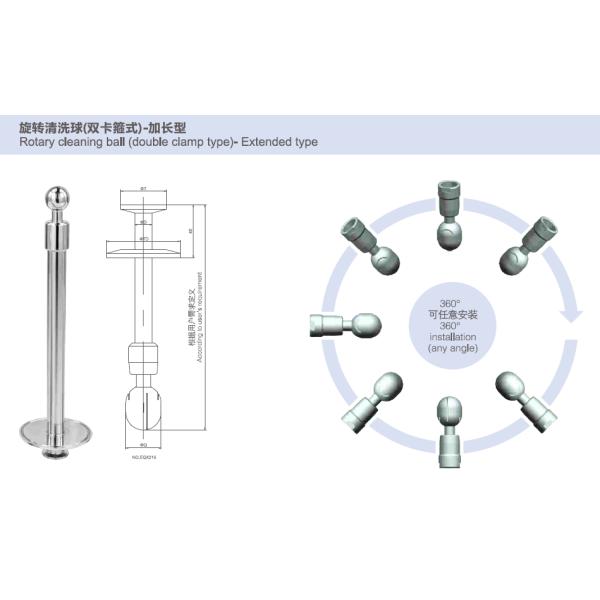

Rotary Cleaning BALL ( CLAMPED) Long Type

SS316L Sanitary Stainless Steel Long Type Rotary CIP Spray Ball

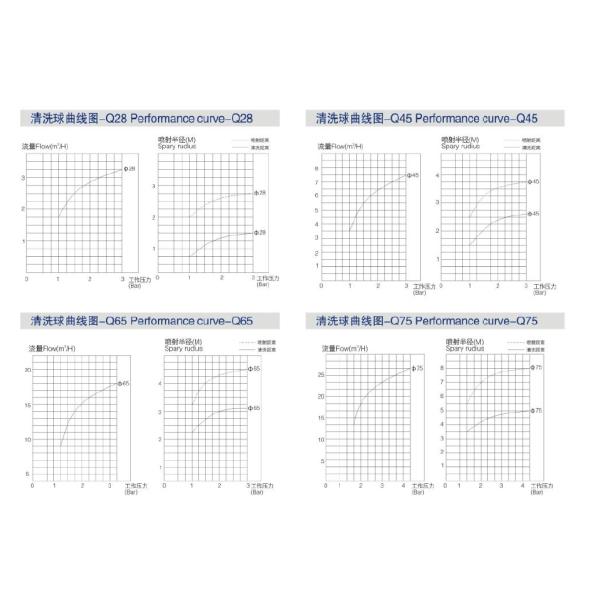

Q SIZE OD T TD 2Bar
Spray Radius(M) Cleaning Radius(m) Flow Rat(m³/H)
28 1/2” 12.7 25.4 77.5 2.5 1.1 2.5
45 1” 25.4 50.5 77.5 3.4 2.5 6.5
65 1.5” 38.1 50.5 91 4.2 3.1 15
75 2” 50.8 64 106 6.5 4.2 22
