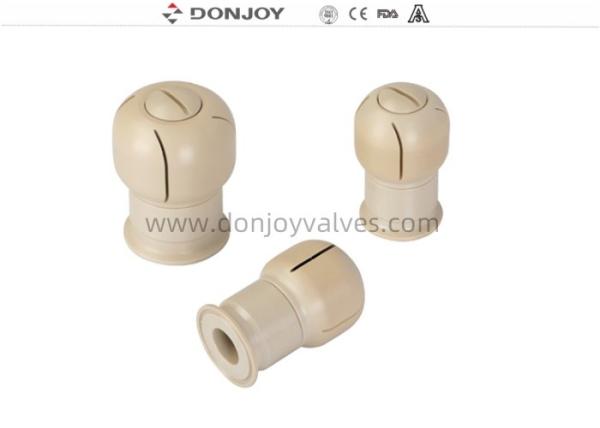

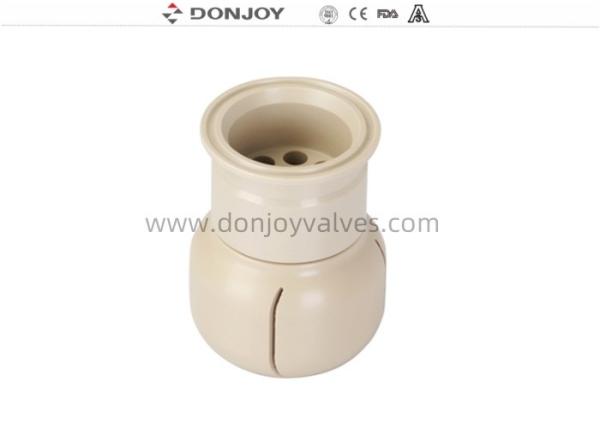

PEEK Material Rotary Tank Spray Ball With Ferrule End
PEEK Material Rotary Tank Spray Ball With Ferrule End
PEEK Material Rotary Tank Spray Ball With Ferrule End
PEEK Material Rotary Tank Spray Ball With Ferrule End
PEEK Material Rotary Tank Spray Ball With Ferrule End
PEEK Material Rotary Tank Spray Ball With Ferrule End
Specifications
Brand Name :
DONJOY
Model Number :
DJ-QX-XZ
Certification :
CE/FDA/ISO/3A
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T,L/C, Credit Card
Supply Ability :
3000 pcs per month
Packaging Details :
Carton, Wooden Case
Brand :
DONJOY
SIZE :
1/2"-2.5"
Stanadard :
DIN,3A,SMS,ISO
Connection :
Welded, Clamped,Thread,pin connection
Material :
PEEK
Description

PEEK material Rotary tank Spray ball with Ferrule end

Advantage

  • used for for strong corrosive materials

Application

◆Rotary cleaning ball series products are mainly used to spray strongly and clean inside of tank in food-processing, beverage, beer, pharmaceutical industries.
◆Rotary cleaning ball:Spherical is oval and round,the injector jet is flat groove type

Technical specifications

Cleaning Radius:Maximum 4 m(4bar)
Cleaning angle:180°；270°；360°
Sphere options: oval ball
Size:35mm, 50mm, 65mm, 75mm
Material:PEEK
Connections:threaded, clamped(1"-2"), bolted(1"-2")

Rotary Spray Head Dimension and Connection

  • Male threaded, Female thread connection
  • bolted connection
  • tri-clamp connection
  • PEEK Material Rotary Tank Spray Ball With Ferrule End

Rotary Spray Ball Typical Application

  • Fixed installation CIP system
  • Process containers and reactor
  • Store tank
  • Transport tank
  • Fermentation
  • Yeast Breading

Option cleaning angle

PEEK Material Rotary Tank Spray Ball With Ferrule End

Drawing

PEEK Material Rotary Tank Spray Ball With Ferrule End

PEEK Material Rotary Tank Spray Ball With Ferrule End

Donjoy tanks cleaning ball,
