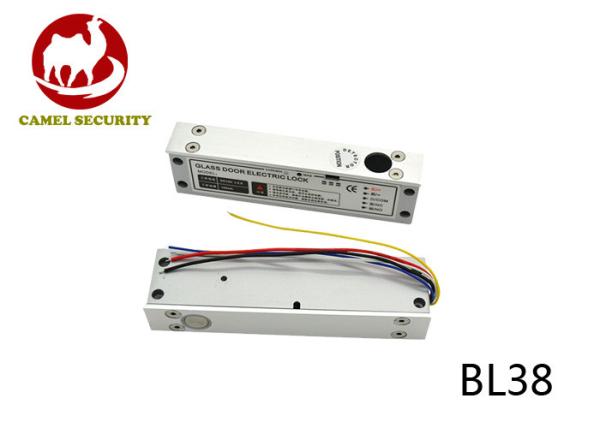

BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay
BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay
BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay
BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay
BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay
BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay
Specifications
Brand Name :
CAMEL
Model Number :
BL38
Certification :
CE
Place of Origin :
China
MOQ :
2pcs
Price :
reasonable prices
Payment Terms :
T/T, Western Union
Supply Ability :
20,000pcs per month
Delivery Time :
within 5 working days
Packaging Details :
paperbox for each unit; carton box for 100pcs
Working Type :
Fail-safe
Weight :
0.8kg
Suit for :
Frameless Glass Door
Time Delay :
0-6s adjustable
Dimension :
L170*W49*H43mm
Description

5 Wires Electric Drop Bolt Lock for Frameless Glass Door Time Delay

Features

  • 5 wires, frameless glass door, low temperature, time delay adjustable, bracket itself
  • High Security. Bolt is deadlocked in the extended position
  • Bolt position monitored
  • Door position monitor with integrated magnet into the strike plate (no need to install a separate reed switch)
  • Multiple Orientation, drop bolts will work horizontally or vertically
  • Power to Lock/ Power to Open
  • Continuously Rated Solenoid
  • Tamper Proof. Lock cannot be defeated by slipping a metal object between lock and striker plate
  • Intelligent Electronics. These intelligent bolts will attempt to re-close the bolt 8 times, allowing time for swing through doors to settle in the closed position
  • Thermal Protection. In the event of solenoid overheat, a thermal fuse will operate, eliminating any fire risk

Applications

  • Glass doors
  • Wooden doors

Product Preview

The BL38 range of drop bolts represent true engineering innovation, design excellence and the superior quality customers have come to expect and demand from Trimec. Designed for use on swing-through, double action doors, these drop bolts are ideal for applications where an electric strike is impractical.

Parameter Description
Voltage DC 12V
Working Type Fail-safe (unlock when power off)
Induction Distance 8mm
Weight 1.2kg
Holding Force 800kg

Installation

BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay

BL38 5 Wires Surface Mount Electric Bolt Crossion Resistance Electric Bolt Lock For Frameless Glass Door Time Delay
