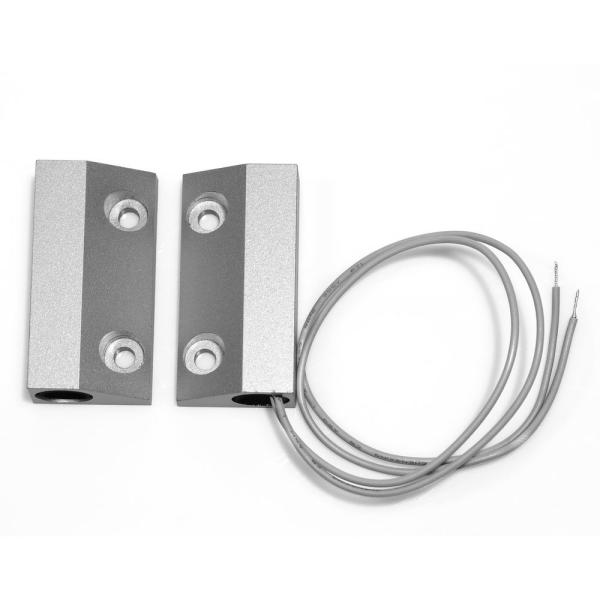

Grey Metal Magnetic Door Contacts Surface Mount Zinc Alloy Housing CS-56
Grey Metal Magnetic Door Contacts Surface Mount Zinc Alloy Housing CS-56
Grey Metal Magnetic Door Contacts Surface Mount Zinc Alloy Housing CS-56
Grey Metal Magnetic Door Contacts Surface Mount Zinc Alloy Housing CS-56
Specifications
Model Number :
CS-56
Place of Origin :
China
MOQ :
5 sets
Price :
reasonable factory-direct prices
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000,000 sets per month
Delivery Time :
5-8 days
Packaging Details :
bag for 5 sets and carton
Dimension :
49*25*15mm
Color :
Silver
Gap :
30-40mm
Power :
0.5A/100V/10W
Output :
NC/NO/COM
Installation :
Surface Mounted
Connection :
22# Wire, 250mm wire
Case Material :
Zinc Alloy
Description

CS-56 Metal Magnetic Contacts Surface Mount Zinc Alloy Housing

Product Introduction

Magnetic contacts are divided into 2 series.The strong 220V and the weak electric 12V-24V magnetic contacts. Magnetic contact consists of 2 parts, the switching section for wiring side (lead or terminal), There is a norammly open switch or conversion type of reed inside the switch. Another part is the magnet side (with ferrite or NdFeB). When the door sensor is in working condition, the permanent magnets generate a constant magnetic field and will pull reed contacts, which will output switching signal (path alarm circuit alarm) for alarm system. According to the doors' and windows' materials or ways of installation. We will choose products shell material, operating distance etc.

Technical Pramater

Dimension 49*25*15mm
Case Material Zinc Alloy
Color
Silver
Gap 30-40mm
Voltage/Current/Power 100V/0.5A/10W
Output NC/NO/COM
Installation surface mount
Connection 22# 250mm Wire

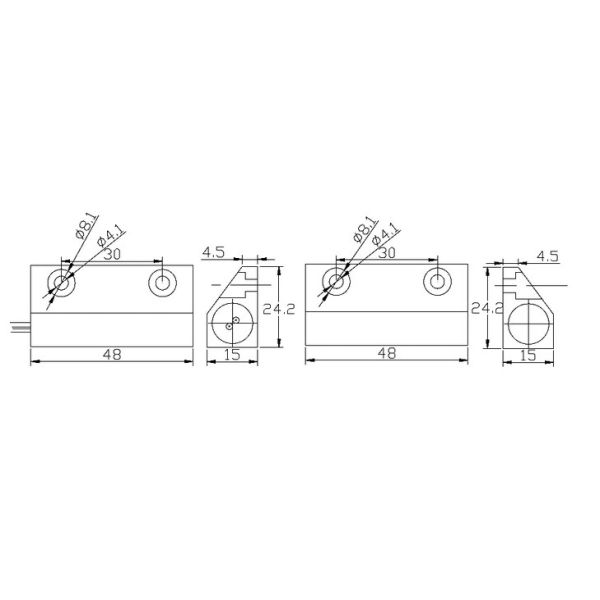

Diagram

Grey Metal Magnetic Door Contacts Surface Mount Zinc Alloy Housing CS-56
