Stainless Steel Door Release Push to Exit Button with LED Indication
Stainless Steel Door Release Push to Exit Button with LED Indication
Specifications
Brand Name :
CAMEL
Model Number :
S87022LG
Certification :
CE RoHS
Place of Origin :
China
MOQ :
5pcs
Price :
factory-direct prices
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
40,000pcs per month
Delivery Time :
within 5 working days
Packaging Details :
paper box for each unit and carton box for 100pcs
Size :
115*70*36mm
Output Contact :
NO/NC/COM/LED
Standard Package :
100pcs/18kg/56*37*47cm/ctn
Material :
304 Stainless Steel, Metal Button
Sign :
PRESS TO EXIT
LED :
Blue / Green
Power :
12V DC-24V DC
Delivery time :
within 3 working days
Certifications :
CE & RoHS
Assurance :
3-year-warranty
Description

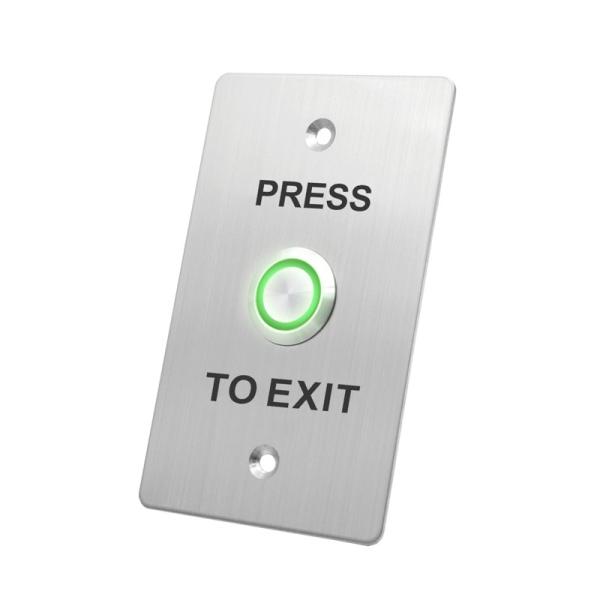

Stainless Steel Press to Exit Button with LED Indication

Product Introduction


S87022LGseries button is casted by light but strong stainless steel material with wiring finished and PRESS To EXIT Sign faceplate. Together with NO(normal open) NC (normal close) LED light switch to realize its excellent performance. The LED color can be green or blue, other colors available if required. Push to Exit Button with LED light is very common for luxury classic places/offices. Also it can be clearly seen at dark night. It’s easy-to-install and most frequently used in the access control systems. The superior design of the buttons and quality construction offer outstanding performance for years come. American size is hot sell items in American countries as well as other countries at this size.

22L LED light switch is flat design with bigger press / contact area for better use and looks better. The contact area diameter is 1.8mm.

The 1.8mm 304 stainless steel faceplate with excellent casting makes it elegant looking and long time usage.

Technical Parameter

Parameter ​Description
Size 115*70*36mm
Standard Structure Stainless Steel Panel, Metal Button
Panel Material 1.8mm 304 Stainless Steel
Current 3A @36V DC Max.
Output Contact NO/NC/COM/LED
Mechanical Life 100,000 tested
Operating Temperature

-20~+55℃ (14-131F)
Operating Humidity 0-95% (non-condensing)
Weight 0.128kg
Package 100pcs/56*37*47cm/ctn

Products Key Words

exit button with LED light, push button with light, push button, exit push button, push exit button, push to exit, press to exit, request to exit, Egress device, exit button, exit button with back box, access control

Details Introduction Photos

Stainless Steel Door Release Push to Exit Button with LED Indication

Stainless Steel Door Release Push to Exit Button with LED Indication

Stainless Steel Door Release Push to Exit Button with LED IndicationStainless Steel Door Release Push to Exit Button with LED Indication

Stainless Steel Door Release Push to Exit Button with LED Indication
