CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel
Specifications
Brand Name :
OEM
Model Number :
ML107203
Certification :
EN12209, EN1634-1, CE, Certifire
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200,000 ea per month
Delivery Time :
35 days
Packaging Details :
Bulk Pack or Color Packaging
Material :
Stainless Steel Forend / Strike, Latch and Deadbolt
Type :
Mortice Euro Cylinder Lock
Finish :
Satin, Polished, PVD Brass
Application :
Fire Rated Timber / Metal Door
Accreditation :
EN12209, EN1634-1 Tested and Certified, CE Mark, Certifire
Function :
Deadlock / Communicating
Packaging :
1pc per box
Backset :
50 / 55 / 60 / 65mm
Description

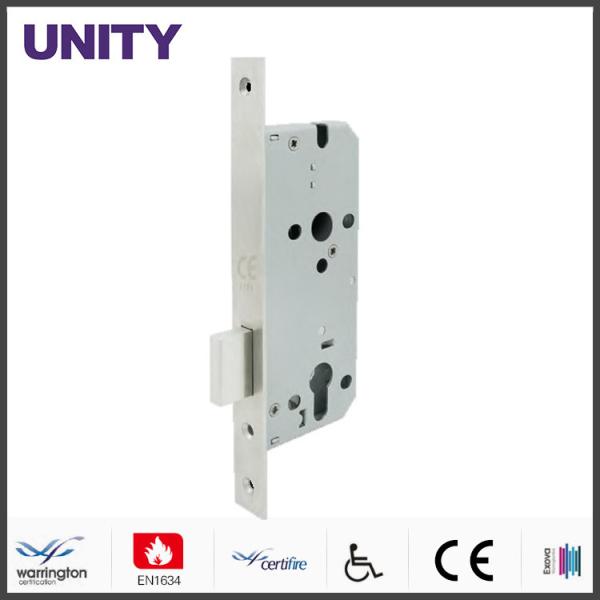

CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel

Application UNITY ML1072 Series Mortice Lock is designed for high
frequency usage applications such as public access buildings
where deliberate abuse likely takes place
Specification 1. Modular case across functions for rapid door prepping and installation
2. 72mm centers, backset in 50/55/60/65mm
3. Robust deadbolt security
4. Communicating room function
5. Double throw deadbolt in solid stainless steel with 20mm projection
6. Suitable for sprung and most un-sprung lever furniture
7. Stainless steel faceplate and strike in square and radius version (radius version improves door prep efficiency with machine routing)
8. Compatible with bolt through furniture and escutcheons of 38mm centers

Standards and Certification

CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel Successfully type-tested for conformity to all of the requirements of EN12209: 2003
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel CE Declaration of Conformity available upon request
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel Meets the dimensional recommendations of BS8300 and Approved Document "M"
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel UNITY ML1072 series locks are approved by Certifire.* Certifire No. CF5333
CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel

ALL EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate are available upon request.

* Certifire is an independent third party certification scheme that assures performance, quality and traceability of fire protection products

EN12209:2003 Clssification

3 X 8 1 0 G 3 B C 0 0

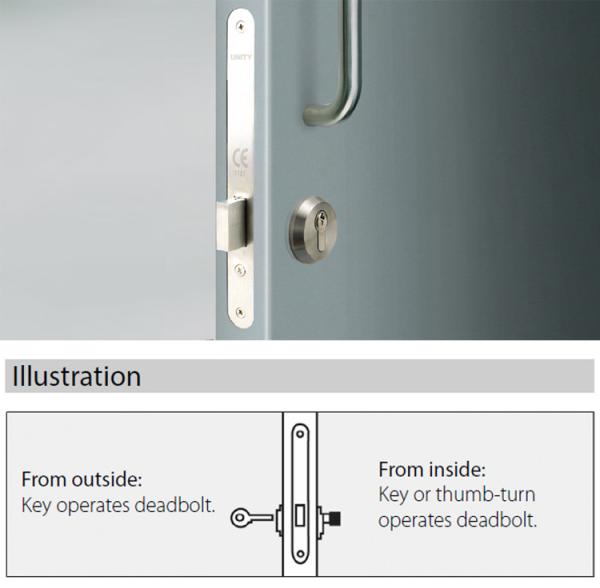

Illustration

From outside:

Key operates deadbolt.

 CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel

From inside:

Key or thumb-turn operates deadbolt.

ML107203

Deadlock / Communicating

 CE Mark Mortice Door Lock Deadlock EN12209 Satin Stainless Steel

50mm Backset: ML107203-50

55mm Backset: ML107203-55

60mm Backset: ML107203-60

65mm Backset: ML107203-65
