Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking
Specifications
Brand Name :
OEM
Model Number :
ML308507/ML309207
Certification :
EN12209, EN1634-1, CE, Certifire
Place of Origin :
China
MOQ :
1000
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200,000 ea per month
Delivery Time :
35 days
Packaging Details :
Bulk Pack or Color Packaging
Material :
Stainless Steel
Type :
Door Mortice Lock
Finish :
32D
Application :
Public Access Building
Accreditation :
EN12209, EN1634-1 Tested and Certified, CE Mark, Certifire
Function :
Sash Lock / Entrance
Description

Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE MarkingCertifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking

Application

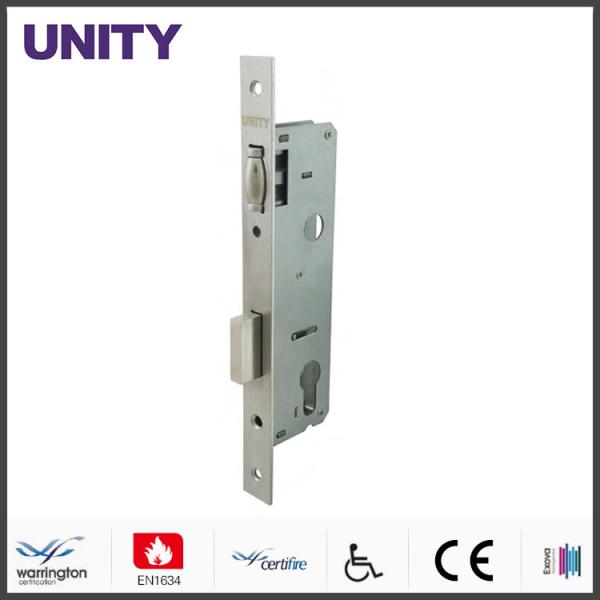

UNITY ML30 Series Narrow Mortice Lock is designed for
commercial and residential profile door applications

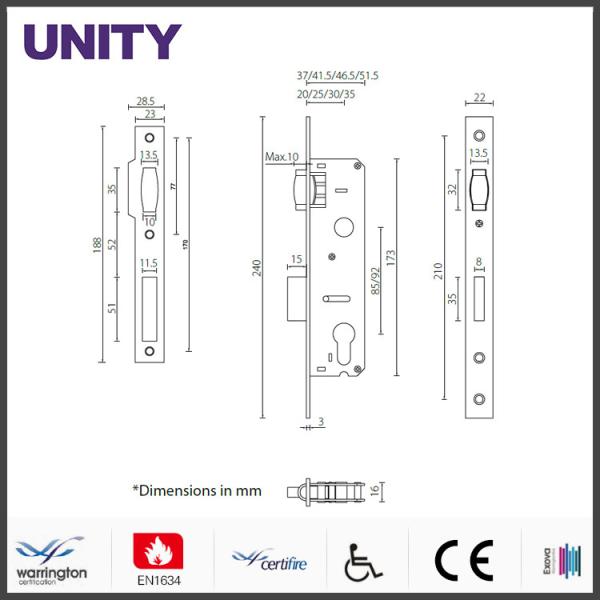

Specification 1.Available in 85 and 92mm centers, backset in
20/25/30/35mm
2.8mm spindle follower
3.Easy reversible latchbolt design (no tools required)
4.Single throw solid deadbolt with 15mm projection
5.Suitable for both Sprung and Un-Sprung handle
6.Stainless Steel faceplate and strike in various width to fit different aluminium/uPVC profile requirement
7.Modular case across functions for rapid door prepping and installation
8.Roller Latch model is designed with adjustable roller projection to fit different door/frame gap

9.Successfully type-tested internally for conformity to all of requirement of EN12209:2003

Standards and Certification

Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking Successfully type-tested for conformity to all of the requirements of EN12209: 2003
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking Successfully passed and exceeded 240-minutes fire test of metal fire door assemblies to EN1634-1: 2014
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking CE Declaration of Conformity available upon request
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking Meets the dimensional recommendations of BS8300 and Approved Document "M"
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking UNITY ML1072 series locks are approved by Certifire.* Certifire No. CF5333
Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking

ALL EN/CE/Certifire tests performed independently and certified by Exova/Warrington Fire/Warrington APT. Test report/certificate are available upon request.

* Certifire is an independent third party certification scheme that assures performance, quality and traceability of fire protection products

EN12209:2003 Clssification

3 X 8 1 0 G 3 B C 2 0

Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking

Illustration

From outside:

Key operates deadbolt and latchbolt. Handle retrcts latchbolt

 Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking

From inside:

Key or thumbturn operates deadbolt and latchbolt. Handle retracts latchbolt.

ML107201

Sashlock/Entry

72mm Center

 Certifire Stainless Steel Mortice Door Lock for Fire Door 4 hour EN1634 Fire Tested EN12209 and CE Marking

50mm Backset: ML107201-50

55mm Backset: ML107201-55

60mm Backset: ML107201-60

65mm Backset: ML107201-65
