Specifications
Brand Name :
UNITY
Model Number :
SR01SL102-32D
Certification :
EN1906:2010; EN1634-1:2014
Place of Origin :
China
MOQ :
500
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200,000 ea per month
Delivery Time :
30 days
Packaging Details :
One pair per box, or as required package
Product Name :
Satin stainless steel door handle with 53*6.5mm rose

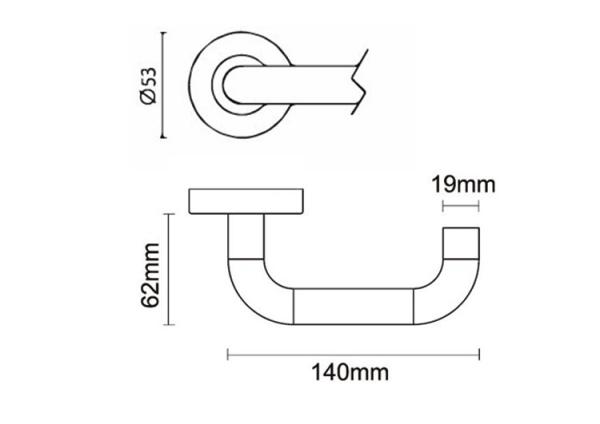

Handle Length :
140mm, or custom
Handle projection :
62mm, or custom
Rose diameter :
53mm
Rose projection :
6.5mm
Lever shape :
U shape
Tube Diameter :
16/19/20/22mm, or custom
Finish :
32D (Original Color), or custom finishes
OEM|ODM :
Acceptable
Application :
Most Commercial Places
Description

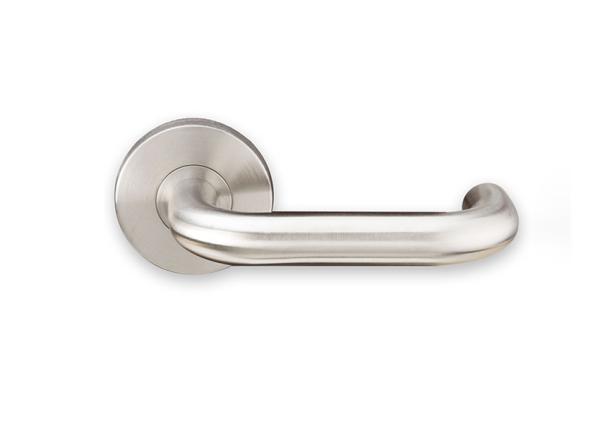

Satin stainless steel door handle with 53*6.5mm rose design fire tested

Specifications and Features

Unity satin stainless steel door handle with 53*6.5mm rose design fire tested has a very natural and pleasing overall look, they give people a very nice feeling. With an optimized design for interior and exterior doors, UNITY satin stainless steel door handle with 53*6.5mm rose is very suitable for most commercial applications where frequent usage presents.

Ø EN1906 Grade 3 tested and EN1634-1 fire rated

Ø 6.5mm rose design to preserve the minimum height with the spring mechanism

Ø Concealed screw fixing

Ø Inner rose indentation to secure the rose cover with a “clean” look on the handle.

Ø Hexagonal countersunk to assist thru-bolt fixing

Ø Architectural look achieved by minimum edge radius on the rose cover.

Ø Great for modern doors requiring a minimalistic door handle appearance.

Ø Made of stainless steel AISI304 (AISI316 and other types of materials are also available on request)

Ø Standard Finish in Satin Stainless Steel (Other finish available on request)

Ø Very easy to install in few minutes with simple tools.

Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested

Tests and standards

Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested Satin stainless steel door handle with 53*6.5mm rose is successfully type-tested for conformity to all of the requirements of EN1906: 2010 (including 240-hours of corrosion resistance requirement of EN 1670:2007)
Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested EN1634 stainless steel door handle with 53*6.5mm rose has successfully passed 240-minutes fire test of metal door assemblies to EN 1634-1: 2014
Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested All tests performed independently and certified by Exova/Warringtonfire/Warrington APT. Test reports and/or certificates are available on request

Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested

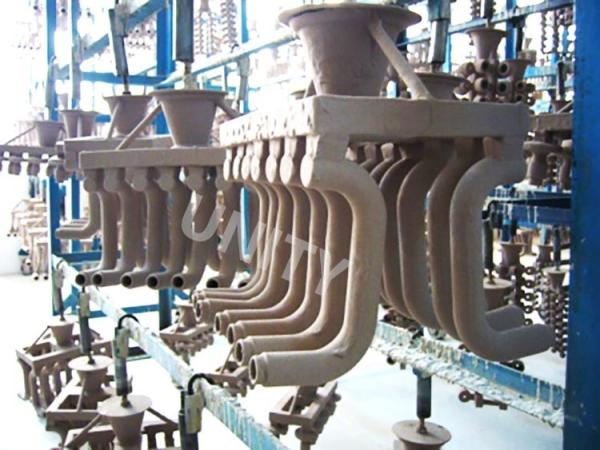

The investment casting mold of the satin stainless steel door handle with 53*6.5mm rose,

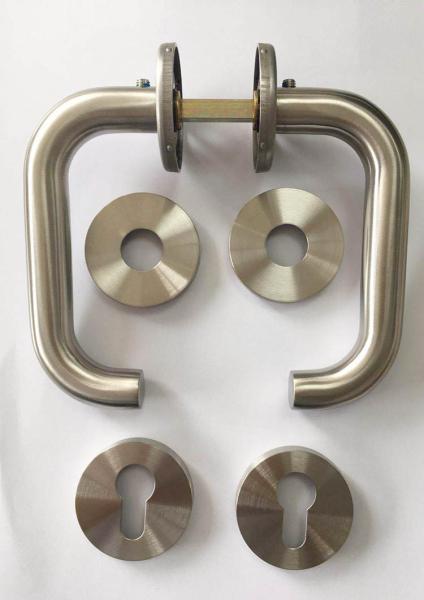

Satin Stainless steel door handle with 53*6.5mm rose after production

Application of stainless steel door handle with 53*6.5mm rose

Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested

Other Available Roses and Plates of Unity Stainless Steel Door Handles,

Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested
Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested

Escutcheon Options

Satin Stainless Steel Door Handle With 53 * 6.5mm Rose Design Fire Tested

Finishes of Stainless steel door handle with 53*6.5mm rose
- Satin Stainless Steel (US32D/630)
- Polished Stainless Steel (US32/629)
- Satin PVD Titanium
- Bright PVD Titanium


*Other finishes available on request

FAQ

Q: Are your company a factory or trading company?
A: UNITY started from a trading company, but now we have two factory plants to serve you.
As a manufacturer, we have more than 20 year's experience and are confident to offer you with optimal manufacturing solution.

Q: What kinds of certificates do you have?
A: UNITY works with accredited testing and certification organizations such as Exova/Warrington Fire at the UK, and Intertek NA at the USA for independent testing. UNITY can offer a suite of products that are tested and certified to EN1634-1 and UL10c fire rating. We also offer CE/Certifier marked products that are suitable for relevant commercial applications.

Certificates and test reports are available upon request.



Q: Do you accept OEM or ODM?
A: Yes, UNITY is professional in OEM and ODM with more than 20 year's experience. And UNITY has set up long-term cooperation with many famous brands home and abroad.

Q: How about your quality system?
A: As a factory, UNITY has been certified by ISO9001 and ISO14001 to well control our production and service quality, all steps under control are strictly processed according to these authoritative systems and standards.

Q: Can you send me a sample before placing an order? Is it free?
A: Yes, of course. UNITY will translate all your requirements into real products and then send you samples for your confirmation.
The sample is free, you just need to pay for the express cost.

Q: How many days do you need to prepare a sample?
A: Usually 2-15days depending on the items requested, the customized sample will need a longer time to get it prepared.

Q: What’s the stainless steel grade you are working on now?
A: We are working mostly in SUS304 and SUS316, some items can be SUS201 as well.


Any more information on further questions, please just feel free to contact us.
