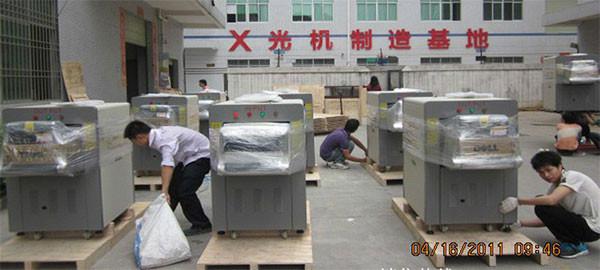

Cargo Luggage X ray Baggage Scanner railway station Parcel Scanner Machine

Image System

X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Monitor: High Resolution Color, LCD Accord, 17 inch

Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

Image Grey Level: 4096

Image Max Resolution: 1024 * 1280pixel

Image Processing: 24bit for processing real time

Image storage: Storage 60000 pictures in real time

Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

High-energy/low energy : switch from high energy to low energy

Assist to detect drug and explosive powder

General Specification

1. Tunnel Size: 1000(W)*800(H)mm

2.Conveyor Speed: 0.22m/s

3.Conveyor Max Load: 200kg

4. Dose per Inspection<1.7μGy/h

5. Resolution< 0.101mm Copper Wire

6.Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm

7. Penetrate resolution: Dia 0.511mm

8. Penetration: 34mm Steel

9. Film Safety: Guarantee ISO1600 Film

10X-ray Leakage <0.1 μGy/h (at a distance of 5cm From external housing)

X-ray Generator

Generate direct: Downward

Generate anger: 80 degree

Anode Voltage: 100~160Kv

Anode power: 0.4 to 1.2mA

Cooling / Duty Cycle: Oil Cooling /100%

Installation Data

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 220VAC(±10%)50±3Hz

Power Consumption: 1.0 KW (max), 1.0KW(working)

Noise: <58db

Specification :

Application:

Professional X Ray Baggage Scanner X-Ray top shine detect .Used in the factory testing of security products and business units such as : electronic factories shoe factories, toy factories, courts, railway stations, and event bag, line security management package .
