DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking
Specifications
Brand Name :
MCD
Model Number :
MCD-V3D
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T , Western Union , L/C
Supply Ability :
2000 pcs/month
Delivery Time :
Normally within 5 working days
Packaging Details :
Package Size: 86*36*28cm (3 pieces/carton 9.5kg)
Camera :
1/3" 420 Wire Sony chips
Power Supply: :
DC12V
Supplementary lighting: :
Used infrared lamp
Gross Weight: :
2.45kg
Storage way :
DVR video recording function,can storage image
•Package Size: :
86*36*28cm (3 pieces/carton 9.5kg)
Language: :
Supports multi-language
Screen : :
HD 5-inch LCD screen
Net Weight: :
1.45kg
Rod Max length: :
1.2M-1.4M
Description

DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking

DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking

Product Introduction:

Thank you for purchasing our products, this product is the latest vehicle inspection mirror with a DVR

function, outer zone SD expansion card slot, when working, you can also record the whole working

process,

can also record the file through the USB interface on the device to save the file to a computer or other

storage media to facilitate a long time to save data.In addition, the device's display do not only has the

general features of the liquid crystal display, but also a multi-function multimedia player.

In your spare time, you can play multimedia files and browse e-albums and book.

details please following the use of product operation.

Product Parameters:

  • Camera:1/3" 420 Wire Sony chips
  • Power Supply: DC12V
  • automatic infrared night vision function
  • Connecting Rod Length:1.2M-1.4M
  • Supplementary lighting: Used infrared lamp
  • Storage way: with DVR video recording function ,can storage image playback
  • Net Weight:1.45kg
  • Gross Weight:2.45kg
  • White Color box Size: 84*26*11.5cm
  • Package Size: 86*36*28cm (3 pieces/carton 9.5kg)

2.4G/5.8G Wireless Mini DVR ( HD 5-inch LCD screen)

DVR Function Under Vehicle Inspection Camera Three Wheels For Security Checking

Basic Information:

  • Wireless Receiving : Built-in 2.4G/5.8G wireless receiving module
  • Channel Switch Supports manual & automatic switch between 8 channels
  • Antenna: Folding hidden external antenna assures excellent wireless receiving.
  • Recording: Supports seamless cycle and continuous video from wired/wireless cameras
  • Photo :Supports function of taking pictures either from wired or wireless cameras.
  • AV IN:TV-IN [NTSC / PAL]
  • AV OUT:[NTSC / PAL].
  • Battery: Built-in 3200mAh high capacity Li-battery, which continuous record over 10 hours
  • Speaker: Built-in speaker of 1W
  • Storage: Supports up to 32GB TF card
  • Language: Supports multi-language
  • Supports Power-saving Mode: automatic shutdown, automatic off-screen
  • Automatic upgrade: Supports system automatic upgrade

Specification:

Items

Value

Wireless

Receiving

Wireless freq.

1of 6 groups

2.4GHz–8

channels

CH1: 2414MHz; CH2: 2432MHz;

CH3: 2450MHz; CH4: 2468MHz.

CH5: 2490MHz; CH6: 2510MHz;

CH7: 2390MHz; CH8: 2370MHz

Within 5.8G-A

8 channels

CH1: 5865MHz; CH2: 5845MHz;

CH3: 5825MHz; CH4: 5805MHz.

CH5: 5785MHz; CH6: 5765MHz;

CH7: 5745MHz; CH8: 5725MHz

Beyond 5.8G-B

8 channels

CH1: 5705MHz; CH2: 5685MHz;

CH3: 5665MHz; CH4: 5645MHz.

CH5: 5885MHz; CH6: 5905MHz;

CH7: 5925MHz; CH8: 5945MHz

Within 5.8G-C

8 channels

CH1: 5733MHz; CH2: 5752MHz;

CH3: 5771MHz; CH4: 5790MHz.

CH5: 5809MHz; CH6: 5828MHz;

CH7: 5847MHz; CH8: 5866MHz

Within 5.8G-D

7channels for FPV

CH1: 5740MHz; CH2: 5760MHz;

CH3: 5780MHz; CH4: 5800MHz.

CH5: 5820MHz; CH6: 5840MHz;

CH7: 5860MHz; CH8: SPI

Beyond 5.8G-E

7 channels for FPV

CH1: 5705MHz; CH2: 5685MHz;

CH3: 5665MHz; CH4: 5645MHz.

CH5: 5885MHz; CH6: 5905MHz;

CH7: 5925MHz; CH8: SPI

Sensitivity

-92dB

AV IN

TV system

NTSC / PAL

Output voltage

3.6-4.2 V

AV OUT

TV system

NTSC / PAL

HD 5-inch

LCD screen

Active area

108mm(W) X 64.8mm(H)

Resolution

800 X 480 Pixel

Luminance for LCM

200 cd/㎡

Video

Resolution

720*576 / 720*480

Video compress

MPEG-AVI 30fps

Play format

MPEG-AV

Items

Value

Audio

Subcarrier frequency

2.4GHz:6.0MHz; 5.8G-A/B/C:6.5MHz;

5.8G-D/E:6.0/6.5MHz

Earphone Frequency Range

20HZ-20KHz stereo

Earphone Output

Left: 20MW+ right 20mW [16O](suit to

largest volume)

Speaker

1W


Format

JPG/JPEG

Storage

External SD card

TF card 1GB-32GB(optional)

32GB recording time

10-32 hours

1GB photos

15625pcs

Operating system

PC

Windows & Mac OS

Port

USB 2.0

Language

Multiple

Power

Voltage

DC 5V

Current(receiving mode)

660MA

Current( recording mode)

680MA

Current(recording with off-screen mode)

340MA

AC adapter

DC 5V 2A

Built-in battery

Li-battery 3200Mah

Standby time

Wireless record

≥9.5 hours(off-screen); ≥5hours(on-screen)

Wired record

≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included.

Size (L x W x H)

131mm x 86mm x 18mm

Weight(g)

205g

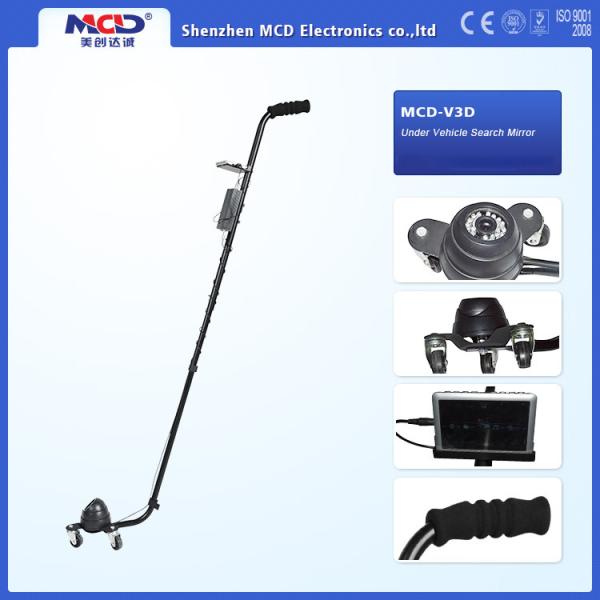

Feature and Application:

High definition camera, 5.0 inch LCD display, can storage pictures and reply.more clear,use

infrared lamp to supplementary light,so its can used at dark place or at night, with three wheel to rotation.

Easy to push.Especially Used for check under car,desk,stool etc.It is a very practical security tools.
