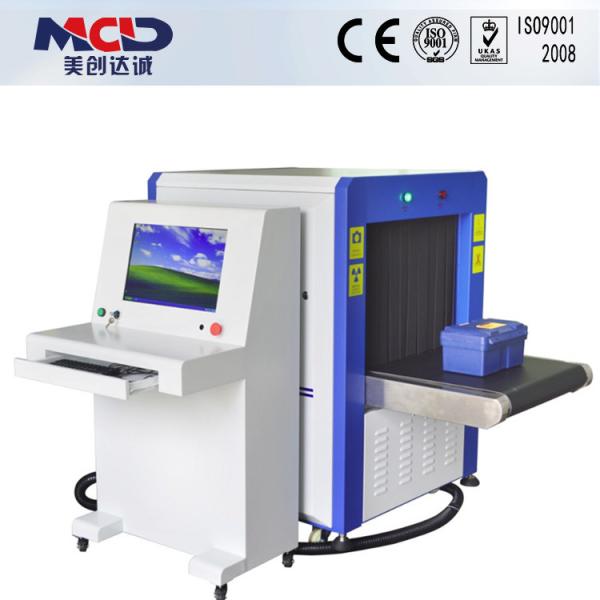

Checked baggage inspection system / x ray machine for security of Resort
Checked baggage inspection system / x ray machine for security of Resort
Specifications
Brand Name :
MCD
Model Number :
MCD-6550
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T , Western Union , L/C
Supply Ability :
300 set/month
Delivery Time :
Normally within 5 working days
Packaging Details :
Strong Wooden Case
Tunnel Size :
650(W)*500(H)mm
Conveyor Speed :
0.22m/s
Conveyor Max Load :
170kg
Dose per Inspection :
<1.4uGy/h
Resolution :
<0.0787mmMetal Wire
Penetration :
34mm Steel
Through resolution :
φ0.254mm
Color display :
full color
Spatial resolution Level :
diaφ1.0mm , Vertical:diaφ1.0mm
X-ray Leakage :
0.05 uGy/h (at a distance of 5cmFrom external housing)
Description

Checked baggage inspection system / x ray machine for security of Resort

Product Parameters:

General Specification

Tunnel Size 650(W)*500(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <1.4uGy/h
Resolution <0.0787mmMetal Wire
Spatial resolution Level diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution φ0.254mm
Penetration 34mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.05 uGy/h (at a distance of 5cmFrom external housing)


X-ray Generator

Generate direct Upward
Generate angle 80 degree
Anode Voltage 100~160Kv
Anode power 0.4 to 1.2mA
Cooling / Duty Cycle Oil Cooling /100%

Image System

X-ray Sensor L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Detector 2
Color display full color
Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24 bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

continuous observation
Multi-energeti distinguish objects

organic objects in orange,inorganic objects in blue,

mixture in green

High-energy

/low energy

switch from high energy to low energy

Installation Data

Operating Temperature 0℃~45℃
Operating Humidity 20%-95%(non-condensing)
Storage Temperature -26℃~60℃
Storage Humidity 20%-95%(non-condensing)
Operation Power 220AVC/(±10)50Hz±3Hz
Power Consumption 1.0KW(Max)
Noise <65 dB

Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display

the naked eye can not see where the liquid is also very obvious object display.Used in the

factory testing of security products and business units such as: electronic factories, shoe

factories,toy factories, courts, railway stations, and event bag, line security management

package.

Checked baggage inspection system / x ray machine for security of Resort

MCD-6550 User Manual.pdf

MCD-6550 baggage scanner.pdf
