Factory Price High Sensitivity 6 zones Door Electronic Walk Through Metal Detector For Safety Inspection

Product Introduction:

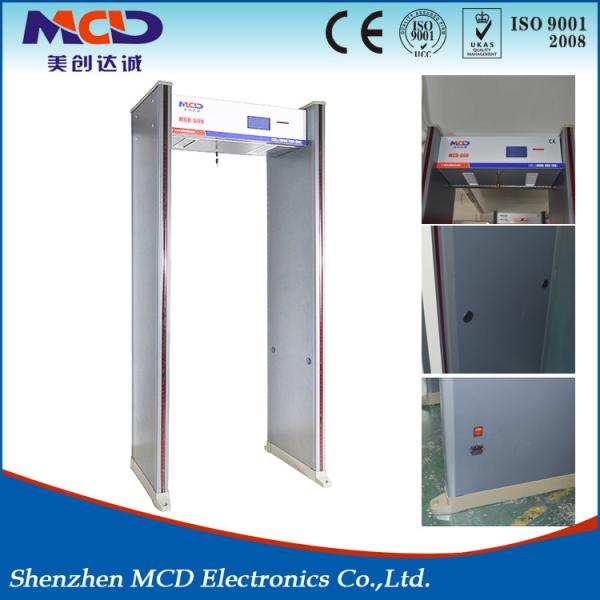

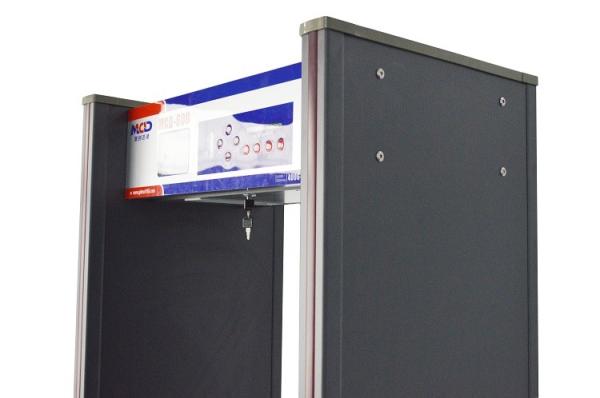

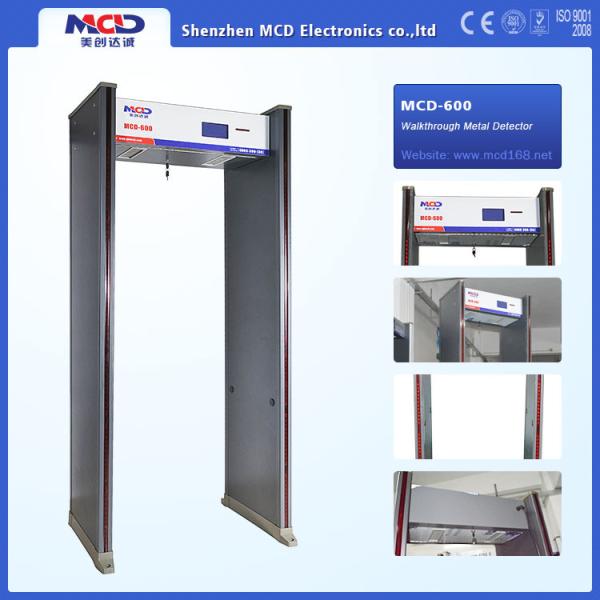

MCD-600 metal detector has a large 4.3 inch LCD screen. Since it is made of high quality material, it owns the ability of alarm temperature setting, and it is a Waterproof, fireproof and shockproof walk through metal detector. It has six interlaced detection regions of the same height with the body and the LCD screen can show the number of alarm and the flow of people. Besides with built in ultra high LED panels the two column alarm region can display the place of objective.

Product Parameters:

• Alarm way: Audio Alert,and LED Location lamp work at same time .
• Detection Zone: 6 zone
• Display ways: Large Screen of LCD display with LED
• Calibration / Operation: Automatic
• Detection Rate: all types of metal 100% Ferrous, Non Ferrous & Alloy
• Self Diagnosis: Automatic fault diagnosis system with error code
• Detection Method: Electro-magnetic field
• Sensitivity: 0-255 adjustable
• Password: built-in password protection
• Detection Speed:>60 detection per minute
• The main body with waterproof function.
• Tunnel Size: 200(L)*70(W)*50(H)cm
• Dimension: 223(L)*84(W)*63H)cm
• Power:220V,(±10)50Hz
• Net Weight: 55kg/set
• Gross Weight: 71kg/set
• Package Size: Main Body: 230*72*25cm(2 piece /carton)
  Host Machine:78*47*28cm(1 piece/carton)

Product Functions:

• Improved digital and analog circuit designed to insure the performance is more stable and reliable
• Using high quality alloy and special materials, it has waterproof, fireproof and shockproof function
• With LED in the front of door for displaying the place of metal detected
• Sound and light alarm at the same time with adjustable sound volume
• Sensitivity of every zone can be adjusted independently
• With Intelligent traffic system and alarm counter
• Password-protected,just allowing the professional to operate
• Improved loop to reduce interference and eliminate blind spots
• Based on the operating system of digital information processing technology
• Adjustable digital frequencies to enable multiple security doors work at the same time

Feature and Application:

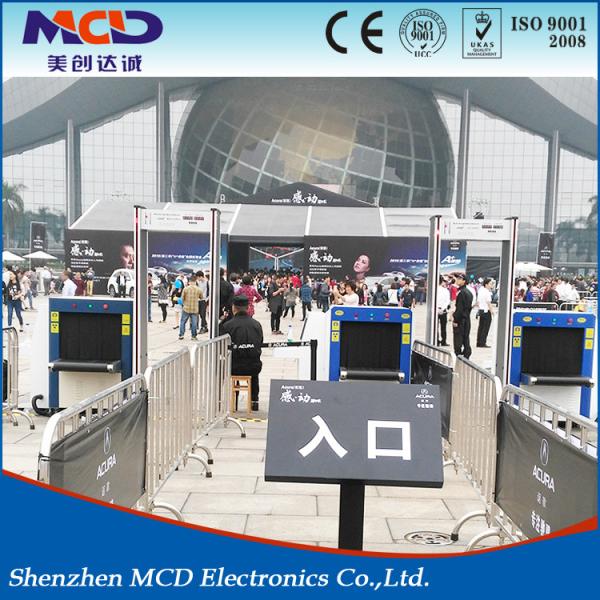

Fireproof,waterproof ,and shockproof. It can exactly detect the location of metals that walk through person takes. Especially designed for factory ,Exhibition Areas for outdoor check,such as hardware and Electronic manufacturer check if the person steal the metals, or apply for large public events, check the person if take leather weapons.

Company information
*Established in 2005
*With more than 300 people, among of which R&D 15 staffs, QC 22 people
*Main products: X-Ray Luggage Scanner Handheld Metal Detector, Food Metal Detector, Underground Metal Detector, Under Vehicle Search System, Walkthrough Metal Detector Gate.
*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.
*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP
*Area: 12,000 Square meters
