MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
Specifications
Brand Name :
MCD
Model Number :
MCD-5030A
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T , Western Union , L/C
Supply Ability :
300 set/month
Delivery Time :
Normally within 5 working days

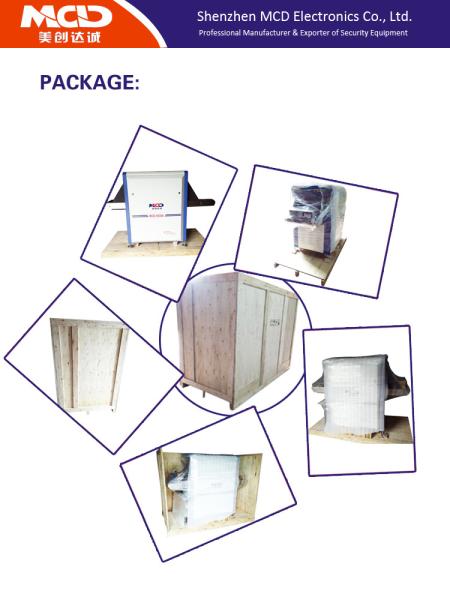

Packaging Details :
Wooden Case Pacakge
Warranty :
one year
Penetration :
34mm steel
Cooling/Duty Cycle :
oil cooling/100%
Film Safety :
Guarantee ISO1600 Film
Conveyor Speed :
0.22m/s
Conveyor Max Load :
170kg
Description

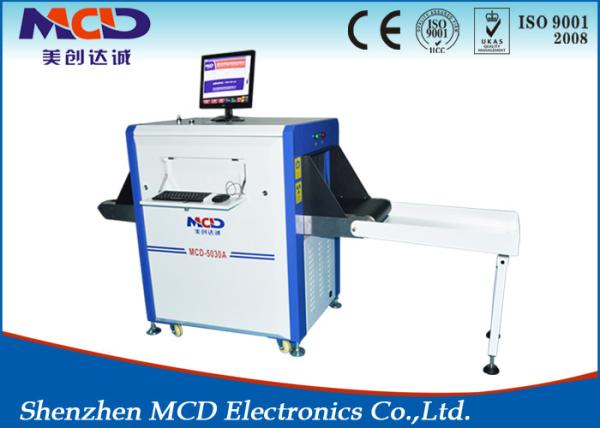

Security Inspection MCD-6550 Airport X-ray Scanner, X ray Baggage Scanner

Quick Detail

  • 1. Tunnel Size: 500(W)*300(H)mm
  • 2. Conveyor Speed: 0.22m/s
  • 3. Conveyor Max Load: 170kg
  • 4. Dose per Inspection: <2.9 uGy/h
  • 5. Resolution: <0.101mmMetal Wire
  • 6. Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm
  • 7. Through resolution:φ0.202mm
  • 8. Penetration: 34mm Steel
  • 9. Film Safety: Guarantee ISO1600 Film
  • 10. X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)

X-ray Generator

  • 1. Generate direct: Upward
  • 2. Generate angle: 80 degree
  • 3. Anode Voltage: 80Kv
  • 4. Anode power: 0.4 to 0.5mA
  • 5. Cooling / Duty Cycle: Oil Cooling /100%

Image System

X-ray Sensor L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Detector 1
Color display less than 4 color
Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

continuous observation

Installation Data

  • 1. Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • 2. Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
  • 3. Operation Power:220AVC/(±10)50Hz±3Hz
  • 4. Power Consumption:1.0KW(Max),0.3KW(working)
  • 5. Noise: <55 dB

Feature and Application:

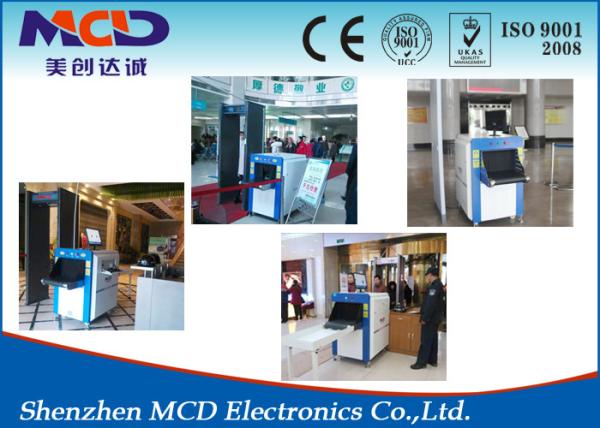

X-rays through inspection,Which show object interior metal structure by LCD screen.Applied

to factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.

MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration

MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration

MCD -6550 Airport X ray Scanner , X ray Baggage Scanner 34mm steel Penetration
