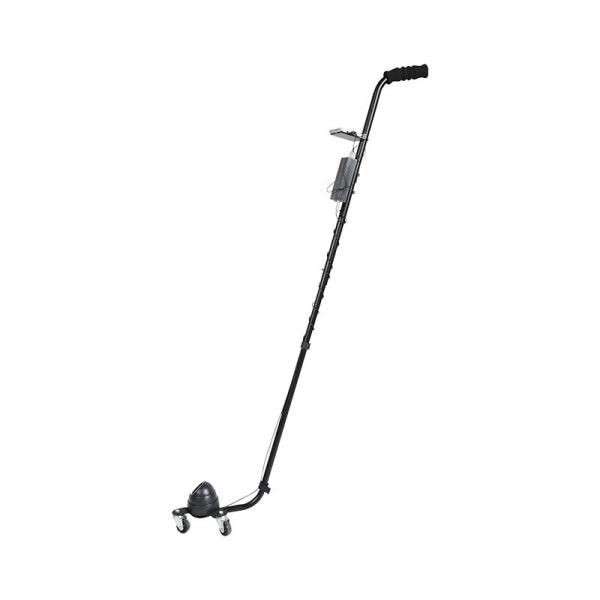

Portable 4.3 Inch LED Screen Under Vehicle Inspection Camera Stainless Steel 304 Casing
Portable 4.3 Inch LED Screen Under Vehicle Inspection Camera Stainless Steel 304 Casing
Portable 4.3 Inch LED Screen Under Vehicle Inspection Camera Stainless Steel 304 Casing
Portable 4.3 Inch LED Screen Under Vehicle Inspection Camera Stainless Steel 304 Casing
Specifications
Brand Name :
MCD
Model Number :
MCD-V7D
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T , Western Union , L/C
Supply Ability :
2000 pcs/month
Delivery Time :
Normally within 5 working days
Packaging Details :
Aluminum Box
Dimension: :
23mmx50mm
Flexible pipe: :
940mm
Storage way :
DVR video recording function,can storage image
Waterproof standard: :
IP68
Camera adjustable angle: :
Arbitrary angle
Screen : :
HD 5-inch LCD screen
Camera light source: :
12 LEDs
Rod Max length: :
1.16m
Description

Portable Hotsale 4.3 Inch LED Screen Surveillance Vehicle Equipment MCD-V7D

  • Dimension: 23mmx50mm.
  • Flexible pipe: 940mm
  • Camera casing:Stainless steel 304
  • Camera lens: Sapphire blue
  • Sensor dimension:1/4 inch
  • Lens visible angle: 120 degrees
  • Camera adjustable angle: Arbitrary angle
  • Camera light source: 12 LEDs
  • Working temperature:-10℃-50℃ 2.4G/5.8G Wireless Mini DVR ( 5 inch Screen )


Specification:

Items

Value

Wireless
Receiving

Wireless freq.
1of 6 groups

2.4GHz–8
channels

CH1: 2414MHz; CH2: 2432MHz;
CH3: 2450MHz; CH4: 2468MHz.
CH5: 2490MHz; CH6: 2510MHz;
CH7: 2390MHz; CH8: 2370MHz

Within 5.8G-A
8 channels

CH1: 5865MHz; CH2: 5845MHz;
CH3: 5825MHz; CH4: 5805MHz.
CH5: 5785MHz; CH6: 5765MHz;
CH7: 5745MHz; CH8: 5725MHz

Beyond 5.8G-B
8 channels

CH1: 5705MHz; CH2: 5685MHz;
CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz;
CH7: 5925MHz; CH8: 5945MHz

Within 5.8G-C
8 channels

CH1: 5733MHz; CH2: 5752MHz;
CH3: 5771MHz; CH4: 5790MHz.
CH5: 5809MHz; CH6: 5828MHz;
CH7: 5847MHz; CH8: 5866MHz

Within 5.8G-D
7channels for FPV

CH1: 5740MHz; CH2: 5760MHz;
CH3: 5780MHz; CH4: 5800MHz.
CH5: 5820MHz; CH6: 5840MHz;
CH7: 5860MHz; CH8: SPI

Beyond 5.8G-E
7 channels for FPV

CH1: 5705MHz; CH2: 5685MHz;
CH3: 5665MHz; CH4: 5645MHz.
CH5: 5885MHz; CH6: 5905MHz;
CH7: 5925MHz; CH8: SPI

Sensitivity

-92dB

AV IN

TV system

NTSC / PAL

Output voltage

3.6-4.2 V

AV OUT

TV system

NTSC / PAL

HD 5-inch
LCD screen

Active area

108mm(W) X 64.8mm(H)

Resolution

800 X 480 Pixel

Luminance for LCM

200 cd/㎡

Video

Resolution

720*576 / 720*480

Video compress

MPEG-AVI 30fps

Play format

MPEG-AV

Items

Value

Audio

Subcarrier frequency

2.4GHz:6.0MHz; 5.8G-A/B/C:6.5MHz;
5.8G-D/E:6.0/6.5MHz

Earphone Frequency Range

20HZ-20KHz stereo

Earphone Output

Left: 20MW+ right 20mW [16O](suit to
largest volume)

Speaker

1W


Format

JPG/JPEG

Storage

External SD card

TF card 1GB-32GB(optional)

32GB recording time

10-32 hours

1GB photos

15625pcs

Operating system

PC

Windows & Mac OS

Port

USB 2.0

Language

Multiple

Power

Voltage

DC 5V

Current(receiving mode)

660MA

Current( recording mode)

680MA

Current(recording with off-screen mode)

340MA

AC adapter

DC 5V 2A

Built-in battery

Li-battery 3200Mah

Standby time

Wireless record

≥9.5 hours(off-screen); ≥5hours(on-screen)

Wired record

≥12 hours(off-screen); ≥6hours(on-screen) *LED camera not included.

Size (L x W x H)

131mm x 86mm x 18mm

Weight(g)

205g


Basic Information:

  • Wireless Receiving : Built-in 2.4G/5.8G wireless receiving module
  • Channel Switch Supports manual & automatic switch between 8 channels
  • Antenna: Folding hidden external antenna assures excellent wireless receiving.
  • Recording: Supports seamless cycle and continuous video from wired/wireless cameras
  • Battery: Built-in 3200mAh high capacity Li-battery, which continuous record over 10 hours
  • Speaker: Built-in speaker of 1W
  • Storage: Supports up to 32GB TF card
  • Language: Supports multi-language
  • Supports Power-saving Mode: automatic shutdown, automatic off-screen
  • Automatic upgrade: Supports system automatic upgrade
