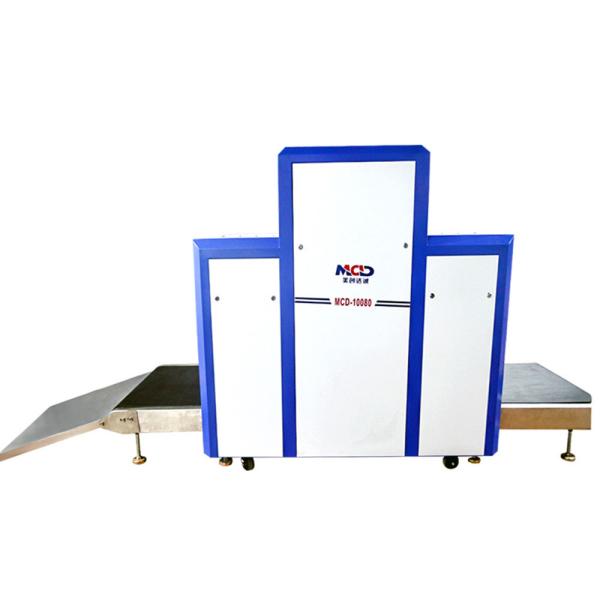

Professional Big Size Unique X Ray Baggage Scanner 1000*1000mm Tunnel Size With PC
Professional Big Size Unique X Ray Baggage Scanner 1000*1000mm Tunnel Size With PC
Specifications
Brand Name :
MCD
Model Number :
MCD-100100
Certification :
ISO , CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T , Western Union , L/C
Supply Ability :
300 set/month
Delivery Time :
Normally within 5 working days
Packaging Details :
Strong Wooden Case
Description

Professional X Ray Baggage Scanner Gun Metal Detector With Conveyor Belt

Product Features:

General Specification
Tunnel Size: 1000(W)*1000(H)mm
Conveyor Speed.......0.22m/s
Conveyor Max Load200kg
Dose per Inspection< 1.6μGy/h
Resolution< 0.0787mm Copper Wire
Spatial resolutionLevel: dia1.3mm, Vertical: dia1.0mm
Penetrate resolutionDia 0.511mm
Penetration34mm Steel

X-ray Generator

Generate direct: Bottom to up
Generate anger: 80 degree
Anode Voltage100~160Kv
Anode power0.4 to 1.2mA
Cooling / Duty CycleOil Cooling /100%

Image System

X-ray SensorL-Shaped Photodiode Array (multi-energetic) , 12bit Deep
MonitorHigh Resolution Color, LCD Accord, 17 inch
Image ProcessingEdge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
Image Grey Level4096
Image Max Resolution:1024 * 1280 pixel
Image Processing24bit for processing real time
Image Storage :60000 pictures in real time
Zones & Zoom1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energe: switch from high energy to low energy
Assist to detect drug and explosive powder


Installation Data

Operation temperature/Humidity 0-45/20%-95%(non-condensing)
Storage Temperature/Humidity -20-60/20%-95%(non-condensing)
Operation Power220VAC(±10%)50±3Hz
Power Consumption1.0 KW (max)
Noise: <58db

Specification :

model MCD-100100
Power wastage 1.0KW(Max)
Noise ＜58 dB
Operating Temperature 0℃～45℃
Storage Temperature -20℃～60℃
