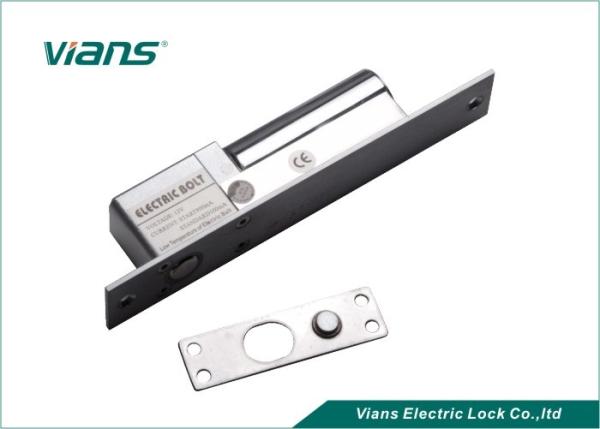

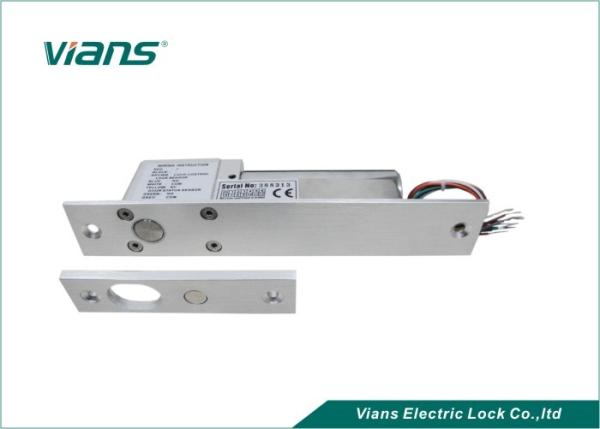

Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates
Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates
Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates
Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates
Specifications
Brand Name :
VIANS
Model Number :
VI-802ST
Certification :
CE/ROHS/FCC/MA
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
30 pcs/cartons
Lock Size :
205 L X 35 W X 40 H(mm)
Strike :
90 L X 25 W X 2 H (mm)
Mounting Bracket :
VI-800L/VI-800U
input Voltage :
DC12V (24V need to customized)
Working Current :
110mA
Application Door :
metal doors, wooden doors, fireproof doors, glass door
Security Type :
Locked when Energized
Signal output :
YES
Time delay :
YES
Weight :
0.72KG
Description

Aluminum Door Standard Bolt Fail Secure Electric Mortise lock, Electric Bolt Lock​

VIANS Electric Deadbolts are an ideal locking mechanism for Access Control applications requiring "Fail
Safe" operation. These Dead-bolts are made out of Heavy duty steel and aluminum. using the
microprocessor chip to control electric circuit, so it decreases the power consumption and really has the
ultralow temperature function. After 500 000 times of test, we can assure you that our locks are more
stable, more environmentally friendly and durable. Electric Bolt lock was designed mainly for glass door,
wooden door and metal door, it is suitable for bidirectional door and sliding door, it is also the best choice
for access control automation management.

Electric Bolt Advantages:

Low Temperature, safe and Durable.

Low Power, Environmental Protection.

Special photoelectricity control

Long Life with 500,000 Operations.

MOV Provides Reverse Current Protection.

Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt.

Double protection for loading current.

Photoelectricity Control, Low Temperature:

A:Low Electric Current changes immediately;
B:When door frame doesn't coincide with door leaf, door leaf against the bolt, the electric bolt will start the low-power function to bring low temperature.

C:Photoelectricity Control Technology, prevent mechanical defect



Product Parameter

Product Parameter Parameter Description
Lock Size 205Lx35Wx40H(mm)
Strike Size 90Lx25Wx2H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 110mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay YES
Signal output NO
Security Type Locked when energized
Weight 0.72KG



Installation drawing

Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates

Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates

Relates Products:

Here is our bolt lock series, Any questions Welcome contact us.

Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates

Exhibtions:

We attend DUBAI INTERSECISC WEST in Las Vegas MIPS RussiaESSEN GermanyCPSE China very
year, welcome you come to visit us :)

Aluminum Electric Drop Bolt Lock Glass Door , Electric Drop Bolt For Gates

FAQ

Q: How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.

Q: How much does it cost to ship to my country?
A: Please tell us your receive goods address, we will check the shipping cost for your reference

Q: Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q: Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!

Q: I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!



For mor informations. Please send us your detail inquiry. VIANS Looking forward to offer our high

products with best service to you!
