Specifications
Brand Name :
Vians
Model Number :
VI-280ASW
Certification :
CE/ROHS/FCC/MA
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after payment confirmed
Packaging Details :
Packed in carton
Lock Size :
210*42*28.5mm
Signal :
Lock signal
Holding force :
280kgs/ 600lbs
Working Watt :
5.52W
Security Type :
Fail-safe
Weight :
2.3Kgs
Private logo :
Available
Description

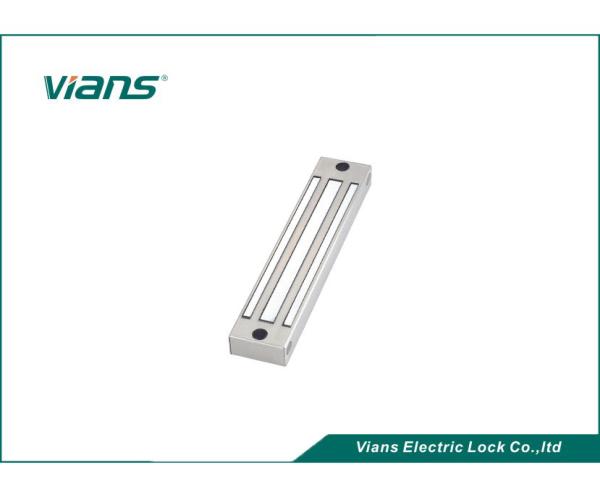

Waterproof 600LBS Electric Magnetic Lock with Lock Signal , 280kgs mag locks

Features of VI-280ASW

  • It comes with a special Led device.
  • Strong waterproof property, which makes it suitable for some special situations.
  • The most popular holding force of 280kgs/ 600Lbs.
  • Lock signal feedback for the purpose of a higher level of access physical control security.
  • Hign quality with certifications of CE/ROHS/FCC/MA.
  • A very simple device to avoid risidual magnetism.
  • High-strength alluminum housing of anodizing finish.
  • Unlocked and locked purely by the attraction of magnet, causing no mechanical failure.
  • Weather resistant for exterior use
  • No moving parts---low maintainance

Product Overview

An electromagnetic lock, magnetic lock, or maglock is a locking device that consists of an electromagnet and an armature plate. An electromagnet is a magnet that is created when a current is moved through a wire with multiple coils around an iron core. The strength of today's magnetic locks compares well with that of conventional door locks and they cost less than conventional light bulbs to operate.

More informations about VI-280ASW

Product Parameter Parameter Description
Size 210*42*28.5mm
Armature Plate Dimension 185*38*12mm
Holding Force 280kg(600Lbs)
Input Voltage 12 or 24VDC
Current 12V/500mA or 24V/250mA
Bracket Selection U Type,L type,ZL type
Surface Temp ≤+20℃
Operating Temp -10~+55℃(14-131F)
Humidity 0~90%(non-condensing)
Signal type output Door status +Lock status signal
Lock Finish Zinc
Armature Plate Finish Zinc
Weight 2.1KG

Certifications of Our Products

Waterproof 600LBS Electric Magnetic Lock with Lock Signal , 280kgs mag locks

FAQ

Q: Do you produce this maglocks by your own factory?
A: Yes, maglocks is one of our pruduction lines. Our factory is located in Dongguan City close to Shenzhen.

Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
