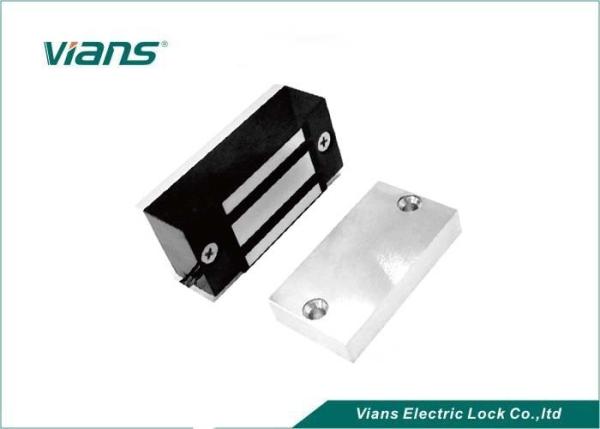

40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
Specifications
Brand Name :
Vians
Model Number :
VI-40A
Certification :
CE/ROHS/FCC/MA
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiation
Payment Terms :
T/T or
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Packed in carton
Lock Size :
80L*41W*25H(mm)
Holding Force :
40kg(90Lbs)
Signal output :
no
Input Voltage :
DC12V or DC24V
Working Current :
12V/220mA 24V/190mA
Operating Temp :
-10~+55℃(14-131F)
weight :
0.5kg
Suitable :
cabinets drawer
Warranty :
3 years
Description

40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets

  • No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
  • MA certified products of China / CE certification of EU.
  • Built-in reverse current protection device (MOV).
  • Shell is made of high-strength aluminum alloy, Anodized.
  • Dual Voltage 12 or 24 VDC(optional).



Specification

Product ParameterParameter Description
Size80L*41W*25H(mm)
Armature Plate Dimension70L*33W*9H(mm)
Holding Force160kg(120Lbs)
Input Voltage12 or 24VDC
Current12V/300mA
Surface Temp≤+20℃
Operating Temp-10~+55℃(14-131F)
Humidity0~90%(non-condensing)
Signal type outputDoor status +Lock status signal
Lock FinishZinc
Armature Plate FinishZinc
Weight0.5KG



Feature

  • With LED
  • Installation type: hanging mounted/surface mounted
  • Operating: fail-safe and locked when energized
  • Unlocking way: unlock when power-off
  • Door type: single door
  • Suitable for wooden, metal, glass, stainless steel and fireproof doors
  • Wiring: PC board mounted terminal block connections
  • Bracket is optional, assembled on hollow door and glass doors
  • Made more secure, lock body adopts two screws on each side
  • Can be used with access control system, building intercom and fire




Installation drawing
40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets
Product mounting bracket

40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets

Wiring

40KG 90LBS Mini Maglock small cabinet lock worked with controller for cabinets


Trade show





FAQ

Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;.

Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
