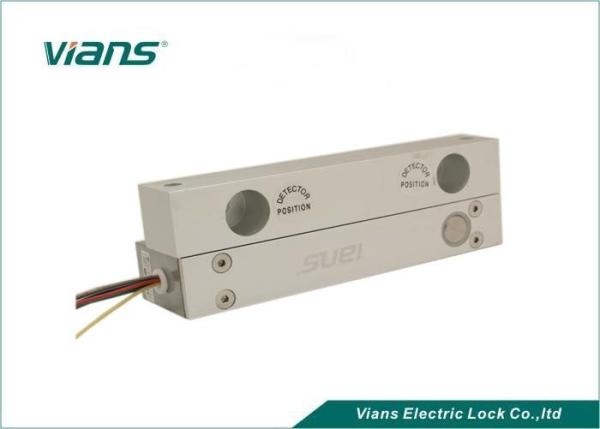

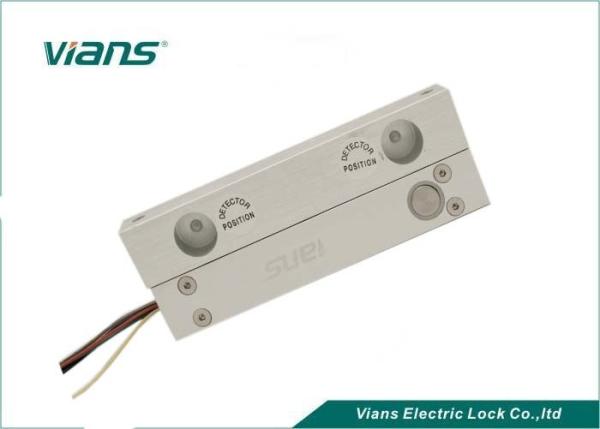

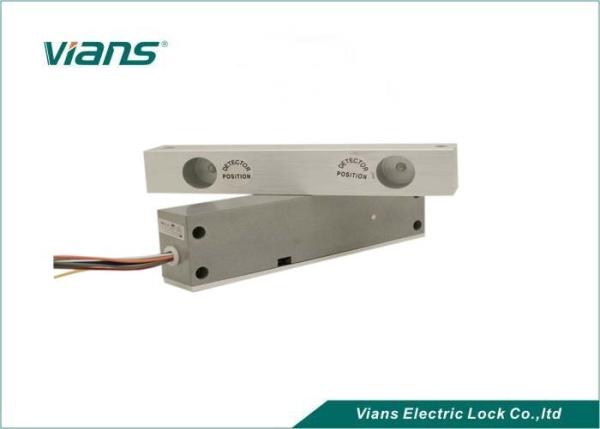

Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door
Specifications
Brand Name :
VIANS
Model Number :
VI-806ST
Certification :
CE/ROHS/FCC/MA
Place of Origin :
China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
T/T or
Supply Ability :
3,000pcs per month
Delivery Time :
7 working days after received your payment
Packaging Details :
30 pcs/cartons
Product Type :
Narrow panel electric bolt lock
Lock Size :
148.5L*24.5W*39H(mm)
Strike :
148.5L*24.5W*2H(mm)
Working current :
80mA
Signal output :
Yes
Security Type :
Locked when energized
Time delay :
0,3,6,9s
Description

Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

VI-806ST works with DC 12V and its lock bolt has self-lock function.There are circuits for door and bolt sensor in the lock which guiding out for sensoring the lock and door working status.the adjusting jumper for time delay set in the middle of the lock,and have 3 choice(0s,3s,6s)
Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

Advantage of the products

> Low Temperature, safe and Durable.

> Low Power, Environmental Protection.

> Special photoelectricity control,three steps current application.

> Long Life with 500000 cycles.

> MOV Provides Reverse Current Protection.

> Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.

> Autolock Time Delay: 0,3,6,9sec.

> Door statue signal output contact(NC.COM).

> Double protection for loading current.

> Auto-relock if no Action within 5 secs.

> Certificate:CE and MA.

> Photoelectricity Control,Low Temperature,

> A:The Low Current is Changed immediately;

> B:When door frame doesn`t coincide with door leaf ,door leaf against the bolt,then the electric bolt will start the low-power function to bring low temperature.

> C:The Photoelectricity Control Technology,prevent the machanical defect.

Product Parameter

Product Parameter Parameter Description
Lock Size 148.5Lx24.5Wx39H(mm)
Strike Size 148.5Lx24.5Wx20H(mm)
Input Voltage DC12V±10%
Start Current 950mA
Working Current 80mA
Door Type Applicable Wooden door , Glass door ,Metal door , Fireproof door
Time Delay 0,3,6,9sec
Signal output YES
Security Type Locked when energized
Weight 0.86KG

Features:


Secure mode: The door will lock while supplied with power, and unlock without power.


Especially suitable for glass doors.


It is made from durable and high aluminium alloy material, durable for use.


Special circuit design, the door will unlock until the power is cut off.


With no external interference, making it more stable and safer.

Installation drawing

Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

Relates Products:

Here is our bolt lock series, Any questions Welcome contact us.

Narrow Drop Bolt Lock with Timer Lock Door Status Detection for Glass Door

Shipping & packing & delivery time

TNT,DHL,FEDEX,UPS,EMS,By sea and so on(multi choices for your need)

Vians brand,Natural Brand,OEM & ODM service just for your like.

Shippment will be arranged within 1-5business days after receive payment

FAQ

Q:How do I pay for my purchase?


A: we accept the following payment methods: cridet card; moneybooker;T/T;.

Q:How much does it cost to ship to my country?


A:Please tell us your receive goods address, we will check the shipping cost for your reference

Q:Is there any tracking Number for my item?

A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.

Q:Does this product come with retail package?

A: We have declared the packing detail on the description of each product, please check it, thank you!

Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?

A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
